Control motor - fresh & recirculated air

Refit

1. Fit heater unit.
2. Connect heater unit to tunnel duct.
3. Fit nuts securing heater to bulkhead.
4. Tighten 6 mm nuts to 10 Nm and 8 mm nut to 22 Nm.
5. Fit stud securing heater to tunnel duct.
6. Fit radio coaxial clips to heater unit fixing studs.
7. Fit SRS harness clips to heater unit.
8. Fit steering column support beam.
9. Tighten 6 mm bolts to 10 Nm and 8 mm bolts to 22 Nm.
10. Align relay bracket and inertia switch to column support beam. Fit and tighten bolts.
11. Fit duct to heater unit and align to blower unit. Fit and tighten bolts.
12. Connect multiplug to duct.
13. Fit fascia assembly. See BODY, Interior trim components.
14. Connect heater hoses to heater matrix and secure with clips.
15. Set the heater control to cold position. set heater valve lever to off or cold position, connect control cable to valve and secure outer cable with clip.
16. Fill cooling system. See COOLING SYSTEM, Adjustments.

CONTROL MOTOR - FRESH & RECIRCULATED AIR

Service repair no - 80.20.10

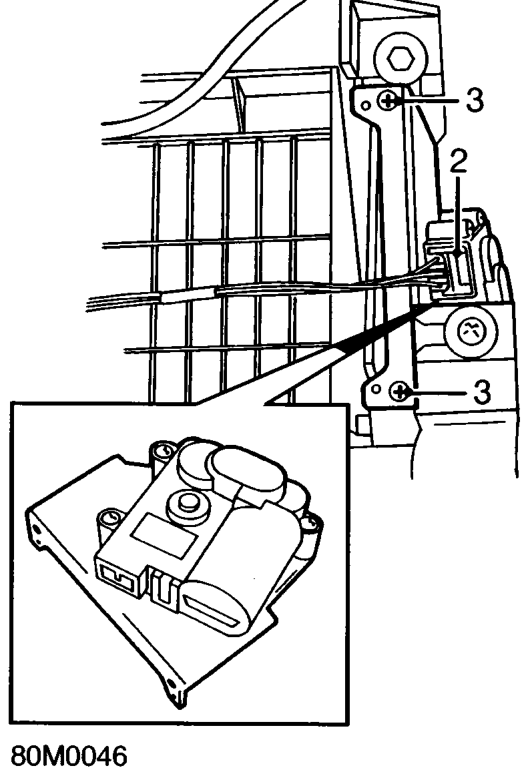

Remove

1. Remove glove box. See BODY, Interior trim components.

2. Disconnect multiplug from motor.
3. Remove 2 screws and remove motor.

Refit

1. Fit motor and secure with screws.

NOTE: Engage motor drive peg with flap lever.

2. Connect multiplug to motor.
3. Fit glove box. See BODY, Interior trim components.
