Heating & ventilationHeater fan switch

HEATER FAN SWITCH

Service repair no - 80.10.22

Remove

  1. Remove front console. See BODY, Interior trim components.
Heater fan switch – Remove front console. See BODY, Interior trim components.

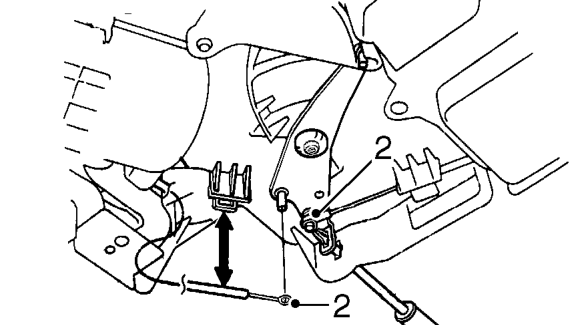

  1. Disconnect air mix and temperature control cables from heater.
Heater fan switch – Disconnect air mix and temperature control cables from heater.

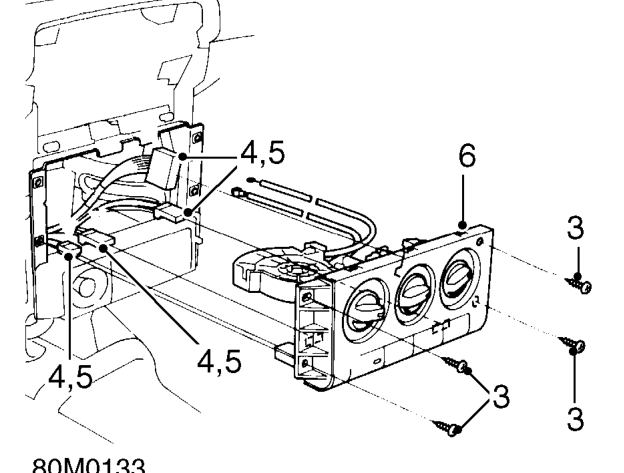

  1. Remove 4 screws securing heater control to fascia and release heater control
  2. Models with heater: Disconnect 3 multiplugs from heater control.
  3. Models with air conditioning: Disconnect 4 multiplugs from heater control.
  4. Remove heater control.
Heater fan switch – Remove heater control.

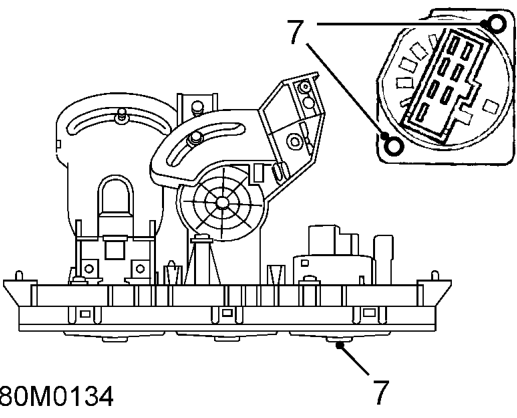

  1. Remove heater switch knob, remove 2 Torx screws and remove switch.

Refit

  1. Fit switch, fit and tighten screws. Fit switch knob.
  2. Position heater control and connect multiplugs. Fit and tighten screws.
  3. Rotate air mix control to cool position, set air mix control lever on heater to cool position and connect inner cable. Secure outer cable to retaining clip.
  4. Set air distribution control to vent position, set distribution lever on heater to vent position and connect inner cable.
  5. Secure outer cable to retaining clip.
  6. Refit front console. See BODY, Interior trim components.
