Control cable - air blend (page 2 of 2)

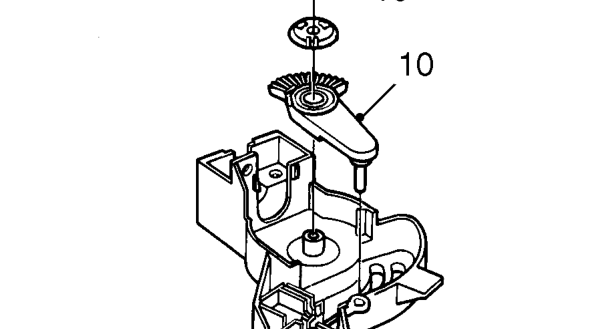

10. Remove Torx screw from control lever and remove lever.

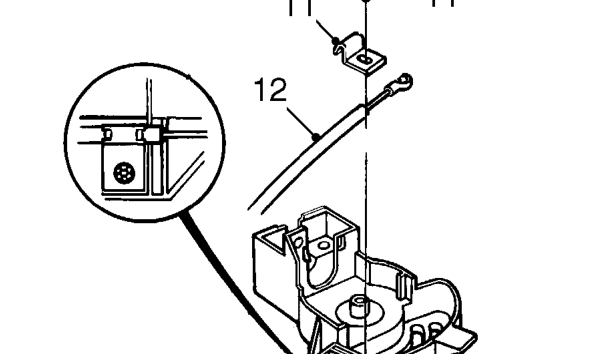

11. Remove screw and clip securing cable.
12. Remove cable.

Refit

1. Position cable, fit clip and tighten screw.
2. Fit control lever, fit and tighten screw.
3. Fit control shaft and base. Fit and tighten screws.
4. Fit cable control, fit and tighten screws and fit control knob.
5. Position heater control and connect multiplugs. Fit and tighten screws.
6. Set air mix control to cool position, set air mix control to cool position and connect inner cable. Secure outer cable to retaining clip.
7. Set air distribution control to vent position, set distribution lever on heater to vent position and connect inner cable.
8. Secure outer cable to retaining clip.
9. Refit front console. See BODY, Interior trim components.
