Rover Rover 600 Repair Manual - Volumes 1 and 2 - 2nd Edition17 · Heating and ventilation
17 · Heating & A/C

Caution: (page 5 of 5)

Make
Rover
Model
600 Rover 600 Repair Manual - Volumes 1 and 2 - 2nd Edition
Section
Information
Heating and ventilationCaution: · page 5 of 5

Caution: (page 5 of 5) – diagram from the Heating and ventilation chapter of the Rover Rover 600 Repair Manual - Volumes 1 and 2 - 2nd Edition factory manual.

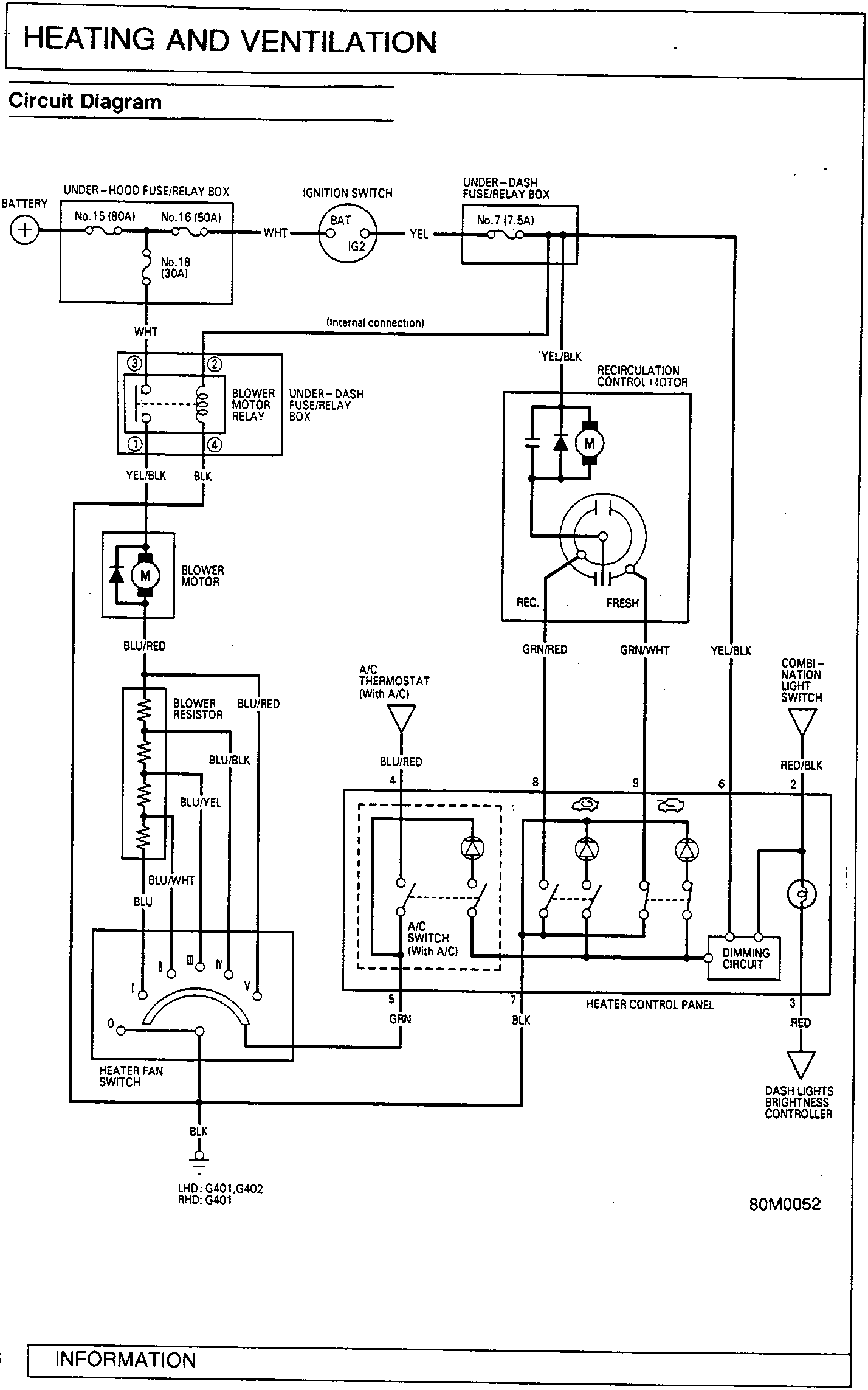

Schematic circuit diagram for the heating and ventilation system showing connections between battery, fuses, relays, blower motor, recirculation control motor, heater control panel, and switches.
80M0052

LHD: G401,G402
RHD: G401
