Airbag assembly disposal (page 2 of 3)

A Airbag B SRS unit C Mounting nuts 4. Remove the three SRS unit mounting nuts from the airbag assembly, then remove the SRS unit.

A Airbag assembly B SRS disposal bracket C Inflator wire 5. Install the SRS Disposal Bracket SMD 4082 on the airbag assembly, and clamp it firmly into a vice. WARNING: Confirm that the airbag assembly is securely clamped or mounted; otherwise, severe personal injury could be caused by the deployment. Note: Instead of using the SRS Disposal Bracket, the airbag assembly may be reinstalled to the steering wheel. 6. Cut off the airbag connector, then strip the wire ends.

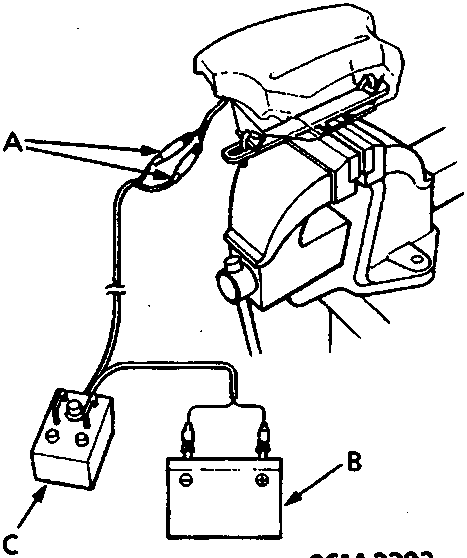

A Crocodile clips (YELLOW) B 12 volt battery C Deployment tool 7. Confirm that the Deployment Tool is functioning properly, see Check Procedure. 8. Connect the crocodile clips to the inflator wire ends. WARNING: The distance between deployment tool and airbag assembly has to be at least 10 meters (30 ft).
