Airbag assembly disposal (page 3 of 3)

9. Remove the passenger's airbag assembly.

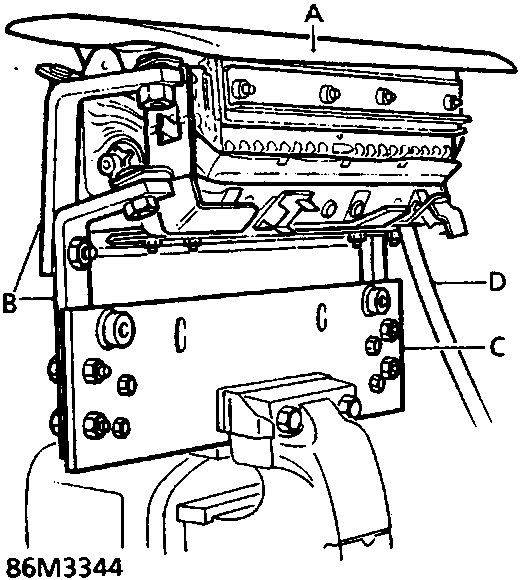

1. A Passenger's airbag assembly
2. B Adaptor brackets – SMD 4082/9-1 and 9-2, SMD 4082/10-1 and 10-2
3. C SRS disposal bracket – SMD 4082/6
4. D Inflator harness
10. Firmly clamp the SRS Disposal Bracket SMD 4082 firmly into a vice.
11. Fit the adaptor brackets to the disposal bracket and secure the passenger's airbag assembly to the brackets.

Note: The adaptor brackets are handed:
RH drive; /10-1 and /10-2 to left side, /9-1 and /9-2 to right side.
LH drive; /9-1 and /9-2 to left side, /10-1 and /10-2 to right side.

WARNING: Confirm that the airbag assembly is securely mounted; otherwise, severe personal injury could be caused by the deployment.

Note: Instead of using the SRS Disposal Bracket, the airbag assembly may be reinstalled on the steering wheel.

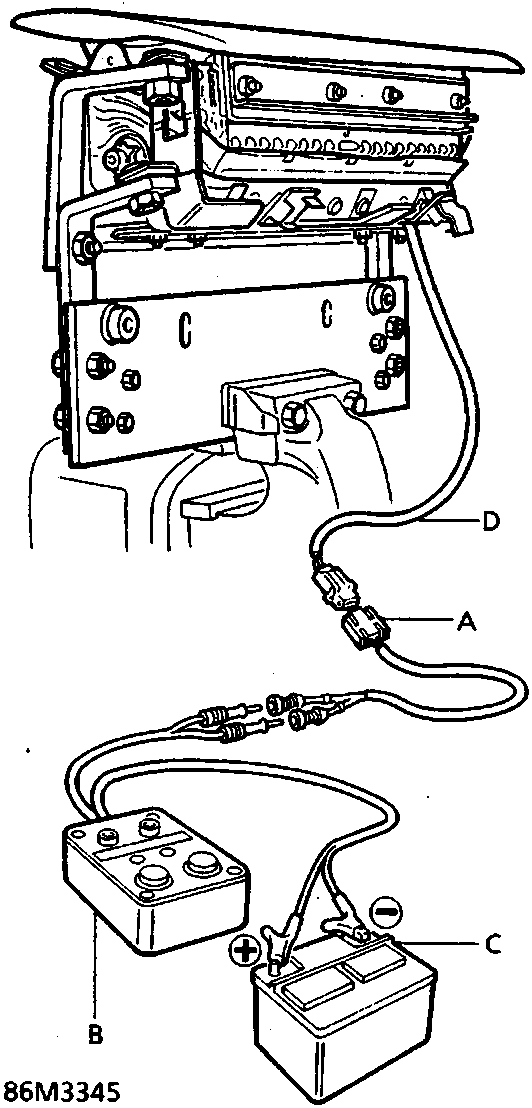

1. A Deployment flylead – SMD 4082/4
2. B SRS disposal tool – SMD 4082/1
3. C 12 volt battery
4. D Inflator harness
12. Confirm that the Deployment Tool is functioning properly, see Deployment Tool Check Procedure.
13. Connect the deployment flylead SMD 4082/4 to the airbag inflator harness.

WARNING: The distance between deployment tool and airbag assembly has to be at least 10 metres (30 ft).

14. Connect the flylead to the deployment tool SMD 4082/4
