Description and operation › Rear screen washer components
Wipers and washersRear screen washer components

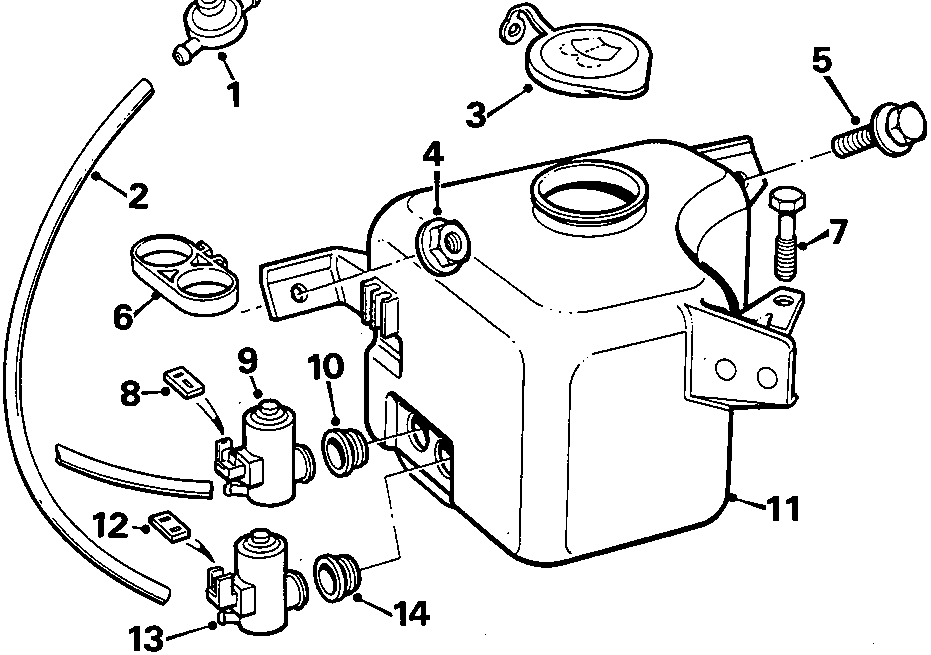

Exploded view diagram of the rear screen washer components, including reservoir, pumps, tubes, and connectors, with numbered callouts 1 through 14.

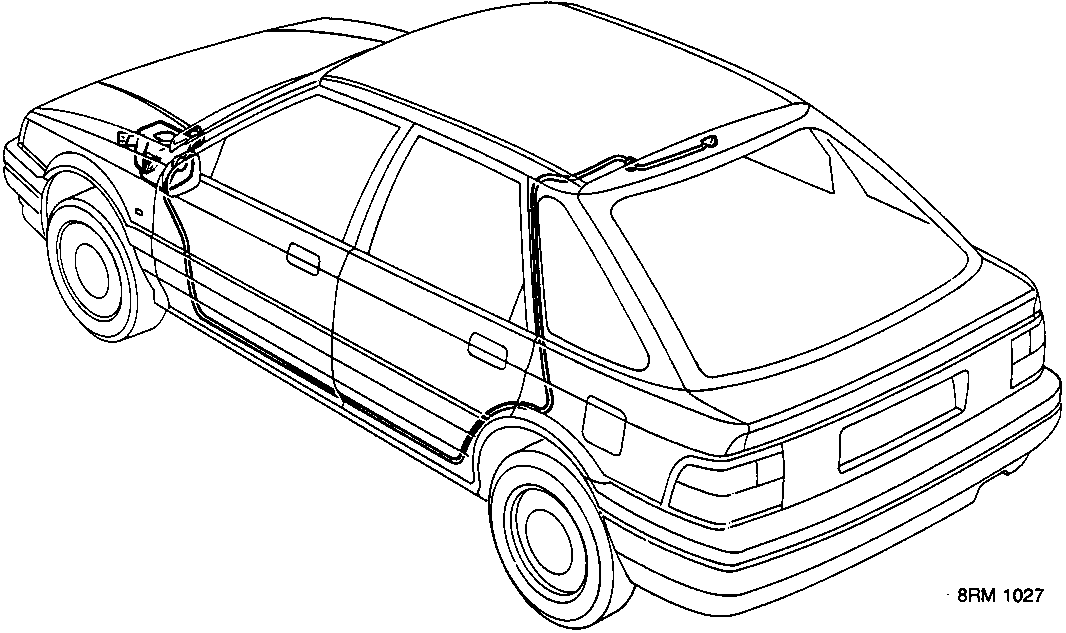

Line drawing of a car showing the routing of the rear screen washer tube from the reservoir to the rear wiper area.

REAR SCREEN WASHER COMPONENTS

  1. Non - return valve
  2. Washer tube
  3. Reservoir cap
  4. Nut - reservoir
  5. Bolt - reservoir
  6. Retainer clip - pumps
  7. Bolt - reservoir
  8. Harness connector
  9. Pump - windscreen washer
  10. Seal - reservoir
  11. Reservoir
  12. Harness connector
  13. Pump - rear screen washer
  14. Seal - reservoir
