Wipers and washersWindscreen washer components – 200 series

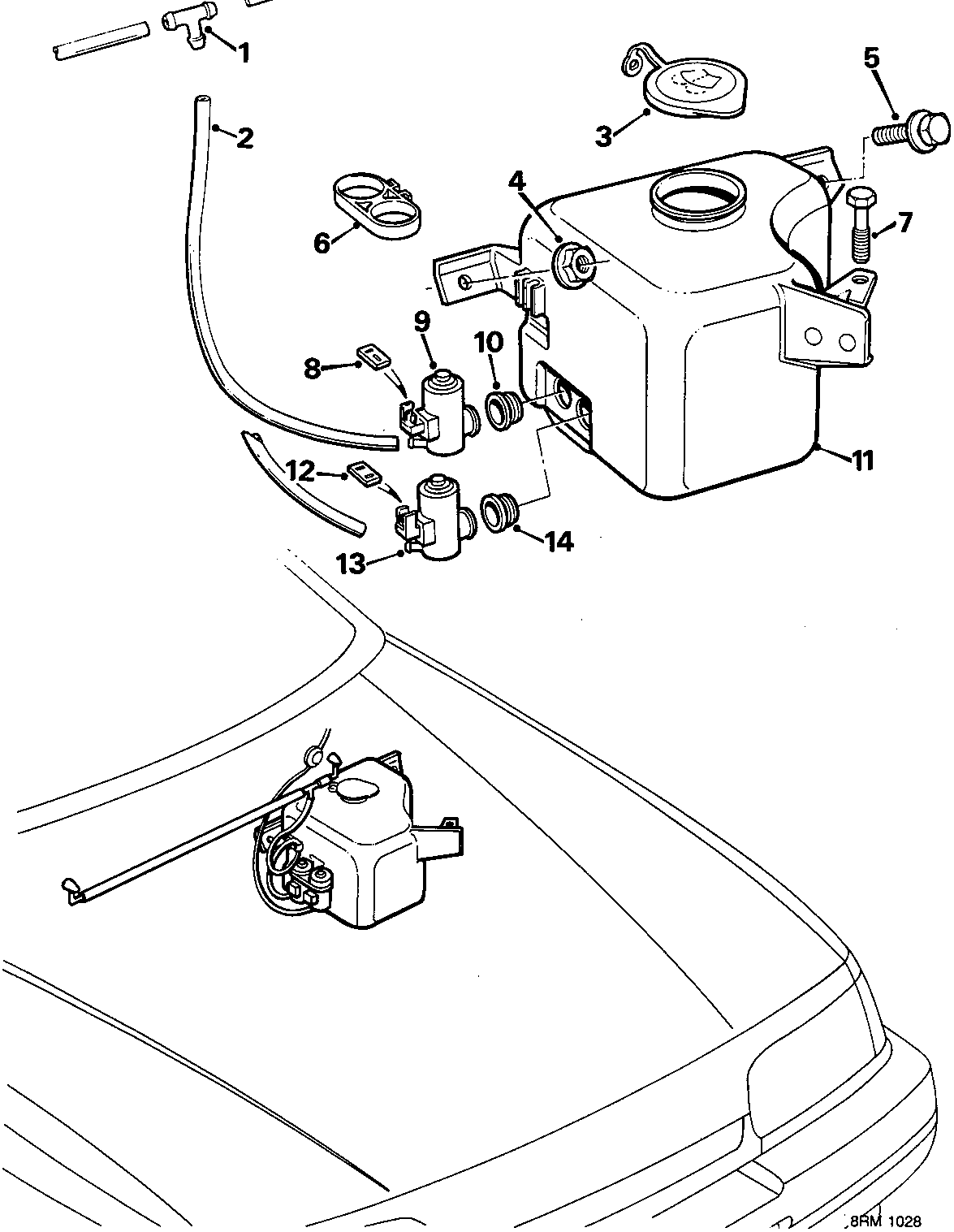

Exploded view diagram of the windscreen washer system components, including reservoir, pumps, tubes, and connectors, mounted on a vehicle body panel.

WINDSCREEN WASHER COMPONENTS – 200 SERIES

  1. Tee – connector – washer tube
  2. Washer tube
  3. Reservoir cap
  4. Nut – reservoir
  5. Bolt – reservoir
  6. Retainer clip – pumps
  7. Bolt – reservoir
  8. Harness connector
  9. Pump – windscreen washer
  10. Seal – reservoir
  11. Reservoir
  12. Harness connector
  13. Pump – rear screen washer
  14. Seal – reservoir
