Wipers and washers (Remove): Description and operation

Make
Rover
Model
Coupé, Cabriolet & Tourer 200/400 Coupé, Cabriolet & Tourer Workshop Manual
Section
Description and operation › Remove
Wipers and washersRemove

Service Repair No. 84.15.34

Remove

  1. Remove steering wheel and nacelle but leave column switches on steering column, see STEERING – Repairs.

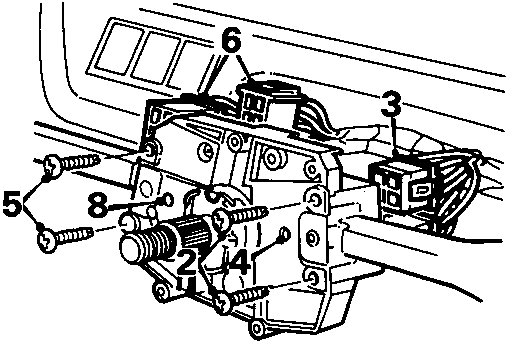

Diagram of column switch assembly showing numbered components 2, 3, 4, 5, 6, 8

Wash/wiper switch

  1. Remove 2 screws securing wash/wiper switch.
  2. Disconnect multiplug from wash/wiper switch.
  3. Press locating peg and remove wash/wiper switch assembly.

Lighting switch

  1. Remove 2 screws securing light switch.
  2. Disconnect multiplug from light switch.
  3. Disconnect horn earth contact.
  4. Press locating peg and remove light switch.

Refit

Wash/wiper switch

  1. Position wash/wiper switch and locate peg.
  2. Fit and tighten screws.
  3. Connect multiplugs to switches.

Lighting switch

  1. Position light switch and locate peg.
  2. Connect horn earth contact.
  3. Fit and tighten screws.
  4. Connect multiplugs to switches.
  5. Refit steering wheel and nacelle, see STEERING – Repairs.

WIPER MOTOR – WINDSCREEN

Service Repair No. 84.15.12

Remove

  1. Remove wiper arms, see Windscreen Wiper Arm and Blade.

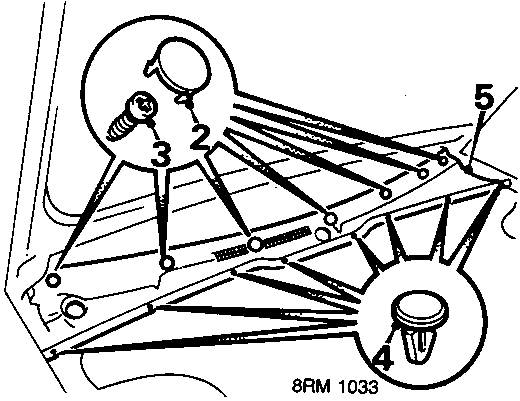

Diagram of plenum air intake area showing numbered components 2, 3, 4, 5
  1. Remove 7 caps from plenum air intake retaining screws.
  2. Remove 7 screws retaining plenum air intake.
  3. Remove 8 clips retaining plenum air intake.
  4. Remove plenum air intake.

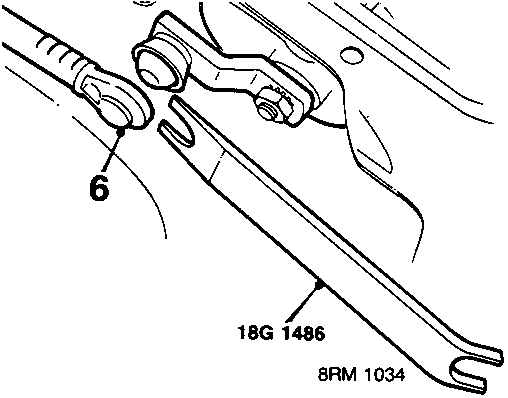

Diagram showing tool 18G 1486 disconnecting wiper linkage at component 6
  1. Disconnect wiper linkage from motor arm using tool 18G 1486.

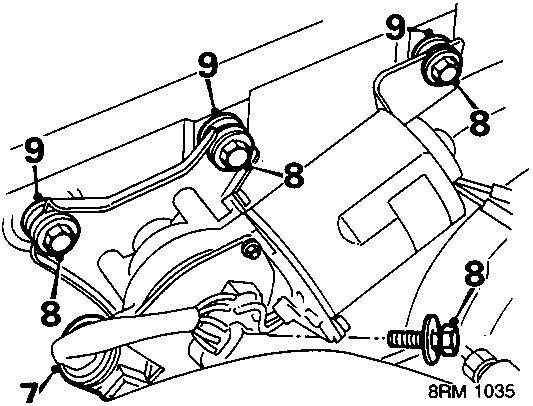

Diagram of wiper motor mounting showing bolts 8, grommets 9, and linkage 7
  1. Disconnect multiplug connector from harness.
  2. Remove 4 bolts securing motor and remove motor assembly.
  3. Remove 4 mounting grommets from motor.
