Description and operation › Windscreen washer components – 400 series
Wipers and washersWindscreen washer components – 400 series

WINDSCREEN WASHER COMPONENTS – 400 SERIES

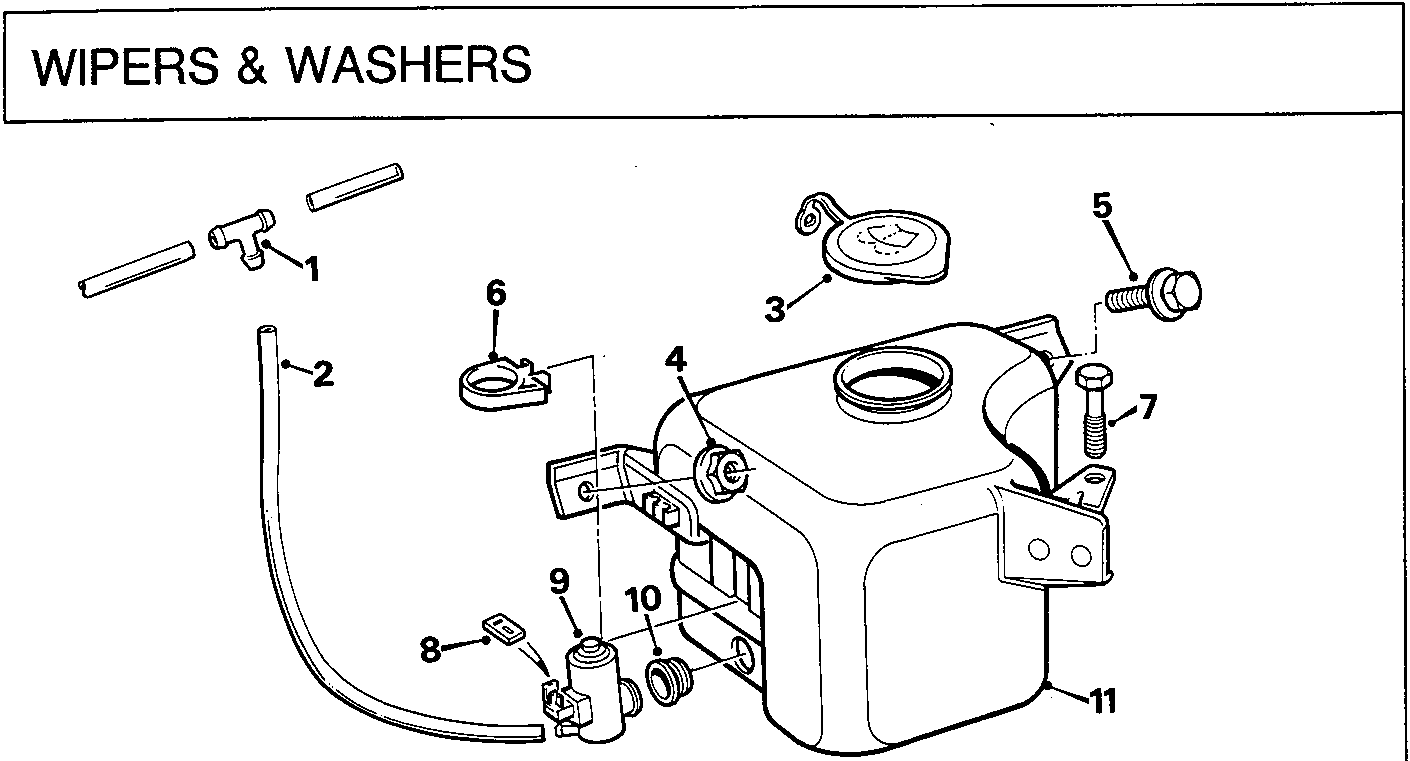

Exploded view diagram of the windscreen washer reservoir, pump, and associated tubing with numbered callouts 1 through 11.
  1. Tee - connector - washer tube
  2. Washer tube
  3. Reservoir cap
  4. Nut - reservoir
  5. Bolt - reservoir
  6. Retainer clip - pumps
  7. Bolt - reservoir
  8. Harness connector
  9. Pump - windscreen washer
  10. Seal - reservoir
  11. Reservoir

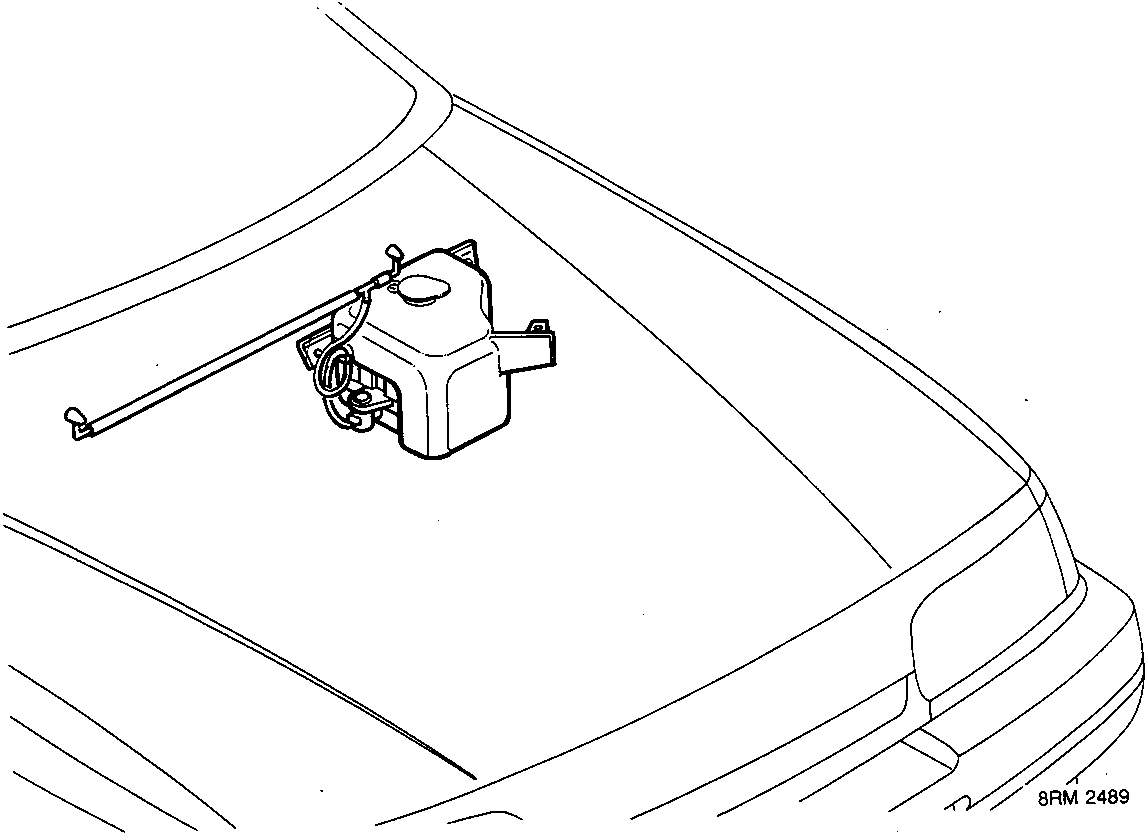

Diagram showing the location of the windscreen washer reservoir assembly on the vehicle body panel.
