Rear screen wiper and washer operation (Wipers and washers)

REAR SCREEN WIPER AND WASHER OPERATION

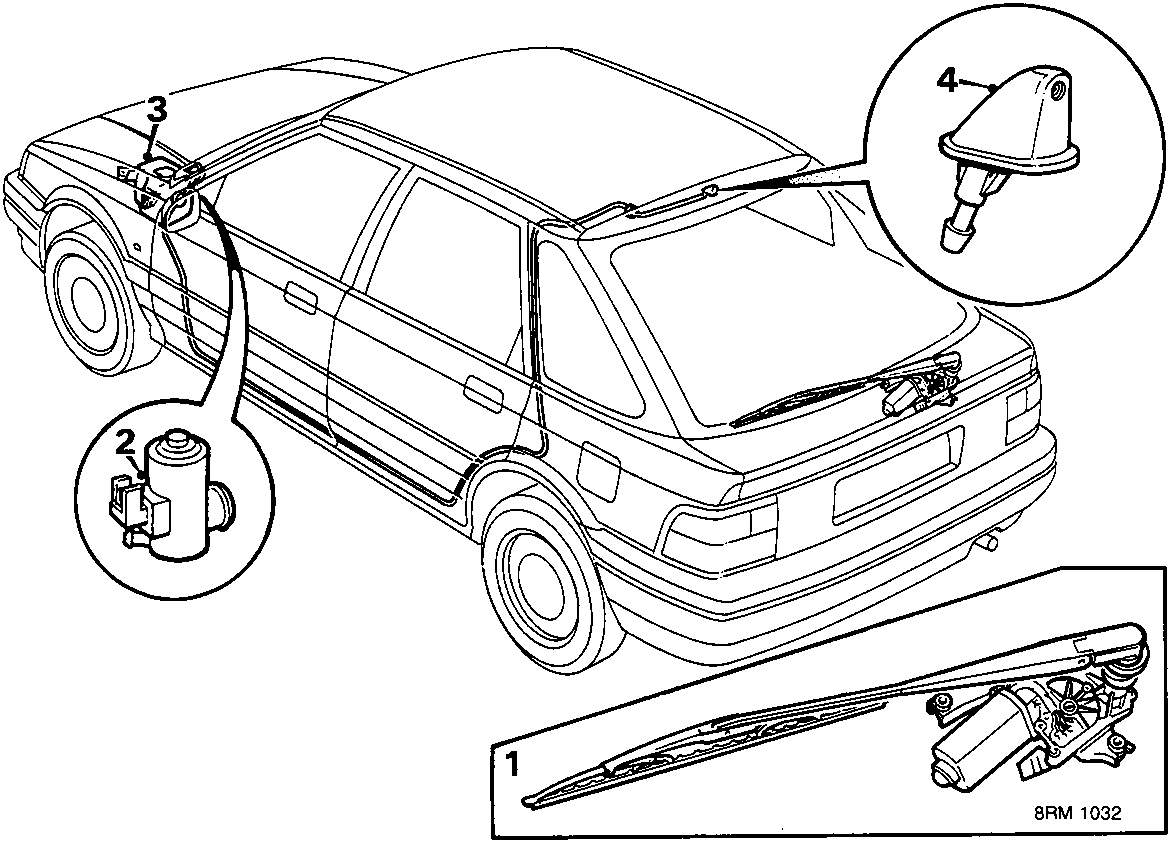

The rear screen wiper (1) will operate by rotating the rear wash/wiper switch mounted at the R.H. side of the steering column, to the ON position, further movement will operate the washer. The washer pump (2) will draw washer fluid from the reservoir (3) and spray on the rear screen through a jet (4) until the switch is released. After the washer switch is released, the wipers will operate for eight seconds and then wipe intermittently until switched off. If the switch is rotated forward the washer will operate until the switch is released and the wipers will operate for eight seconds and then switch off.
