Rover 200/400 Coupé, Cabriolet & Tourer Workshop Manual25 · Wipers and washers
25 · Electrical

Rear screen wiper components (Wipers and washers)

Make
Rover
Model
Coupé, Cabriolet & Tourer 200/400 Coupé, Cabriolet & Tourer Workshop Manual
Section
Description and operation › Rear screen wiper components
Wipers and washersRear screen wiper components

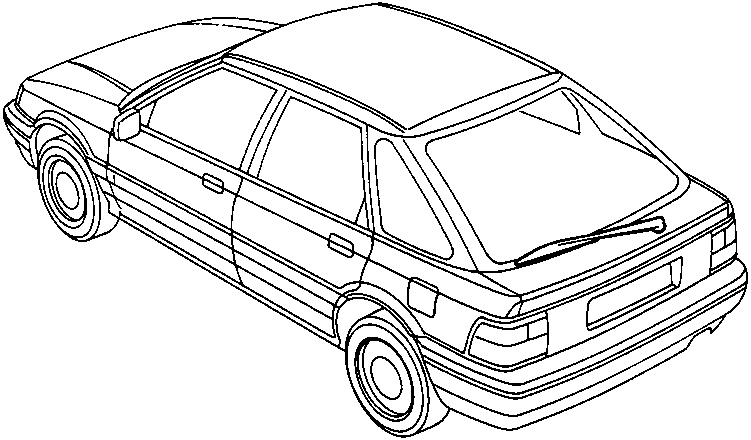

Line drawing of the rear three-quarter view of a car showing the rear wiper blade on the tailgate
Exploded line drawing of a small cover component and its retaining nut, numbered 1 and 2

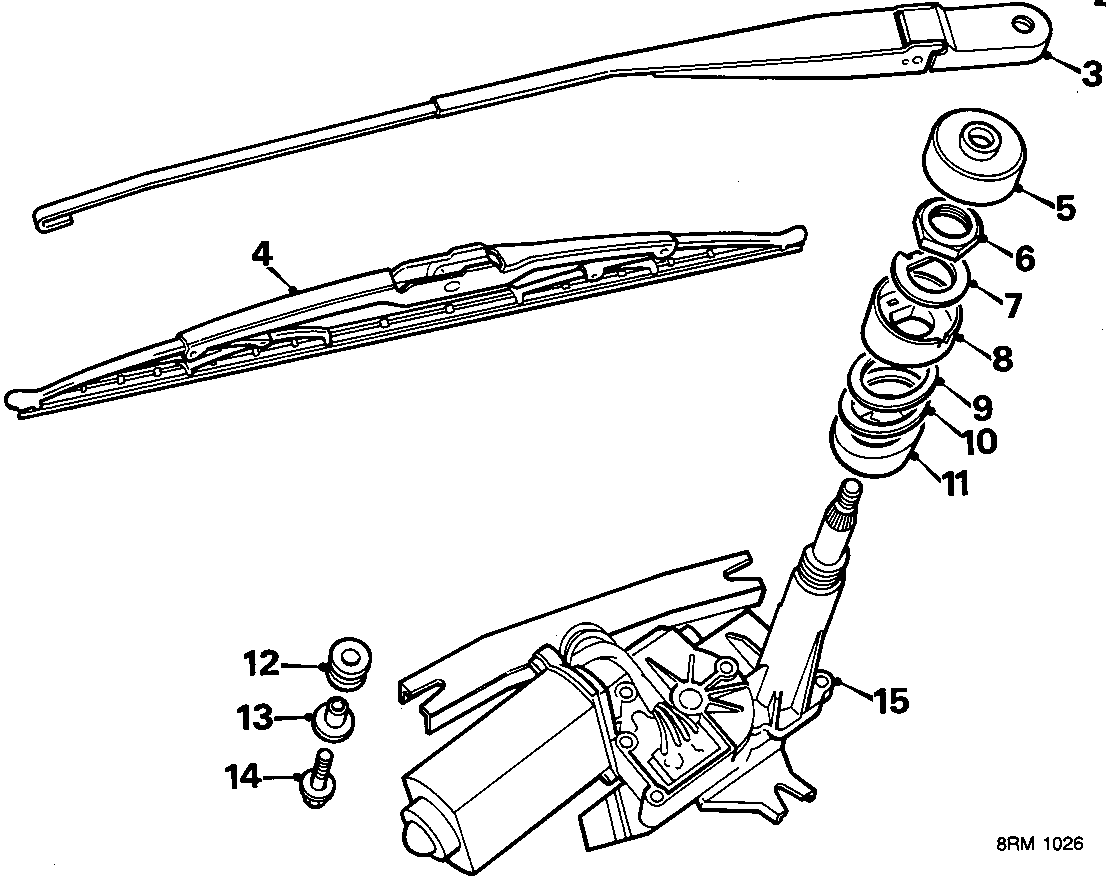

Exploded line drawing of the rear wiper assembly showing the arm, blade, spindle components, and motor unit with numbered callouts 3 through 15

REAR SCREEN WIPER COMPONENTS

1. Cover – retaining nut9. Spacer – spindle
2. Nut – wiper arm10. Seal – spindle
3. Wiper arm11. Spacer spindle
4. Wiper blade12. Mounting rubber – wiper motor
5. Cover – spindle nut13. Ferrule – mounting
6. Spindle nut14. Bolt – wiper motor
7. Locating washer15. Wiper motor
8. Locating washer cover
