Sunroof Housing Front Drain Hose Replacement

Make

Vauxhall

Model

Astra J

Section

Sunroof › Repair Instructions › Sunroof Housing Front Drain Hose Replacement

RoofSunroof Housing Front Drain Hose Replacement

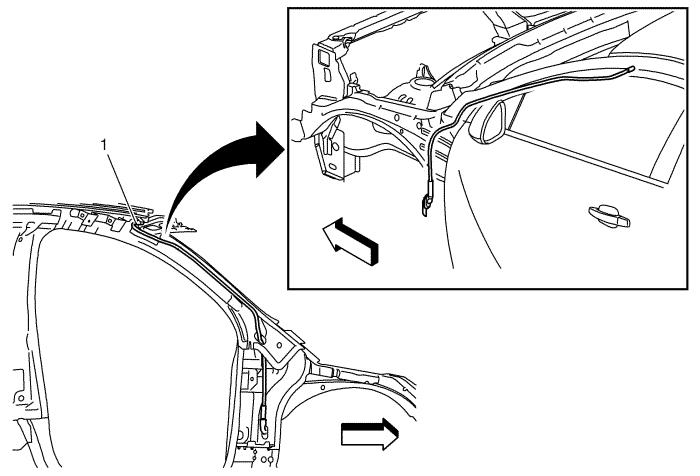

Sunroof Housing Front Drain Hose Replacement Callout Component Name Preliminary Procedures 1. Remove the headlining trim panel. Refer to . Headlining Trim Panel Replacement 2. Remove the front wheelhouse liner. Refer to . Front Wheelhouse Liner Replacement 1 Sunroof Housing Front Drain Hose Procedure 1. Remove the sunroof housing front drain hose from the sunroof assembly. 2. Remove the rubber grommet from the front wheelhouse. 3. Draw the front drain hose out of the A-pillar. 4. Separate the rubber grommet from the front drain hose. Tip It is only necessary to lower the headlining trim panel in the front area.
