RoofSunroof Window Motor Replacement
Sunroof Window Motor Replacement

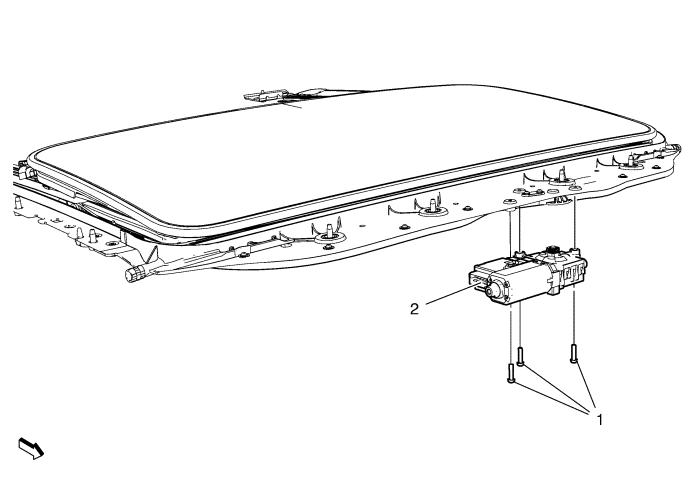

Callout
|
Component Name
|
Preliminary Procedures
It is only necessary to lower the headliner. Only perform the steps
in the headliner replacement procedure that will lower the
headliner enough to gain access to the part. Refer to
Headlining Trim Panel Replacement .
|
1
|
Sunroof Window Motor Bolt (Qty: 3)
Caution: Refer to
Fastener Caution .
Tighten
4 N·m (36 lb in)
|
2
|
Sunroof Window Motor
Procedure
Disconnect the electrical connector.
|
|
| |
|
|
