Sunroof Housing Rear Drain Hose Replacement

Make

Vauxhall

Model

Astra J

Section

Sunroof › Repair Instructions › Sunroof Housing Rear Drain Hose Replacement

RoofSunroof Housing Rear Drain Hose Replacement

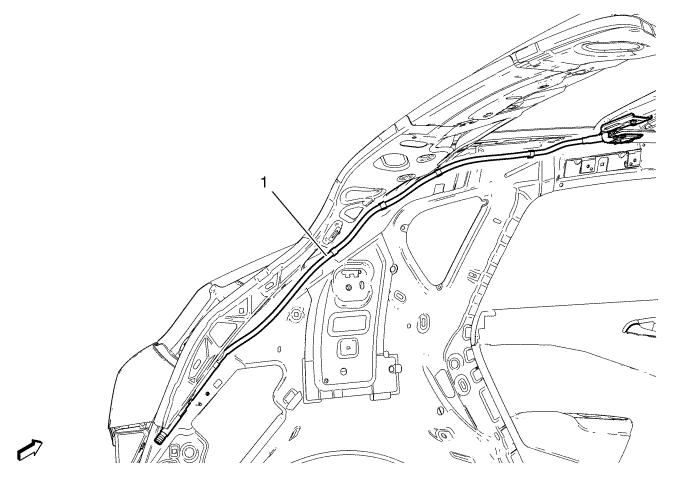

Sunroof Housing Rear Drain Hose Replacement Callout Component Name Preliminary Procedures Remove the headlining trim panel. Refer to Headlining Trim Panel Replacement . 1 Sunroof Housing Rear Drain Hose Procedure 1. Remove the sunroof housing rear drain hose from the sunroof assembly. 2. Remove the rubber grommet from the tail lamp pocket. 3. Draw the rear drain hose out of the C-pillar. 4. Separate the rubber grommet from the rear drain hose. Tip It is only necessary to lower the headlining trim panel.
