Sunroof Sunshade Replacement

Make

Vauxhall

Model

Astra J

Section

Sunroof › Repair Instructions › Sunroof Sunshade Replacement

RoofSunroof Sunshade Replacement

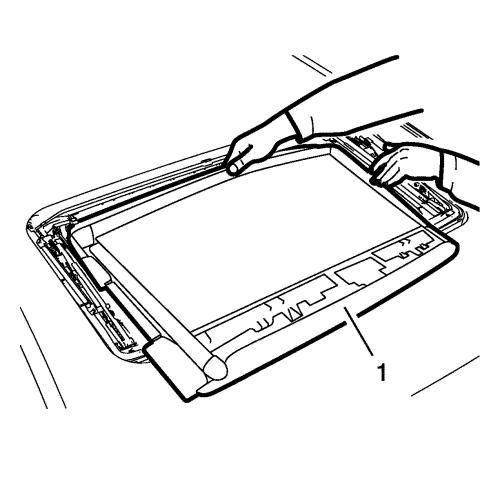

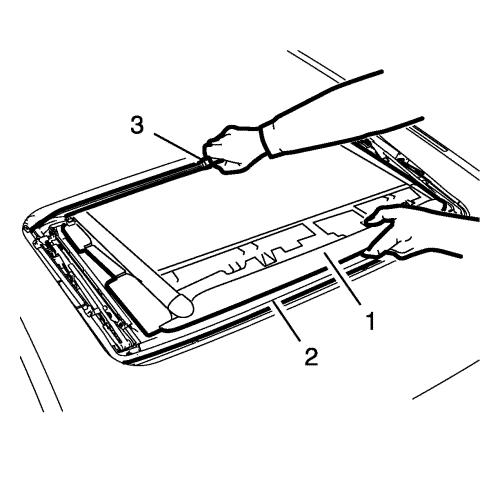

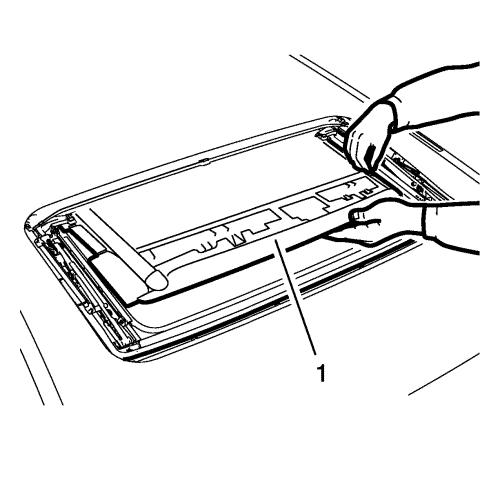

Sunroof Sunshade Replacement Removal Procedure 1. Remove the sunroof window. Refer to Sunroof Window Replacement .            2. Bend the sunroof sunshade (1) in the front center upwards and take the slider out of the guide rail on one side.            3. Slide the sunroof sunshade (1) above the air deflector (2) and watch for the damper (3) at the gutter.            4. Bend the sunroof sunshade (1) in the rear center upwards and take the slider out of the guide rail on one side. 5. Remove the sunroof sunshade. Installation Procedure 1. Install the sunroof sunshade, be careful when pushing the slider into the guide rail. 2. Bend the sunroof sunshade in the rear center downwards and put the slider into the guide rail on one side. 3. Slide the sunroof sunshade above the air deflector and watch for the damper at the gutter. 4. Bend the sunroof sunshade in the front center downwards and put the slider into the guide rail on one side. 5. Install the sunroof window. Refer to Sunroof Window Replacement .
