Steering Linkage Outer Tie Rod Replacement (Power Steering System)

Make

Vauxhall

Model

Astra J

Section

Power Steering System › Repair Instructions › Steering Linkage Outer Tie Rod Replacement

SteeringSteering Linkage Outer Tie Rod Replacement

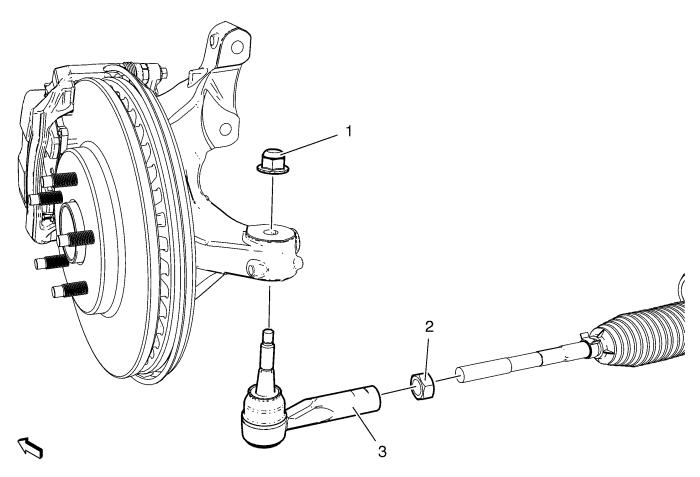

Steering Linkage Outer Tie Rod Replacement Callout Component Name Preliminary Procedure Remove the tire and wheel assembly. Refer to Tire and Wheel Removal and Installation . 1 Steering Linkage Tie Rod Nut Caution: Refer to Fastener Caution . Tighten 35 N·m (26 lb ft) 2 Steering Linkage Inner Tie Rod Nut Tighten 60 N·m (44 lb ft) 3 Steering Linkage Outer Tie Rod Procedure 1. Use CH-161-B puller to separate the steering linkage outer track rod from the steering knuckle. 2. Inspect the steering linkage inner tie rod for bent or damaged threads. 3. Clean the tapered surface of the steering knuckle. 4. Check and adjust wheel alignment. Refer to . Wheel Alignment Measurement 5. Center the steering angle sensor. Refer to . Steering Angle Sensor Centering Special Tools CH-161-B   Puller For equivalent regional tools, refer to Special Tools .
