Holding Fixture Removal

Make

Vauxhall

Model

Astra J

Section

Manual Transmission - F17-5 › Repair Instructions - Off Vehicle › Holding Fixture Removal

Transmission/TransaxleHolding Fixture Removal

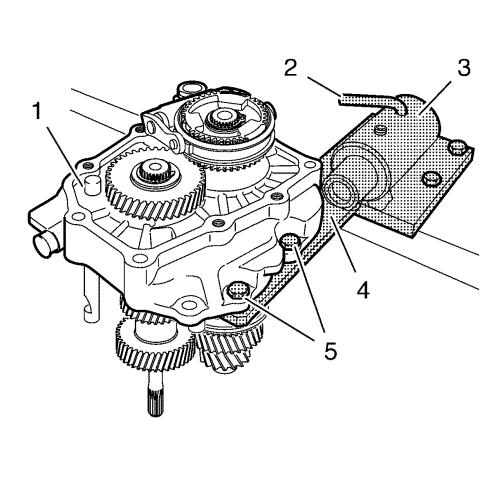

Holding Fixture Removal Special Tools •  DT-552   Installer •  DT-113-2-A   Holding Fixture Base For equivalent regional tools, refer to Special Tools .            1. Remove the lock pin (2). 2. Remove the DT-552   installer assembled with the transmission case (1) from DT-113-2-A   holding fixture base (3). Note:  Shift the transmission into reverse gear. 3. Remove the transmission case (1) from the DT-552   installer (4). 4. Remove the bolts (5).
