Headlamp washer

Design and Function

Applies to: 2003–2013, 2013–2016

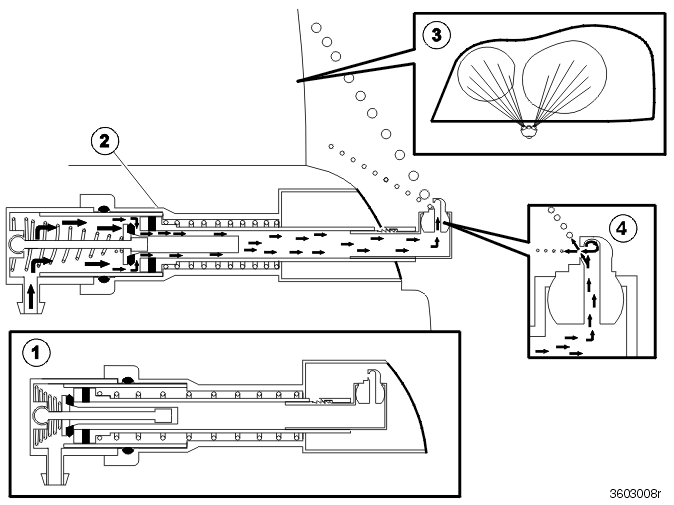

Washing

1. Washing off
2. Washing on
3. Spray pattern
4. Washer nozzle.

The XC90 has a system to clean the headlamp lenses. This is telescopic with double nozzles installed in the bumper under each headlamp.

Function

• Each telescopic arm consists of a hollow piston which runs inside a cylinder
• When washing, the pressure of the washer fluid presses the piston out
• When the piston is in the deployed position, a relief valve opens and the fluid can move into the nozzle
• When the pressure drops again, a return spring returns the piston into the cylinder
• The washer nozzle has a unique spray pattern
• The telescopic arm has a stroke of 120 mm
• Color coordinated covers lie over the bumper in the resting position.

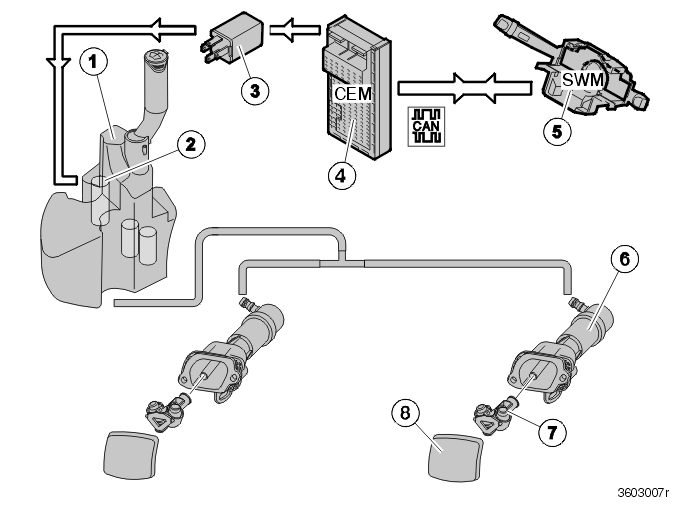

System overview

1. Windshield washer reservoir
2. Pump
3. Relay
4. Central electronic module (CEM)
5. Steering wheel module (SWM)
6. Telescopic arm
7. Washer nozzle
8. Cover.

Pump

An electrical centrifugal pump increases the pressure of the fluid in the system. The windshield washer fluid presses the pistons out and then flows out through the nozzles and cleans the headlamps.

• The pump is on the windshield washer reservoir at the pumps for the front and rear windshields
• The motor is activated for 1 second for each wash
• Maximum pump pressure = 4 bar
• Output: 180 W.

Washing

Approximately 1 dl of washer fluid is used for each wash.

The capacity of the windshield washer reservoir is 6.5 liters.
