Lighting

Design and Function

Applies to: 2003–2013, 2013–2016

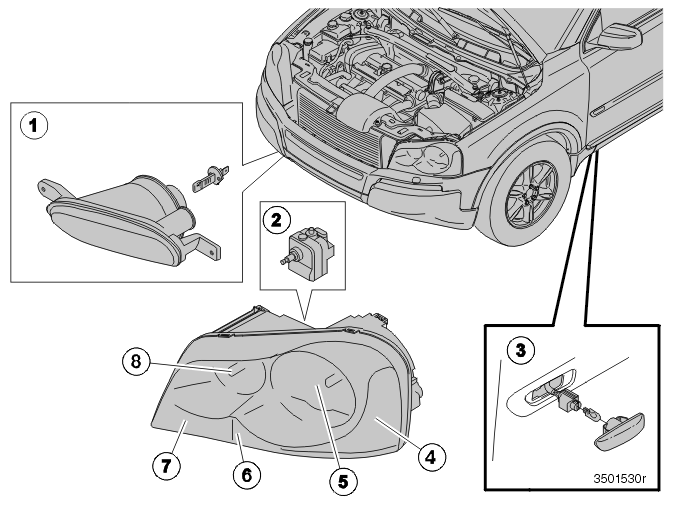

Front lighting

1. Fog lamps
2. Motor, headlamp range adjustment
3. Side turn signal flashers
4. Sidemarker lamps
5. Low beam
6. Parking lamps
7. Turn signal lamps
8. High beam.

Front lighting

Unique to this design is that the entire headlamp housing can be removed. The entire headlamp housing is removed to replace the headlamp and bulbs.

• The lens is made of clear plastic
• There are separate reflectors for high and low beam
• Integrated turn signal lamps and parking lamps
• Headlamp range adjustment is as before.

Bi-xenon

Available as a factory option.

See Design and Function, Central Electronic Module (CEM) and Design and Function, Rear Electronic Module (REM).

Fog lamps

Positioned in the bumper.

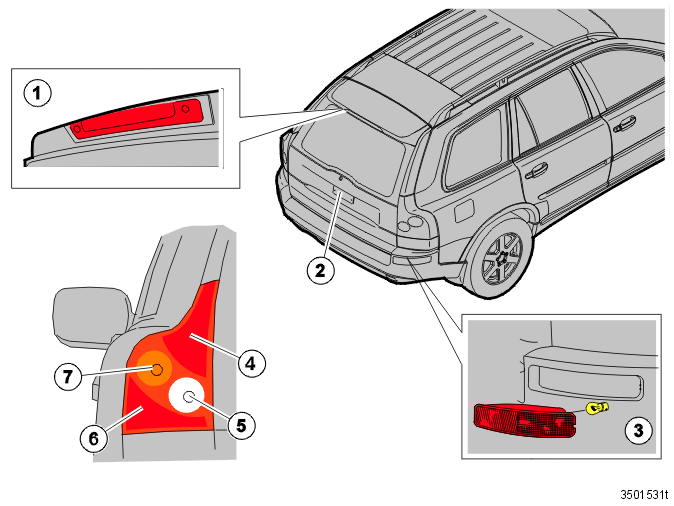

Tail lamps

1. Stop lamp (LED)
2. License plate lighting
3. Fog tail lamp (Parking lamps, USA)
4. Stop lamps
5. Back-up (reversing) lamp
6. Parking lamps (Fog tail lamp, USA)
7. Turn signal lamps.

Tail lamps

A new design where the entire tail lamp can be detached when changing bulbs.

• High mounted stop lamp in the spoiler
• The fog tail lamp is integrated in the bumper. (Parking lamps, USA)
• A new type of bulb has been introduced. Two wire (4/P21W).
