Central Electrical Unit Engine Compartment (Body Control Module) (page 40 of 41)

Make

Volvo

Model

XC90 AWD

Engine

L6-2.9L Turbo VIN 91 B6294T

Year

2004

Section

Relays and Modules - Computers and Control Systems › Body Control Module › Service and Repair

Relays and ModulesCentral Electrical Unit Engine Compartment · page 40 of 41

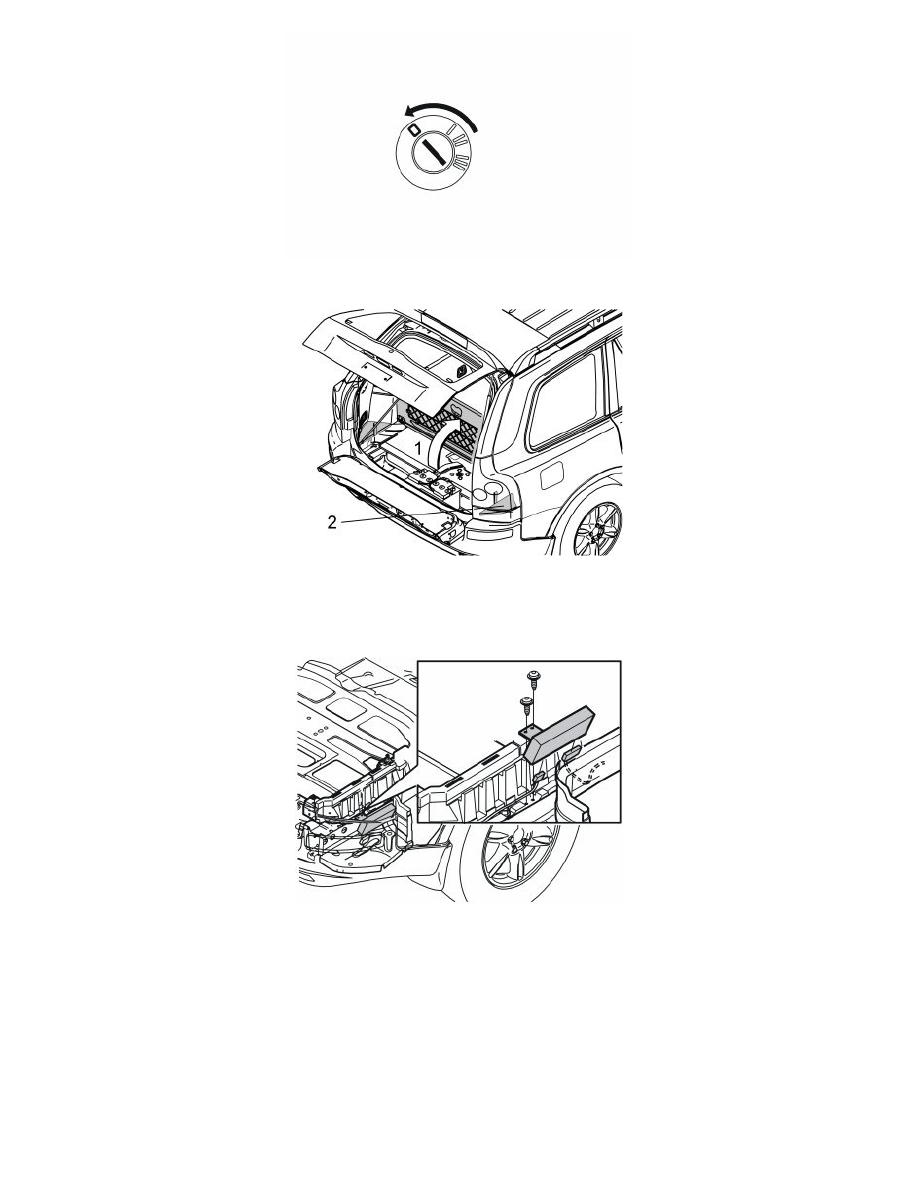

Ignition off.

Fold up the floor hatch (1) in the cargo compartment.
Remove the floor piece (2).

Removing the accessory electronic module (AEM)

Remove the screws. Disconnect the connectors.
