145 electrical system diagnosisComponents and Connectors

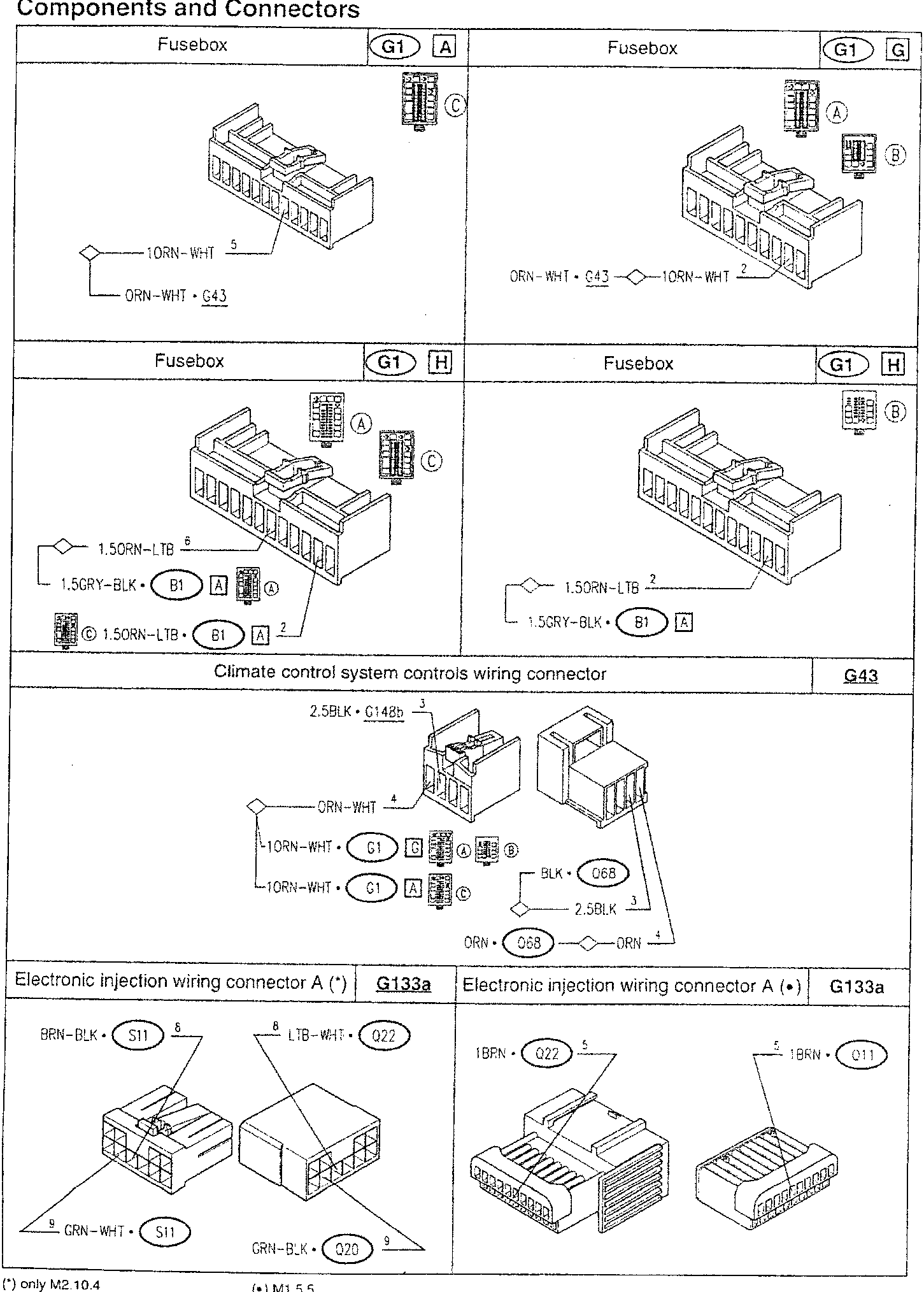

Components and Connectors

Fusebox	G1 A	Fusebox	G1 G
	C		B
	10RN-WHT 5		ORN-WHT · G43 — 10RN-WHT 2

Fusebox	G1 H	Fusebox	G1 H
	A		B
	1.5ORN-LTB 6		1.5ORN-LTB 2

Climate control system controls wiring connector G43

Electronic injection wiring connector A (*) G133a

Electronic injection wiring connector A (•) G133a

(*) only M2.10.4

(•) M1.5.5
