145 electrical system diagnosisComponents and Connectors

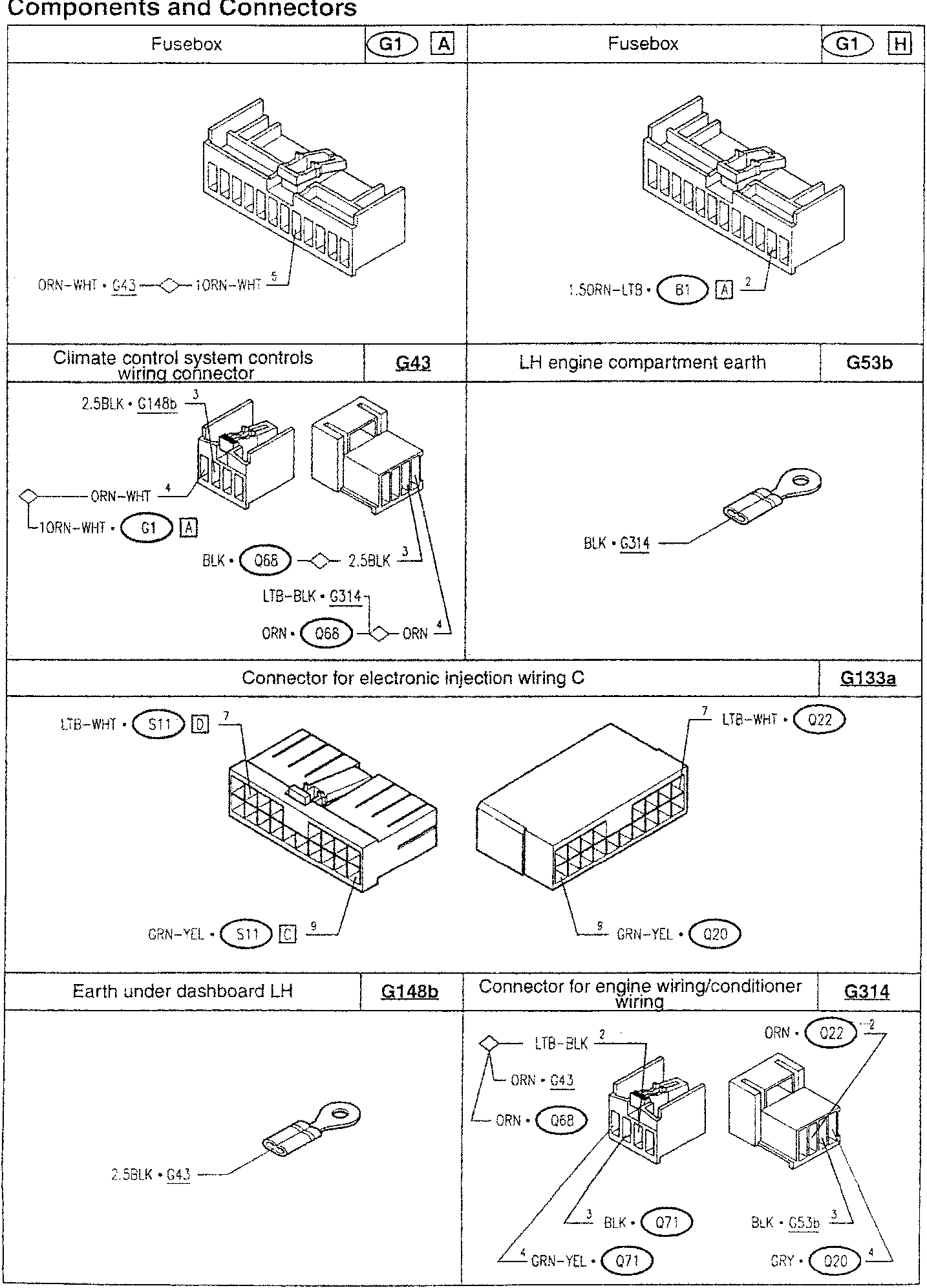

Components and Connectors

Fusebox	G1 A	Fusebox	G1 H
ORN-WHT • G43 — 10RN-WHT 5	1.50RN-LTB • B1 A 2

Climate control system controls wiring connector	G43	LH engine compartment earth	G53b
2.5BLK • G148b 3 ORN-WHT 4 10RN-WHT • G1 A BLK • Q68 — 2.5BLK 3 LTB-BLK • G314 ORN • Q68 — ORN 4	BLK • G314

Connector for electronic injection wiring C	G133a
LTB-WHT • S11 D 7 GRN-YEL • S11 C 9	LTB-WHT • Q22 7 GRN-YEL • Q20 9

Earth under dashboard LH	G148b	Connector for engine wiring/conditioner wiring	G314
2.5BLK • G43	LTB-BLK 2 ORN • G43 ORN • Q68 BLK • Q71 3 GRN-YEL • Q71 4	ORN • Q22 2 BLK • G53b 3 GRY • Q20 4
