LOCATION OF COMPONENTS (petrol versions)

Make: Alfa Romeo
Model: 145/146 Electrical System Diagnosis Manual, Volume 3
Year: 1994–2001
Section: Manual Air Conditioner › LOCATION OF COMPONENTS (petrol versions)

‹ Prev Components and Connectors (continued)Next › LOCATION OF COMPONENTS (TD versions)

145 electrical system diagnosisLOCATION OF COMPONENTS (petrol versions)

LOCATION OF COMPONENTS (petrol versions) – diagram from the 145 electrical system diagnosis chapter of the Alfa Romeo 145/146 Electrical System Diagnosis Manual, Volume 3 (1994-2001) factory manual.

LOCATION OF COMPONENTS (petrol versions)

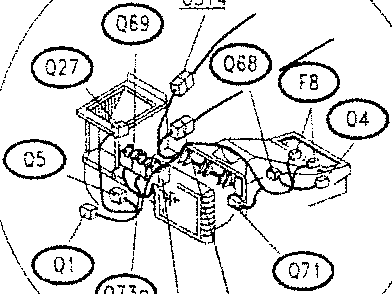

Close-up of electrical components including Q69, Q68, F8, Q4, Q5, Q1, Q73a, Q73b, G43, and C314.

Close-up of a multi-pin connector labeled G254 and G56.

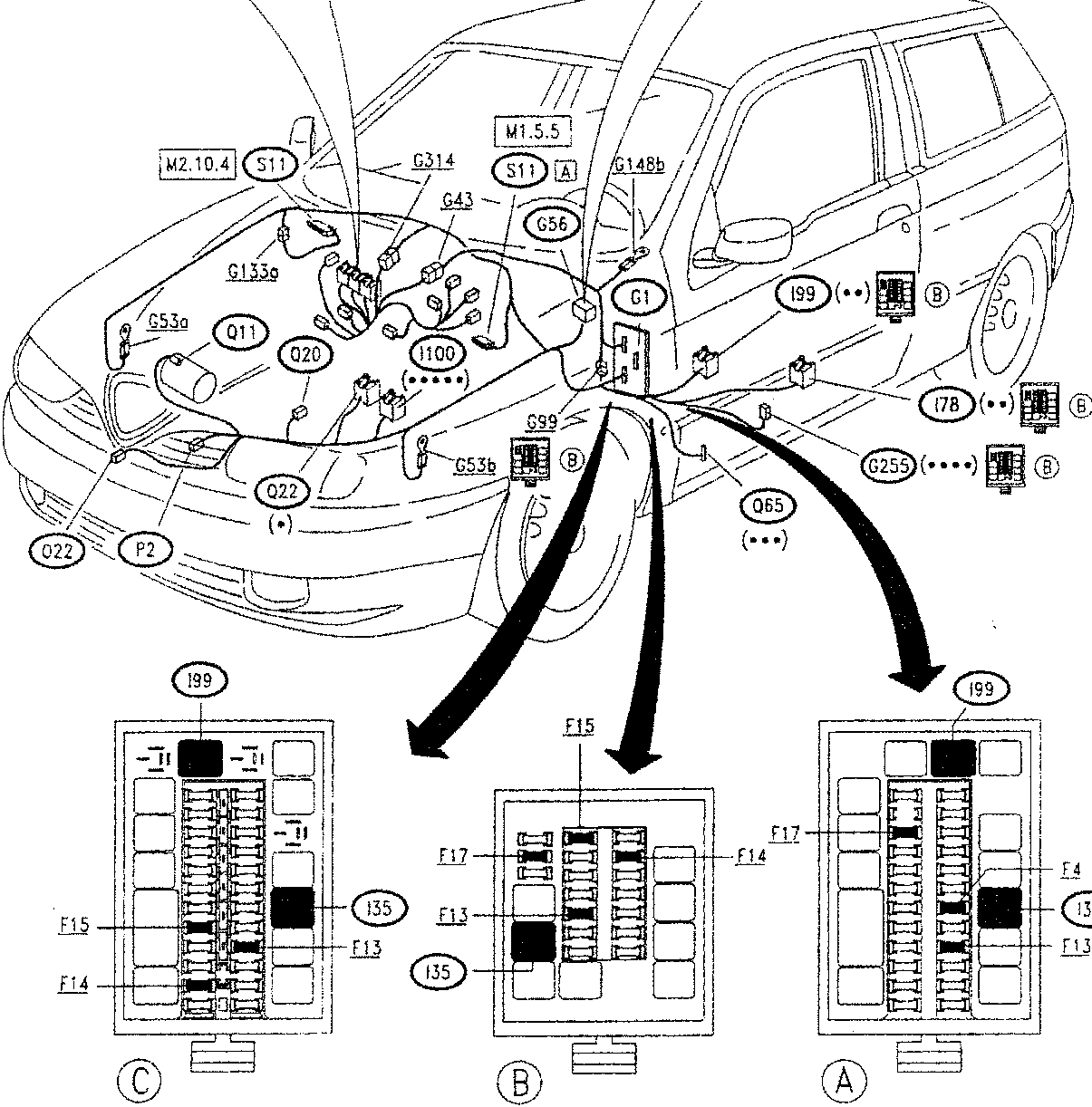

Diagram showing the car with various electrical components labeled including M1.5.5, G148b, G1, G56, G99, Q65, I99, 178, G255, Q22, P2, C314, G43, G53a, Q11, Q20, 1100, and others.

white base
yellow base
red fuseholder
green fuseholder
black base
