145 electrical system diagnosisComponents and Connectors

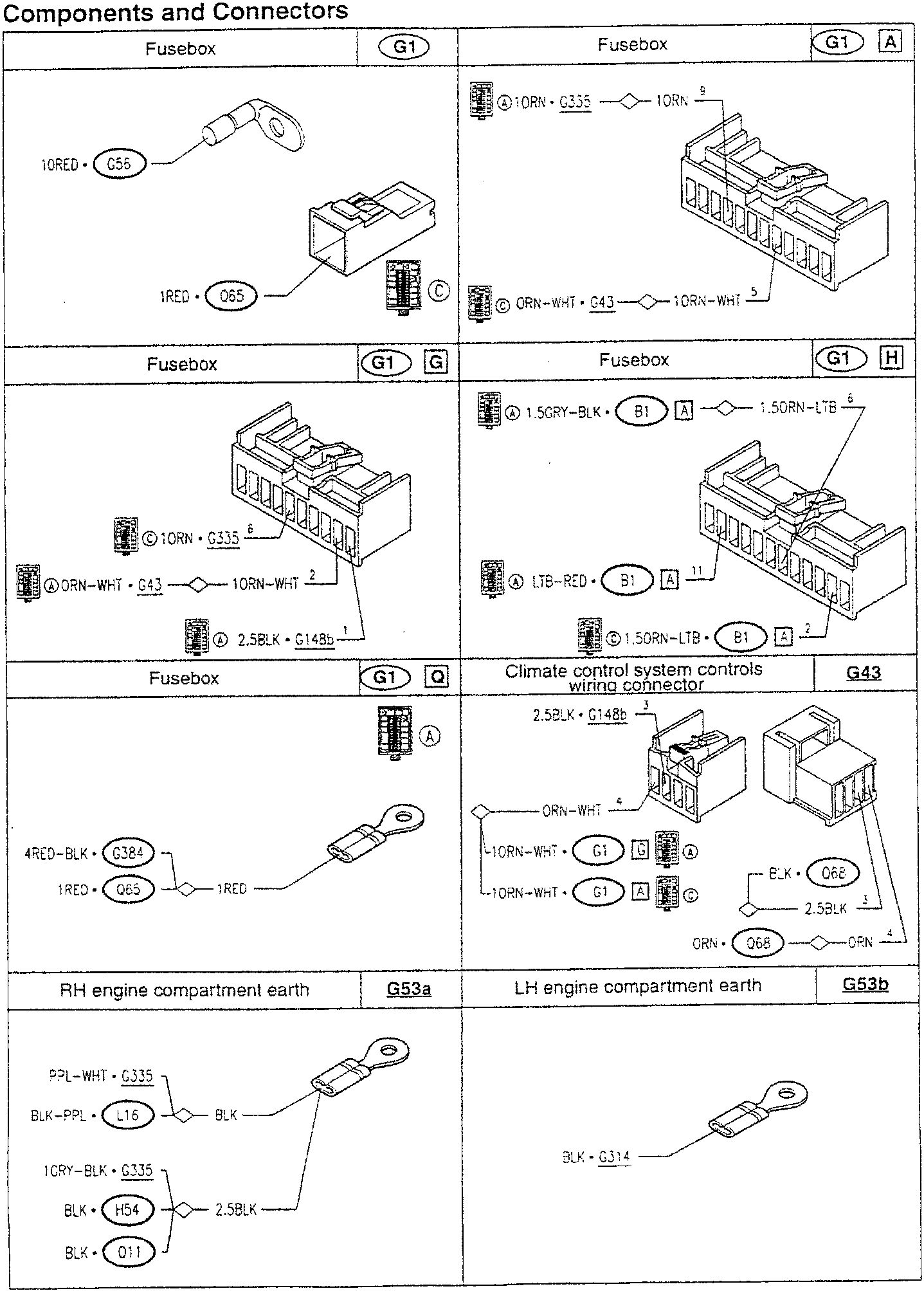

Components and Connectors
| Fusebox | G1 | Fusebox | G1 A |
|---|---|---|---|
|
G1 | G1 A | |
| Fusebox | G1 G | Fusebox | G1 H |
|---|---|---|---|
| G1 | G1 H | ||
| Fusebox | G1 Q | Climate control system controls wiring connector | G43 |
|---|---|---|---|
| G1 | G43 | ||
| RH engine compartment earth | G53a | LH engine compartment earth | G53b |
|---|---|---|---|
| G53a | G53b | ||
