ENGINE FAN CONTROL (Petrol version)

Make: Alfa Romeo
Model: 145/146 Electrical System Diagnosis Manual, Volume 3
Year: 1994–2001
Section: Manual Air Conditioner › ENGINE FAN CONTROL (Petrol version)

‹ Prev Components and Connectors (continued)Next › Wiring Diagram

145 electrical system diagnosisENGINE FAN CONTROL (Petrol version)

ENGINE FAN CONTROL (Petrol version) – diagram from the 145 electrical system diagnosis chapter of the Alfa Romeo 145/146 Electrical System Diagnosis Manual, Volume 3 (1994-2001) factory manual.

ENGINE FAN CONTROL (Petrol version)

Wiring Diagram

Fusebox with terminal connections and relay diagram

Engine cooling fan relay and fuse box diagram

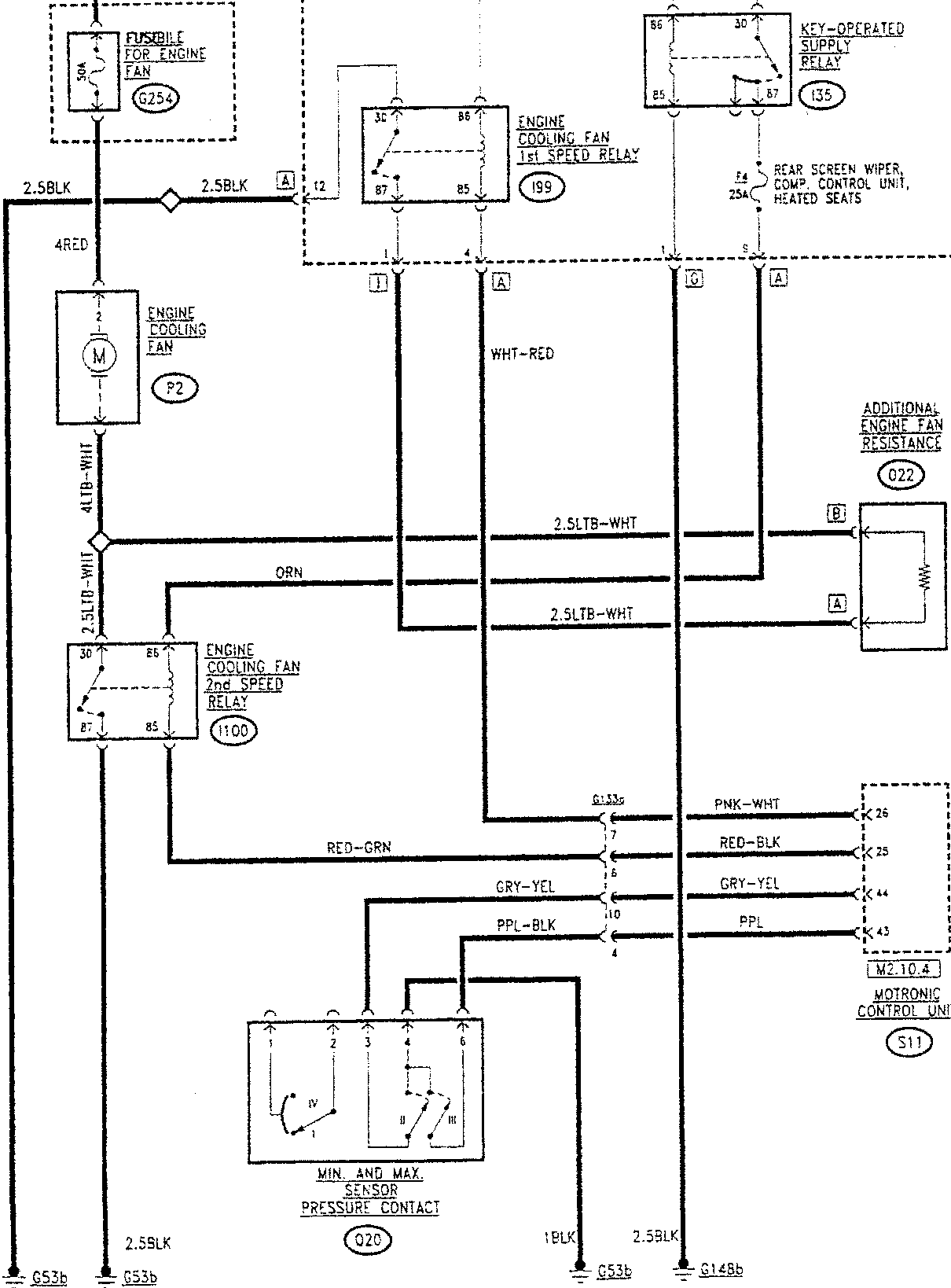

Engine cooling fan control circuit diagram with sensor and relays
