145/146 Electrical System Diagnosis Manual, Volume 3

Year

1994–2001

Section

Manual Air Conditioner › Components and Connectors

145 electrical system diagnosisComponents and Connectors

Components and Connectors

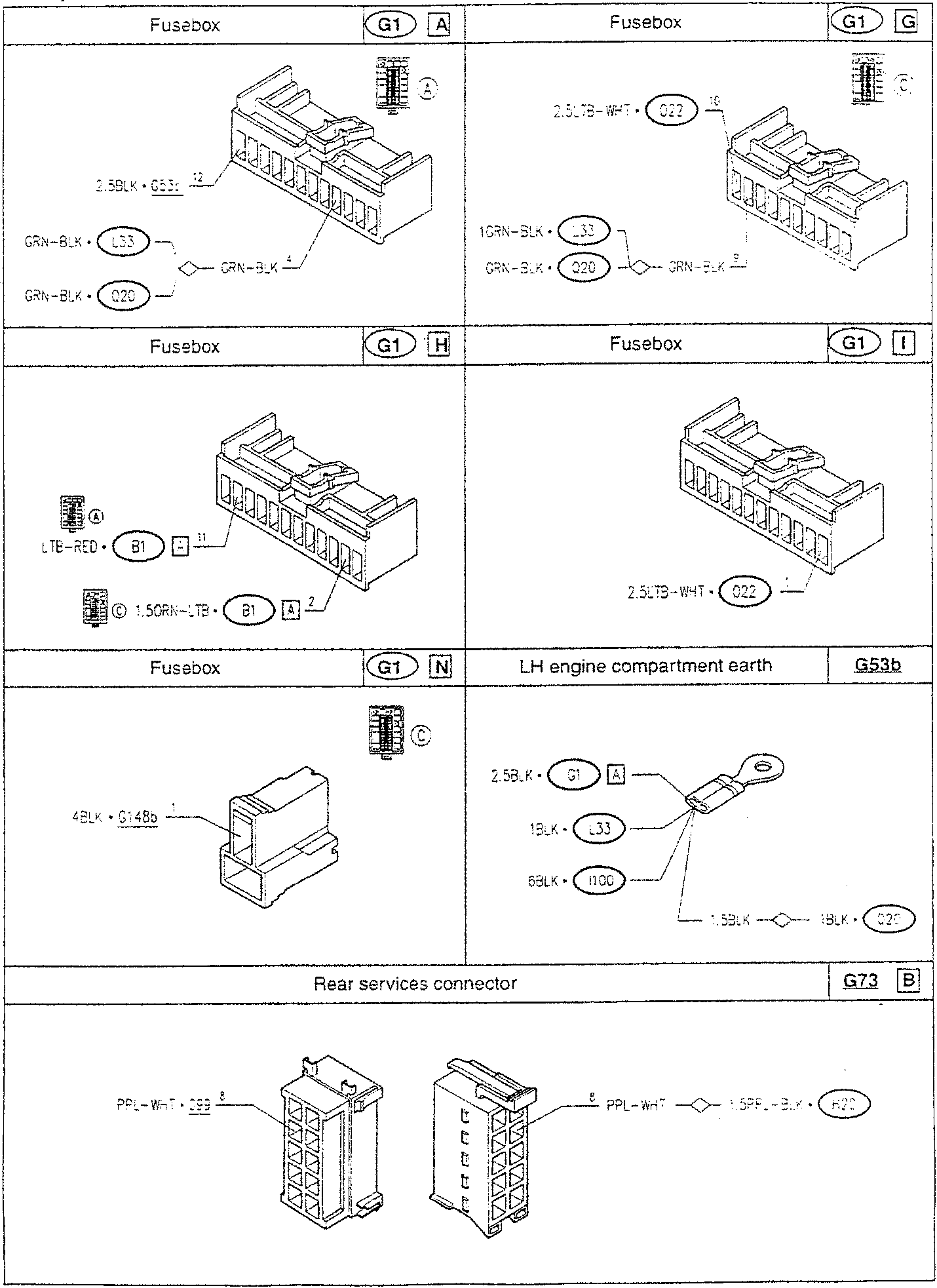

Fusebox	G1 A	Fusebox	G1 G
GRN-BLK • L33	GRN-BLK • Q20	2.5LTB-WHT • Q22	1GRN-BLK • L33
		GRN-BLK • Q20	GRN-BLK • Q20

Fusebox	G1 H	Fusebox	G1 I
LTB-RED • B1	1.5ORN-LTB • B1 A	2.5LTB-WHT • Q22

Fusebox	G1 N	LH engine compartment earth	G53b
4BLK • G148b	2.5BLK • G1 A	1BLK • L33	6BLK • I100
1.5BLK • Q20

Rear services connector G73 B

• PPL-WHT • Q93
• PPL-WHT • R22
