Fan and recirculation control
- Make
- Alfa Romeo
- Model
- 145/146 Electrical System Diagnosis Manual, Volume 3
- Year
- 1994–2001
- Section
- Manual Air Conditioner › Fan and recirculation control
145 electrical system diagnosisFan and recirculation control

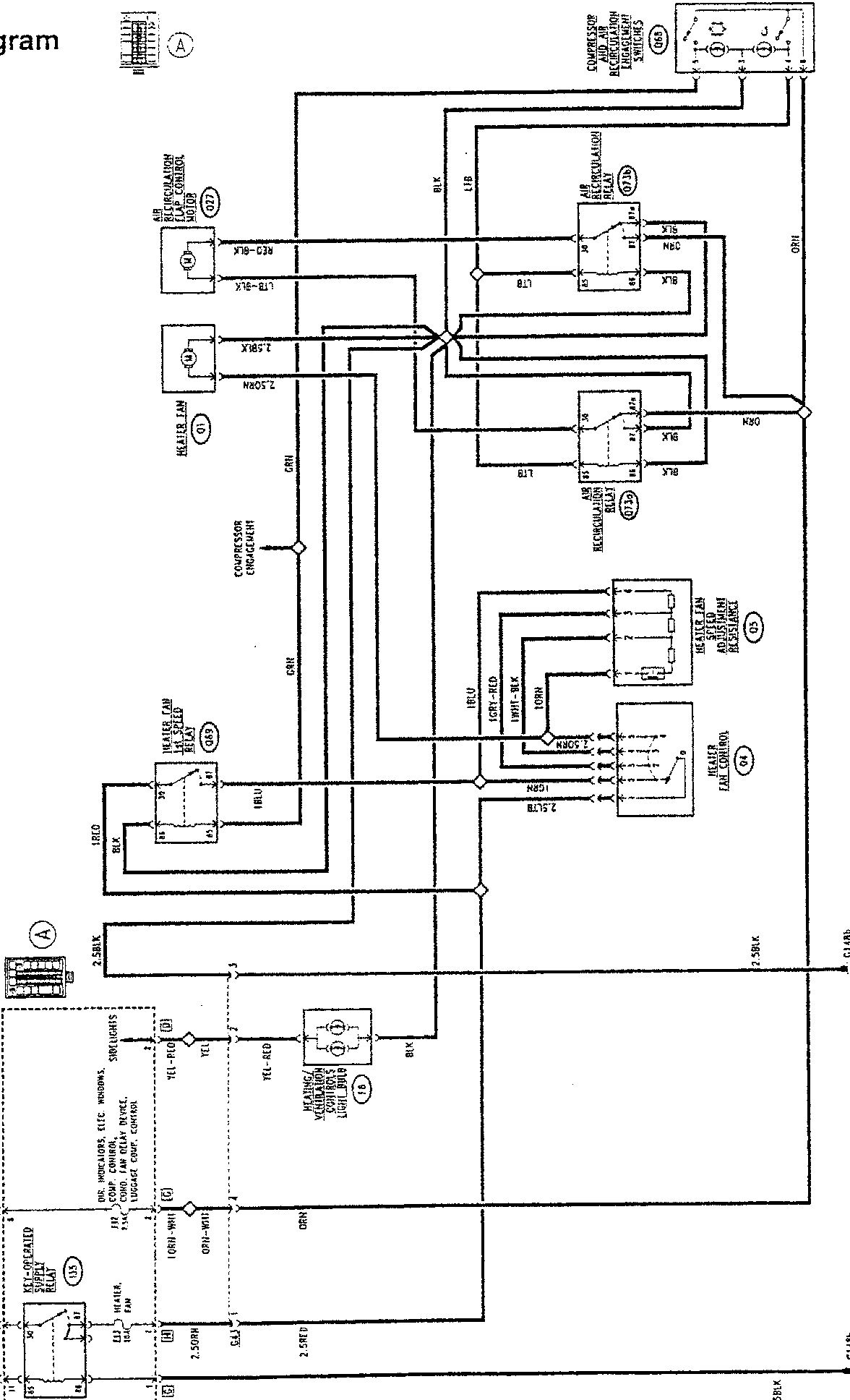

Fan and recirculation control – diagram from the 145 electrical system diagnosis chapter of the Alfa Romeo 145/146 Electrical System Diagnosis Manual, Volume 3 (1994-2001) factory manual.
FAN AND RECIRCULATION CONTROL
Wiring Diagram
