Components and Connectors
- Make
- Alfa Romeo
- Model
- 145/146 Electrical System Diagnosis Manual, Volume 3
- Year
- 1994–2001
- Section
- Manual Air Conditioner › Components and Connectors
145 electrical system diagnosisComponents and Connectors

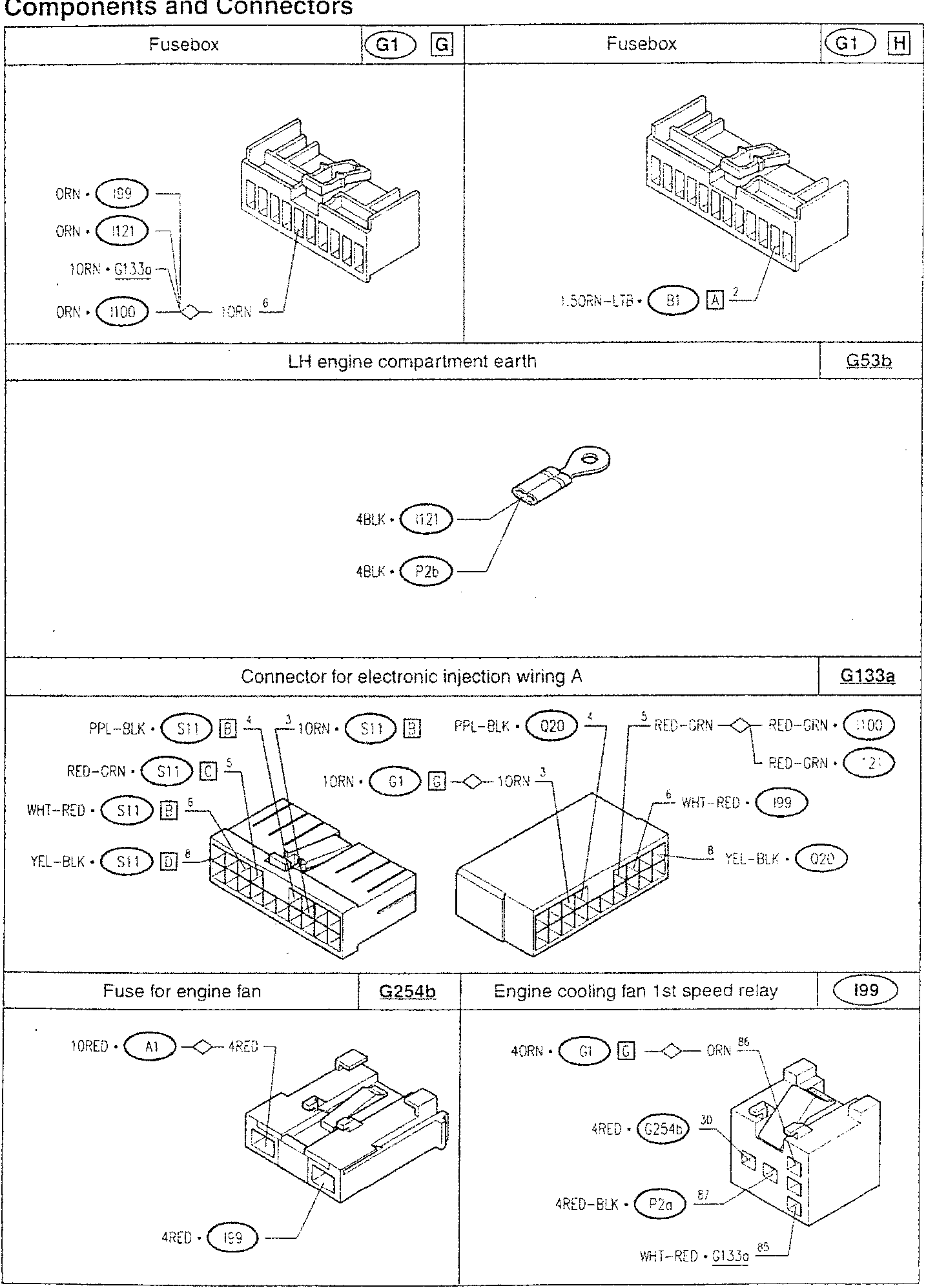

Components and Connectors
| Fusebox | G1 G | Fusebox | G1 H | ||
|---|---|---|---|---|---|
| ORN • I99 | ORN • I121 | 10RN • G133a | ORN • I100 | 10RN 6 | 1.50RN-LTB • B1 A 2 |
| 10RN • G133a | 1.50RN-LTB • B1 A 2 |
LH engine compartment earth
Connector for electronic injection wiring A
Fuse for engine fan
Engine cooling fan 1st speed relay
