COMPONENTS AND CONNECTORS (Boxer versions)

Make

Alfa Romeo

Model

145/146 Electrical System Diagnosis Manual, Volume 3

Year

1994–2001

Section

Power Supply › COMPONENTS AND CONNECTORS (Boxer versions)

146 electrical system diagnosisCOMPONENTS AND CONNECTORS (Boxer versions)

COMPONENTS AND CONNECTORS (Boxer versions)

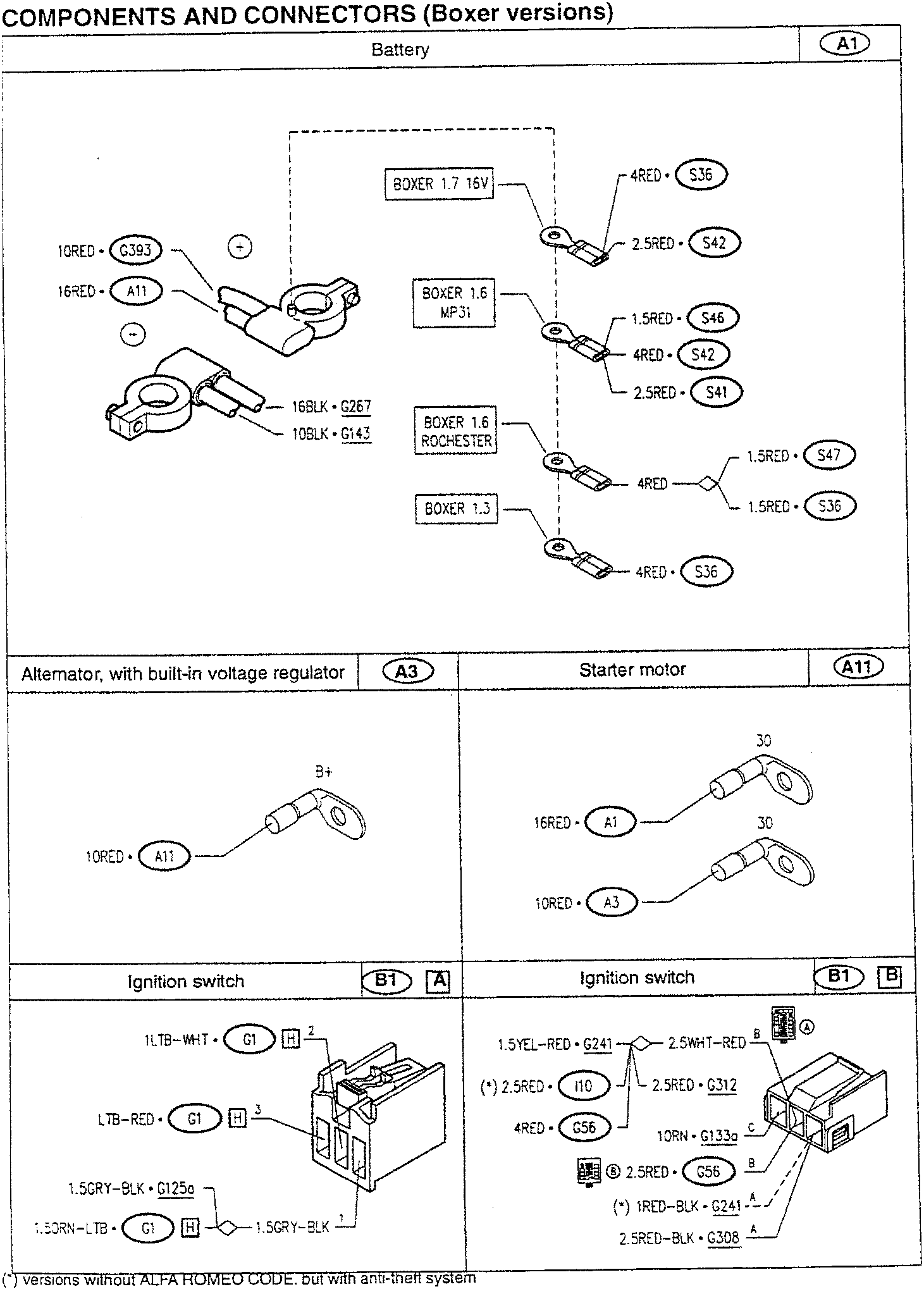

Battery	A1
10RED • G393 16RED • A11 16BLK • G267 10BLK • G143	BOXER 1.7 16V BOXER 1.6 MP31 BOXER 1.6 ROCHESTER BOXER 1.3	4RED • S36 2.5.RED • S42 1.5.RED • S46 4RED • S42 2.5.RED • S41 4RED • S36 1.5.RED • S47 1.5.RED • S36

Alternator, with built-in voltage regulator	A3	Starter motor	A11
B+ 10RED • A11	16RED • A1 10RED • A3	30 30

Ignition switch	B1 A	Ignition switch	B1 B
1LTB-WHT • G1 LTB-RED • G1 1.5GRY-BLK • G125a 1.5ORN-LTB • G1	1.5YEL-RED • G241 (*) 2.5.RED • I10 4RED • G56 10RN • G133a (*) 1RED-BLK • G241 2.5.RED-BLK • G308	2.5WHT-RED B 2.5.RED • G312 2.5.RED • G56 B A

(*) versions without ALFA ROMEO CODE, but with anti-theft system
