146 electrical system diagnosisCOMPONENTS AND CONNECTORS (JTD version)

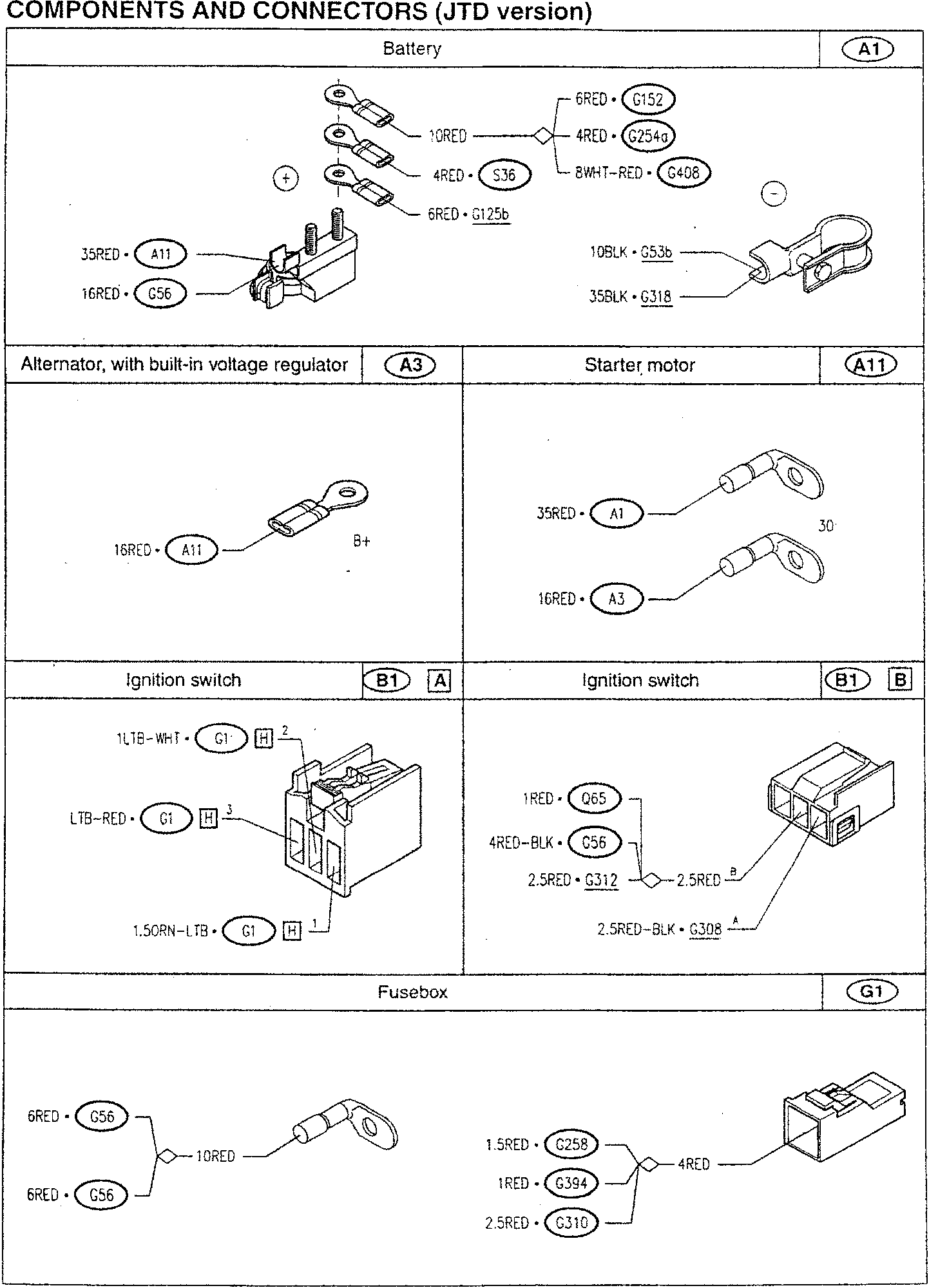

COMPONENTS AND CONNECTORS (JTD version)

Battery		A1
		A1
				6RED • G152	4RED • G254a
				8WHT-RED • G408	10BLK • G53b

Alternator, with built-in voltage regulator	A3	Starter motor	A11
				16RED • A11	35RED • A1	16RED • A3

Ignition switch	B1 A	Ignition switch	B1 B
				1RED • Q65	4RED-BLK • G56	2.5RED • G312	2.5RED-BLK • G308

Fusebox	G1
		G1
				6RED • G56	1.5RED • G258	1RED • G394	2.5RED • G310
