COMPONENTS AND CONNECTORS (contd.)

Make

Alfa Romeo

Model

145/146 Electrical System Diagnosis Manual, Volume 3

Year

1994–2001

Section

Power Supply › COMPONENTS AND CONNECTORS (contd.)

146 electrical system diagnosisCOMPONENTS AND CONNECTORS (contd.)

COMPONENTS AND CONNECTORS (contd.)

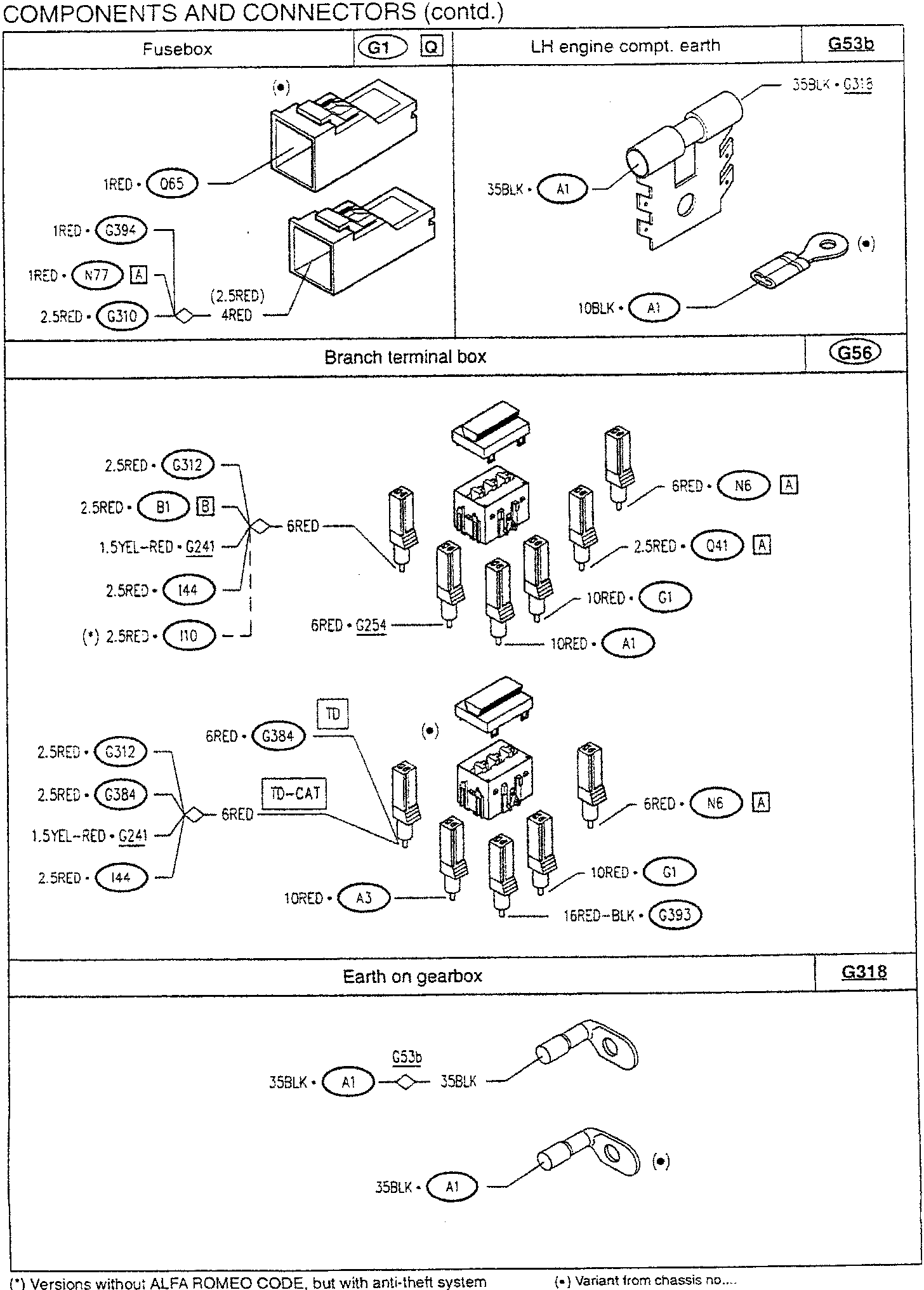

Fusebox	G1 Q	LH engine compt. earth	G53b
				35BLK • G318	35BLK • A1	10BLK • A1

Branch terminal box

Earth on gearbox

(*) Versions without ALFA ROMEO CODE, but with anti-theft system

(•) Variant from chassis no....

02 Diagnostics
