COMPONENTS AND CONNECTORS (contd.)
- Make
- Alfa Romeo
- Model
- 145/146 Electrical System Diagnosis Manual, Volume 3
- Year
- 1994–2001
- Section
- Power Supply › COMPONENTS AND CONNECTORS (contd.)
146 electrical system diagnosisCOMPONENTS AND CONNECTORS (contd.)

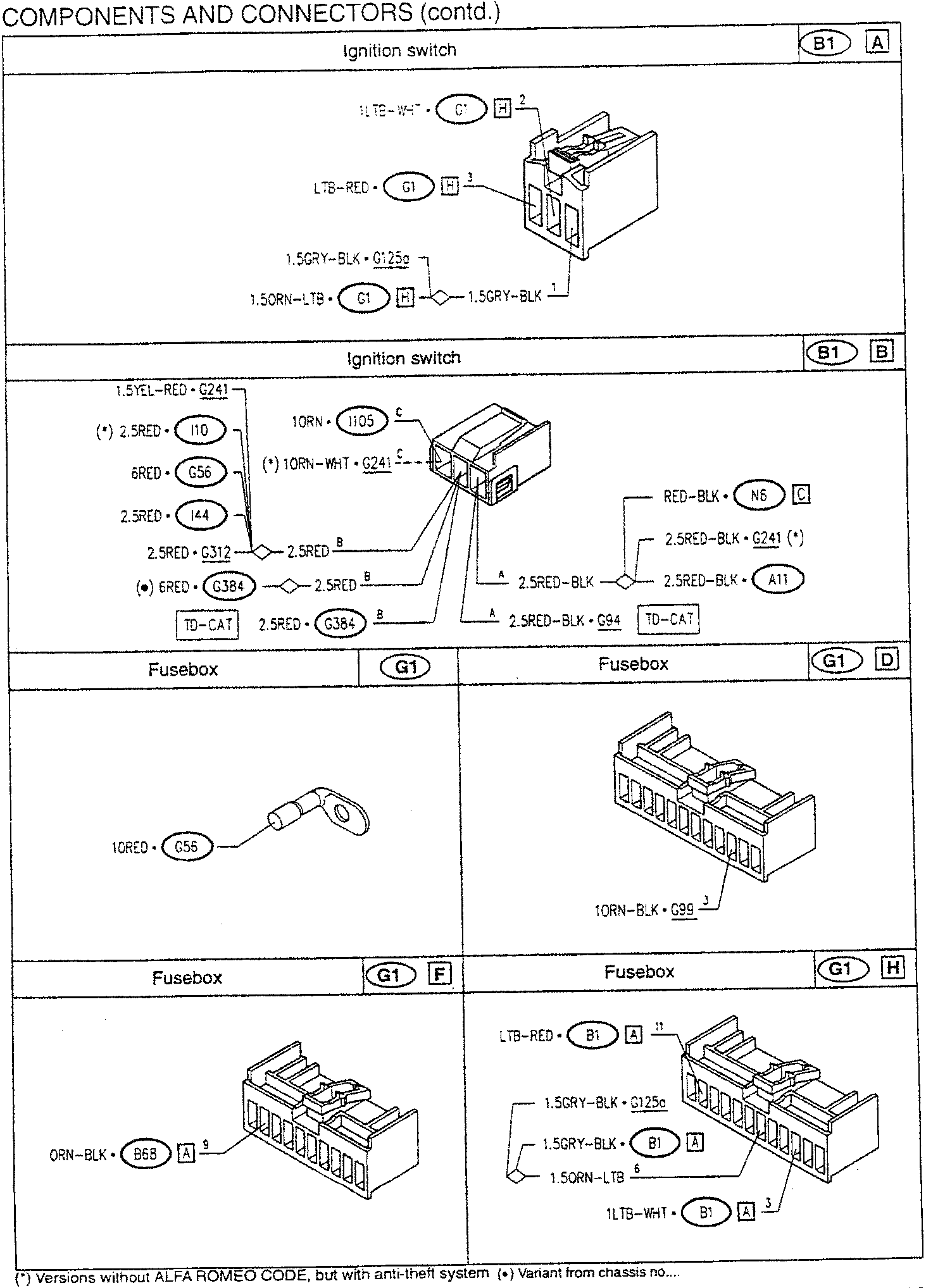

COMPONENTS AND CONNECTORS (contd.) – diagram from the 146 electrical system diagnosis chapter of the Alfa Romeo 145/146 Electrical System Diagnosis Manual, Volume 3 (1994-2001) factory manual.
COMPONENTS AND CONNECTORS (contd.)
(*) Versions without ALFA ROMEO CODE, but with anti-theft system (*) Variant from chassis no....
