COMPONENTS AND CONNECTORS (contd.)

Make

Alfa Romeo

Model

145/146 Electrical System Diagnosis Manual, Volume 3

Year

1994–2001

Section

Power Supply › COMPONENTS AND CONNECTORS (contd.)

146 electrical system diagnosisCOMPONENTS AND CONNECTORS (contd.)

COMPONENTS AND CONNECTORS (contd.)

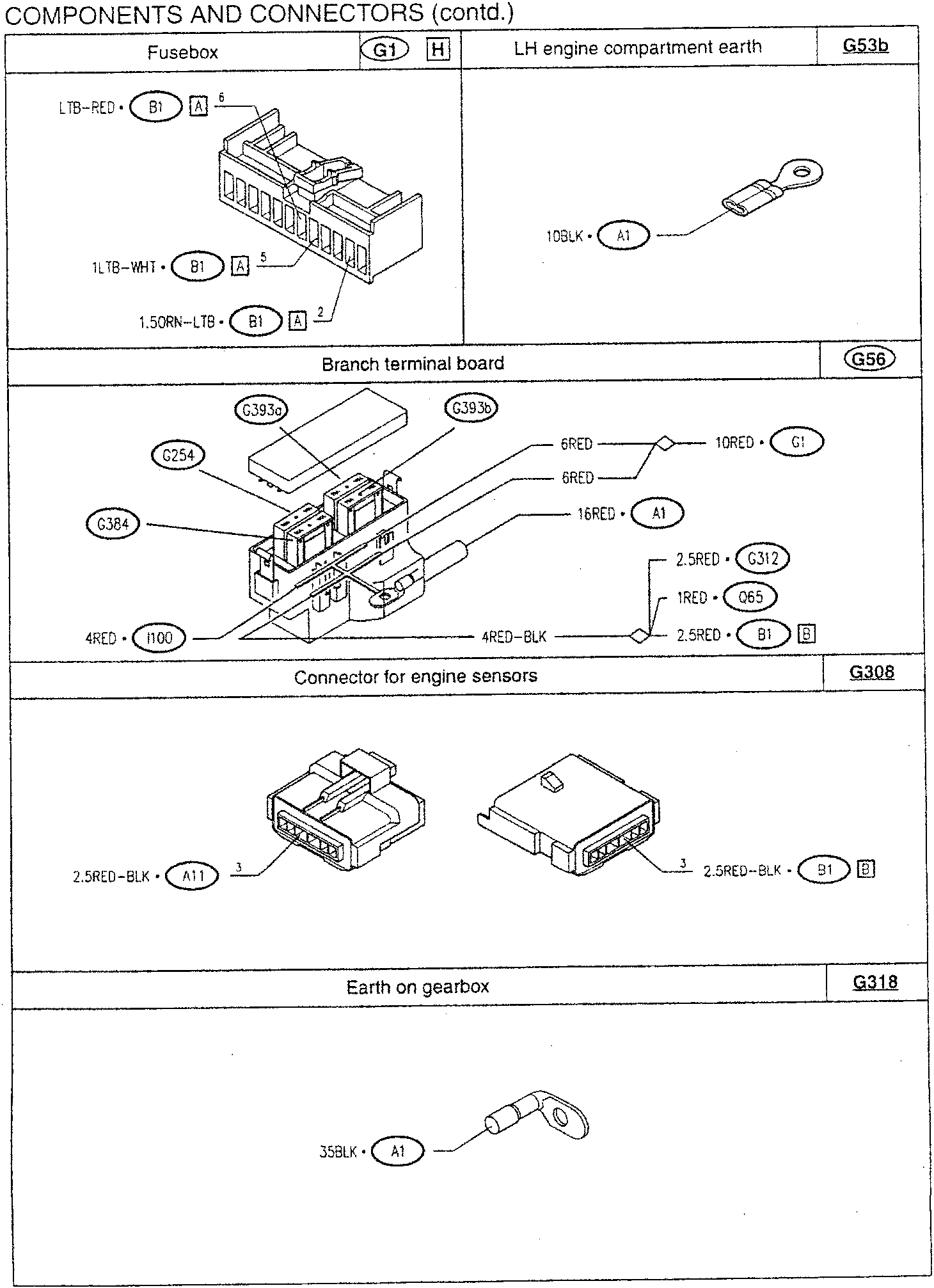

Fusebox	G1 H	LH engine compartment earth	G53b
LTB-RED • B1 A 6 1LTB-WHT • B1 A 5 1.5ORN-LTB • B1 A 2		10BLK • A1

Branch terminal board	G56
G393a G393b G254 G384 6RED — 10RED • G1 6RED — 16RED • A1 4RED — 4RED-BLK 2.5RED • G312 1RED • Q65 2.5RED • B1 B

Connector for engine sensors	G308
2.5RED-BLK • A11 3 2.5RED-BLK • B1 B 3

Earth on gearbox	G318
35BLK • A1
