COMPONENTS AND CONNECTORS (contd.)

Make

Alfa Romeo

Model

145/146 Electrical System Diagnosis Manual, Volume 3

Year

1994–2001

Section

Power Supply › COMPONENTS AND CONNECTORS (contd.)

146 electrical system diagnosisCOMPONENTS AND CONNECTORS (contd.)

COMPONENTS AND CONNECTORS (contd.)

Fusebox	G1 H	LH engine compt. earth	G53b

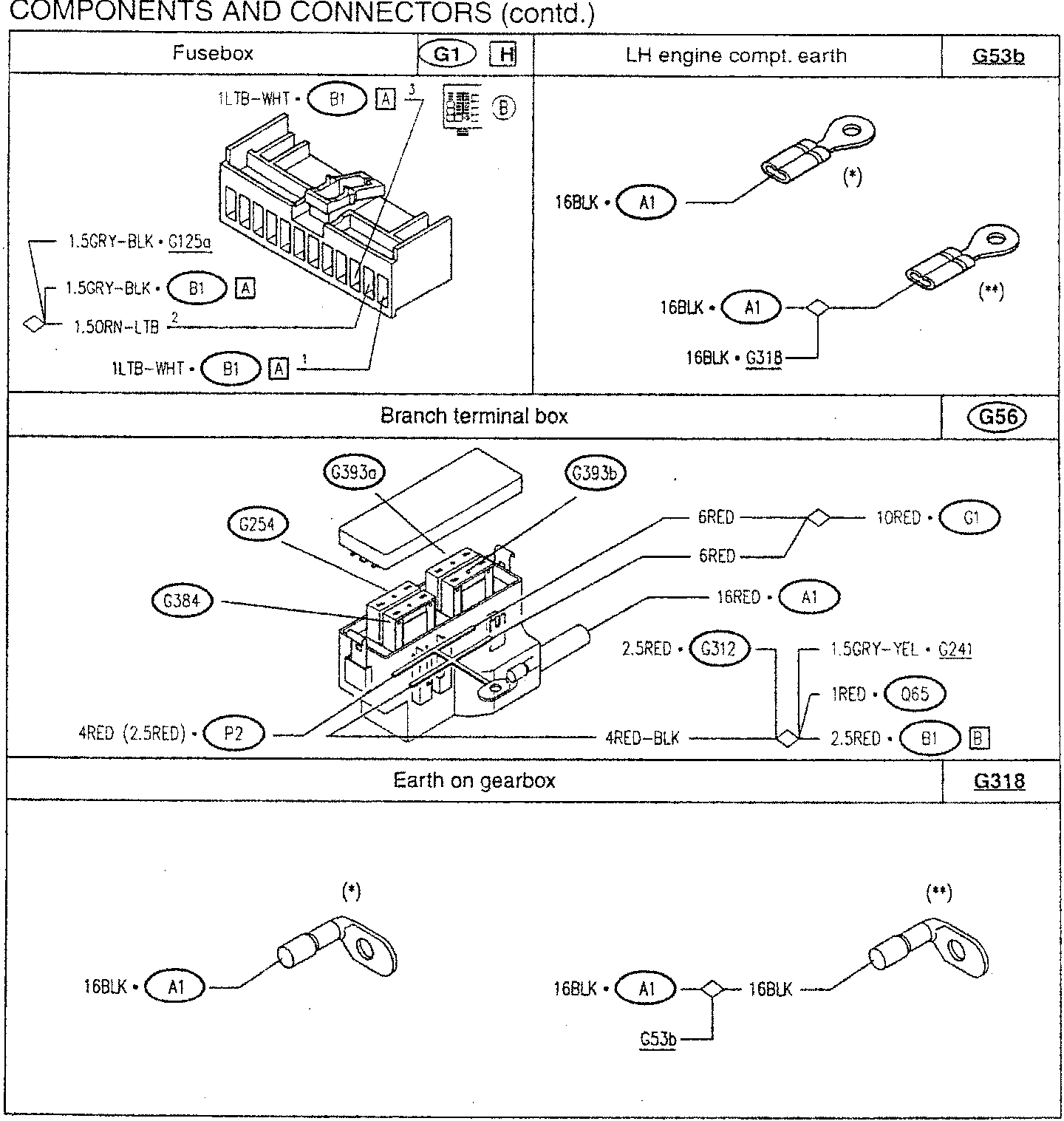

1LTB-WHT • B1 A 3 1.5GRY-BLK • G125a 1.5GRY-BLK • B1 A 1.5ORN-LTB 2 1LTB-WHT • B1 A 1	16BLK • A1 (*) 16BLK • A1 (**) G318	G393a G393b 6RED 10RED • G1 6RED 16RED • A1 2.5RED • G312 1.5CRY-YEL • G241 1RED • Q65 2.5RED • B1 B	16BLK • A1 (*) 16BLK • A1 G53b 16BLK (**)
				G56	G318

(*) from M.Y. '97

(**) from M.Y. '98
