146 electrical system diagnosisCOMPONENTS AND CONNECTORS (contd.)

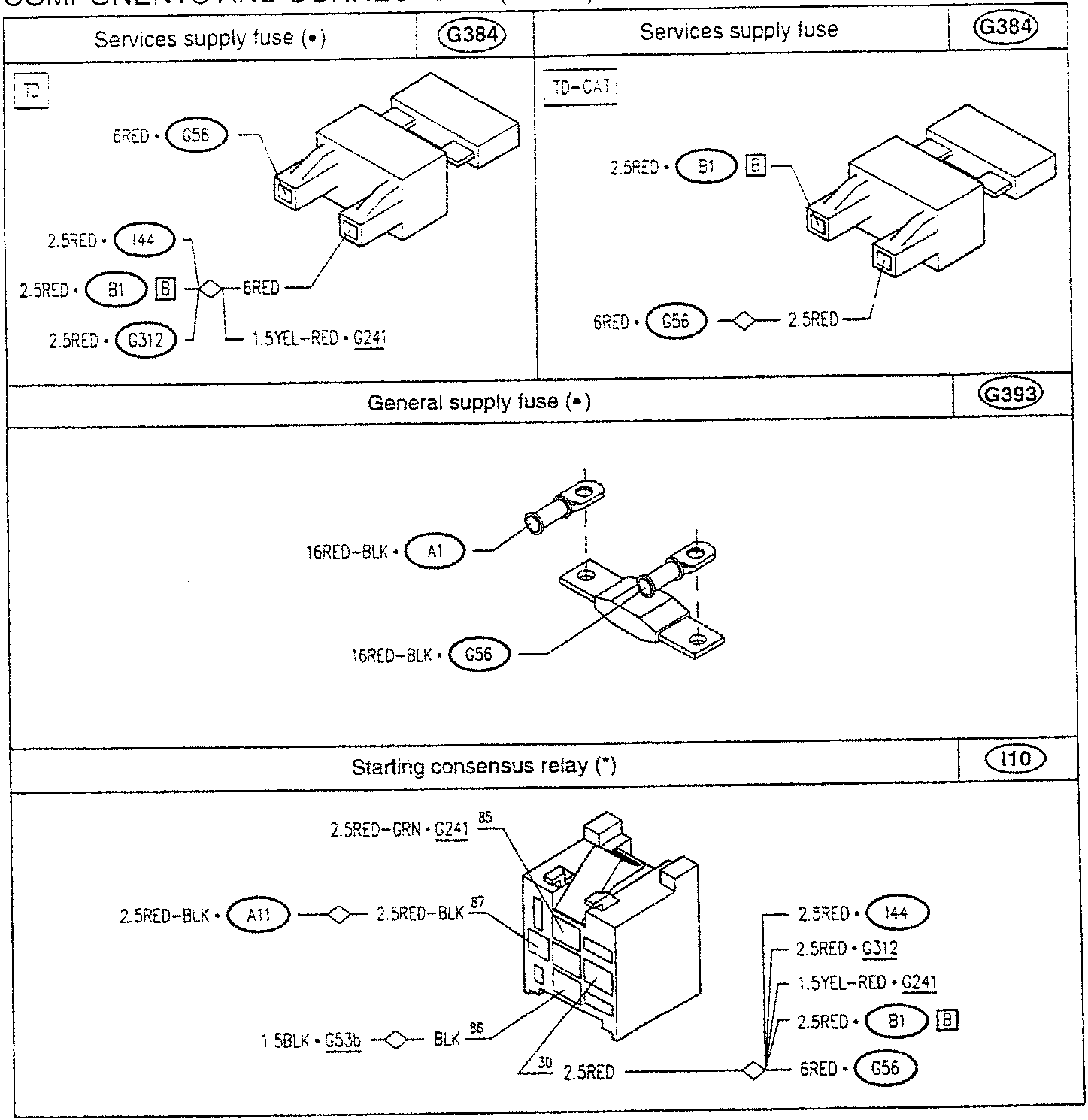

COMPONENTS AND CONNECTORS (contd.)

Services supply fuse (•)		G384	Services supply fuse	G384
TD		TD-CAT
				6RED • G56	2.5RED • B1 [B]
2.5RED • I44	2.5RED • B1 [B]	6RED	2.5RED
2.5RED • G312	1.5YEL-RED • G241	6RED • G56	2.5RED

General supply fuse (•)		G393
16RED-BLK • A1	16RED-BLK • G56

Starting consensus relay (*)		110
2.5RED-GRN • G241 [85]	2.5RED-BLK • A11	2.5RED-BLK [87]
1.5BLK • G53b	BLK [86]	2.5RED • I44
2.5RED • G312	1.5YEL-RED • G241	2.5RED • B1 [B]
2.5RED	6RED • G56

(*) Versions without ALFA ROMEO CODE, but with anti-theft system

(•) Variant from chassis no....
