Removal of air intake box

Removal of air intake box

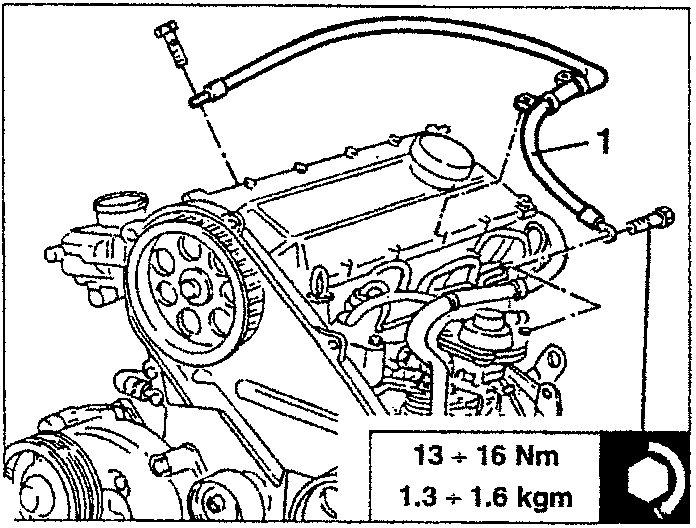

1. Remove the over pressure pipe for the flow limiter on the injection pump.

13 ÷ 16 Nm
1.3 ÷ 1.6 kgm

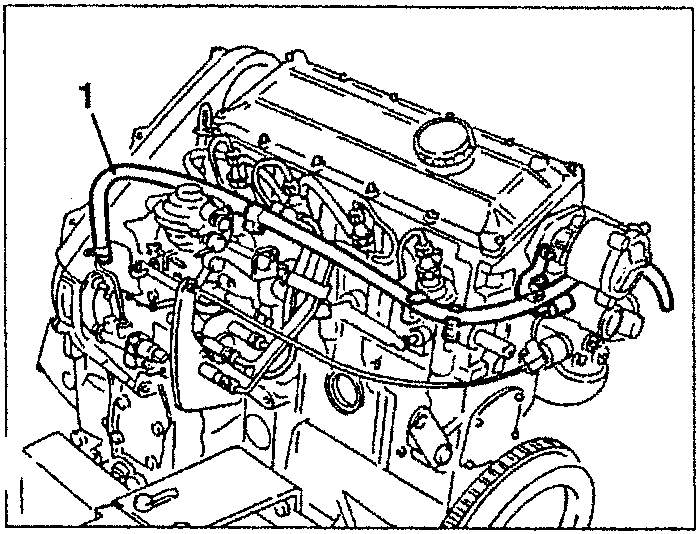

1. Remove the fuel arrival from filter to injection pump pipe.

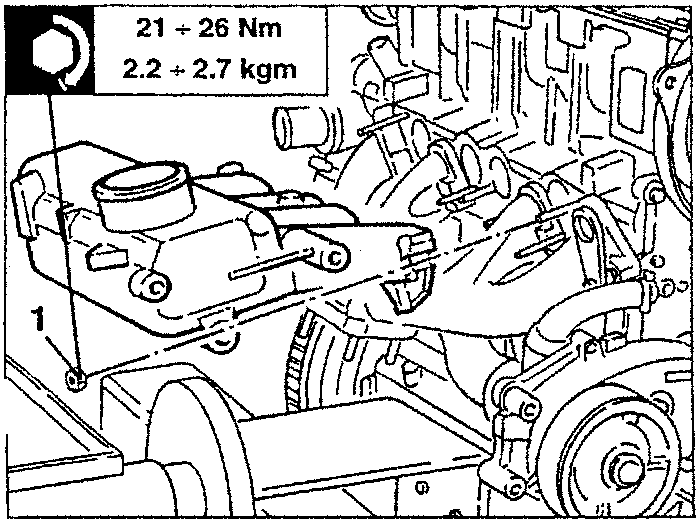

1. Unscrew the fastening screws and remove the air intake box.

21 ÷ 26 Nm
2.2 ÷ 2.7 kgm

Removal of exhaust manifold

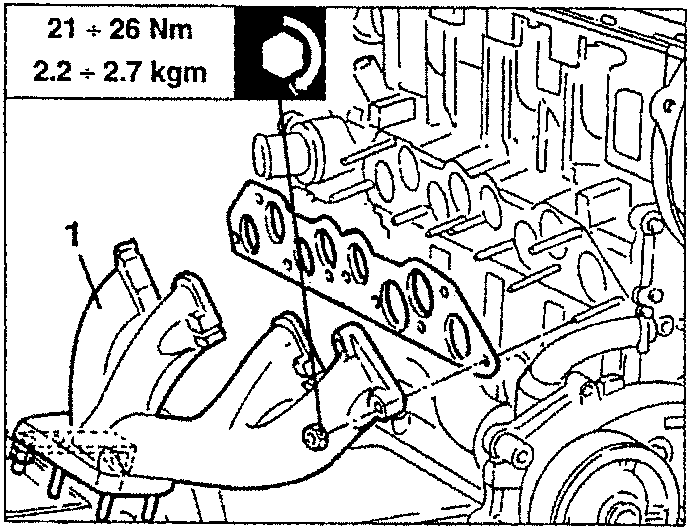

1. Unscrew the fastening screws and remove the exhaust manifold.

21 ÷ 26 Nm
2.2 ÷ 2.7 kgm

Removal of water pump

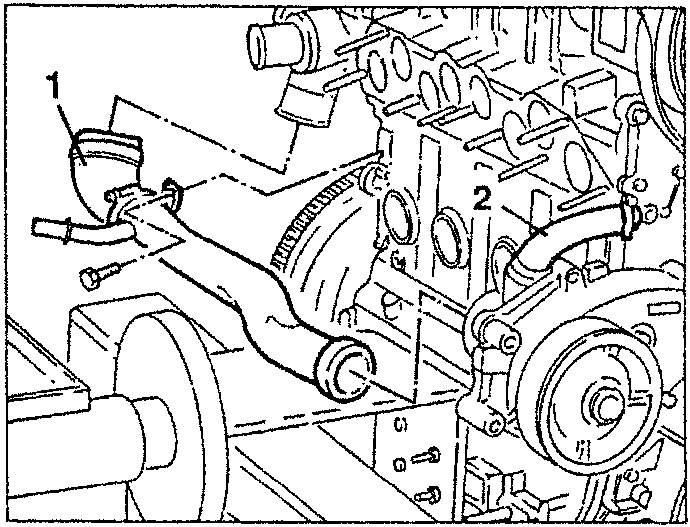

1. Remove the engine coolant to pump return manifold.
2. Disconnect the engine coolant to pump return pipe from the cylinder heads.

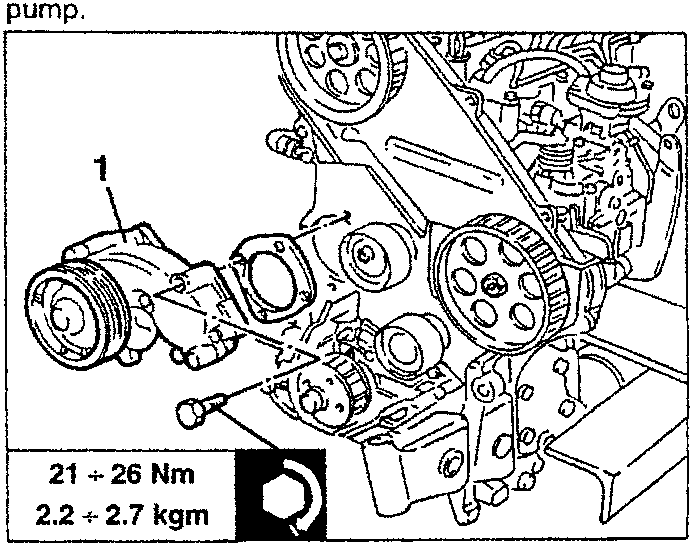

1. Unscrew fastening screws and remove water pump.

21 ÷ 26 Nm
2.2 ÷ 2.7 kgm
