Removal of power steering pump

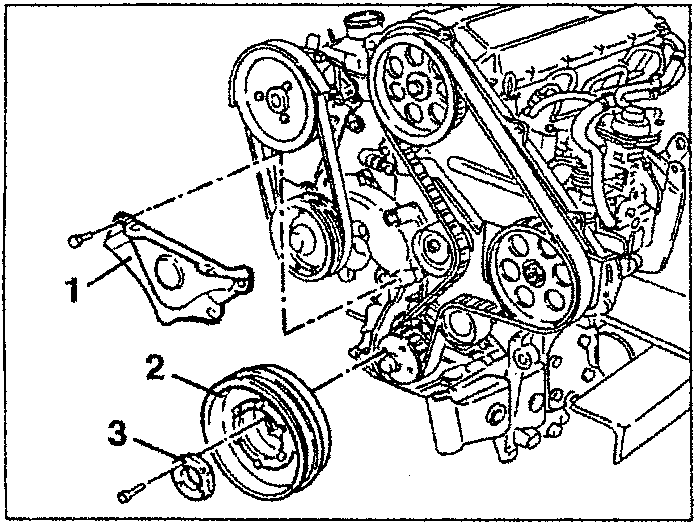

1. Remove the timing belt lower cover.
2. Remove the auxiliary parts belt control pulley.
3. Recover the spacer.

1. Timing belt lower cover
2. Auxiliary parts belt control pulley
3. Spacer

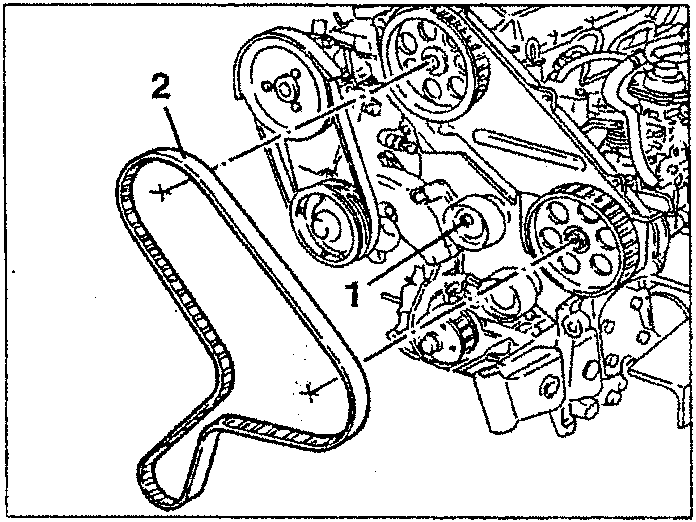

1. Loosen the fastening nut of the timing belt stretcher.
2. Remove the timing control belt.

1. Timing belt stretcher
2. Timing control belt

Removal of power steering pump

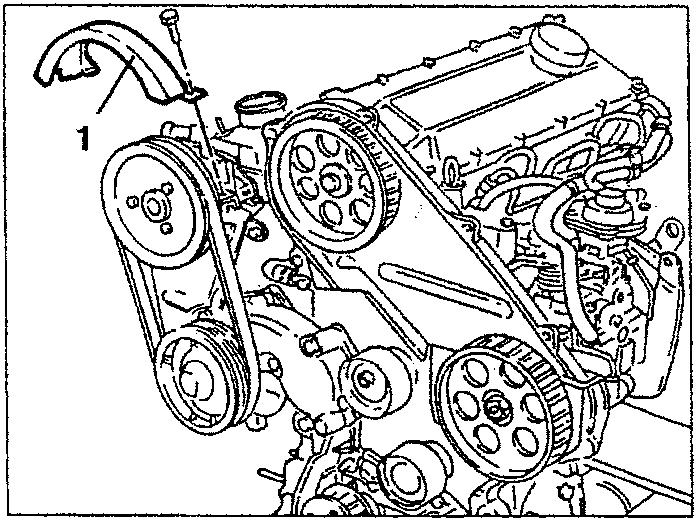

1. Remove the power steering pump belt guard.

1. Power steering pump belt guard

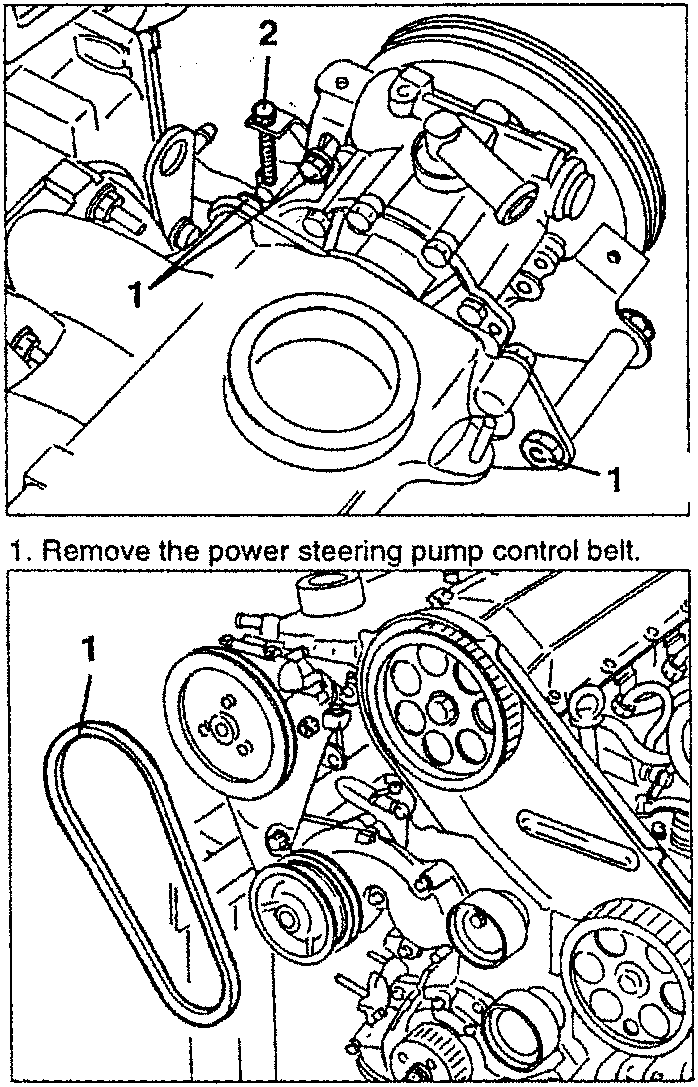

1. Loosen the fastening screws of the power steering pump indicated in the figure.
2. Decrease the tension of the power steering pump control belt by acting on the screws of the micrometric stretcher.

1. Power steering pump fastening screw
2. Micrometric stretcher
1. Remove the power steering pump control belt.

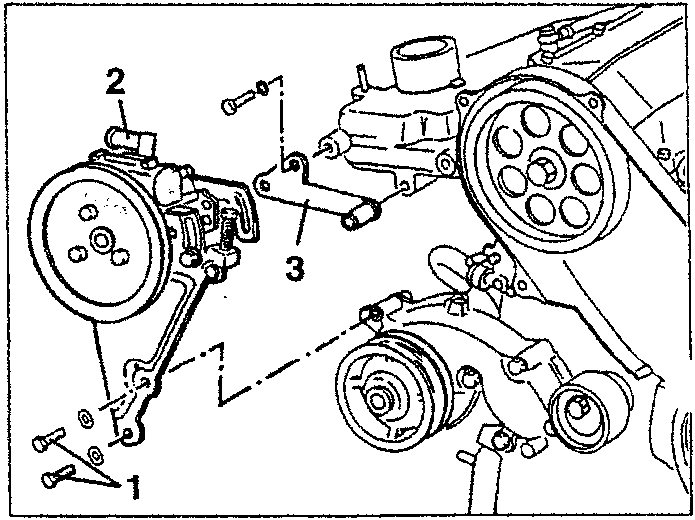

1. Unscrew completely the screws which have been loosened beforehand and the two screws indicated in the figure.
2. Remove the power steering pump complete with front bracket.
3. Remove the power steering pump front support bracket.

1. Power steering pump
2. Front bracket
3. Front support bracket
