Alfa Romeo 145/146 Engines, 146 Bodywork and Engine Overhaul Manual (1994-2001)11 · Engine overhaul: 1.9 TD (AR67501)
11 · Engine

Removal of thermostatic cup

Make
Alfa Romeo
Model
145/146 Engines, 146 Bodywork and Engine Overhaul Manual
Year
1994–2001
Section
Overhauling › Removal of thermostatic cup
Engine overhaul: 1.9 TD (AR67501)Removal of thermostatic cup

Removal of thermostatic cup

  1. Disconnect the cable of the idle speed automatic control device.

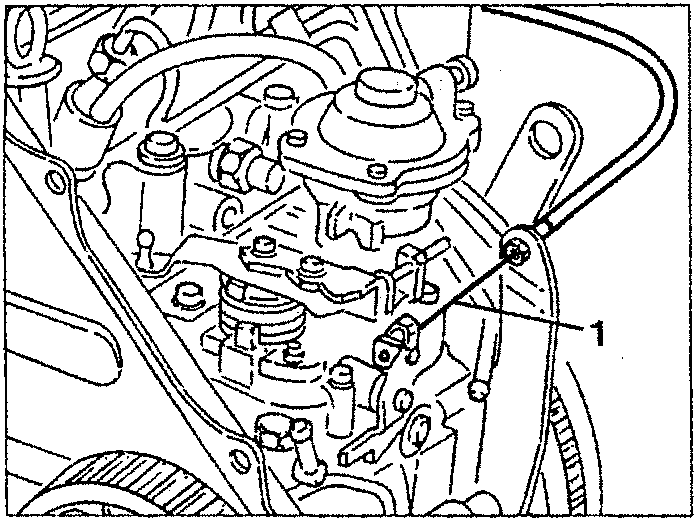

Engine diagram showing disconnection point for idle speed automatic control device
  1. Unscrew the screws and remove the complete thermostatic cup.

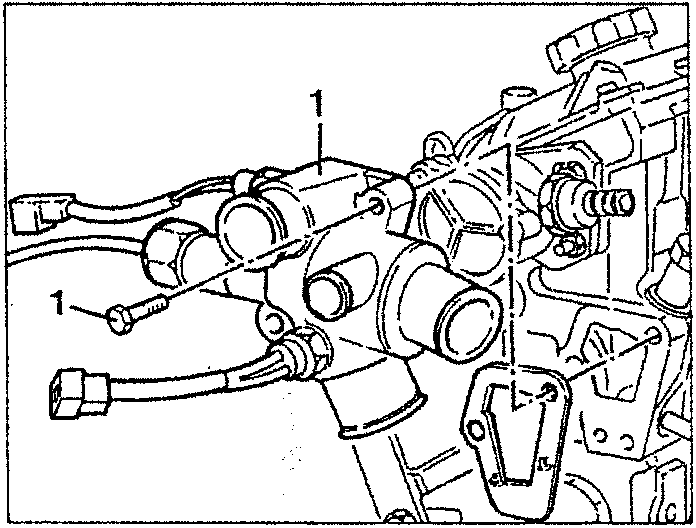

Diagram showing removal of thermosensor, KSB consensus thermoswitch, and air conditioning compressor cut-off thermal contact
  1. Remove the thermostatic sensor of the idle speed automatic device.
  2. Remove the KSB consensus thermoswitch.
  3. Remove the air conditioning compressor cut-off thermal contact.

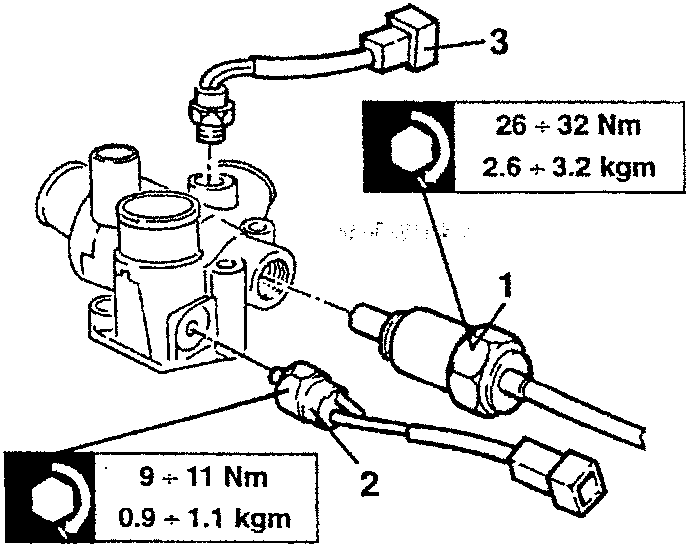

Diagram showing torque specifications for components: 26 + 32 Nm / 2.6 + 3.2 kgm and 9 + 11 Nm / 0.9 + 1.1 kgm

26 ÷ 32 Nm
2.6 ÷ 3.2 kgm

9 ÷ 11 Nm
0.9 ÷ 1.1 kgm

Removal of servobrake vacuum pump

  1. Unscrew the fastening screws and remove the vacuum pump for the servo brake.

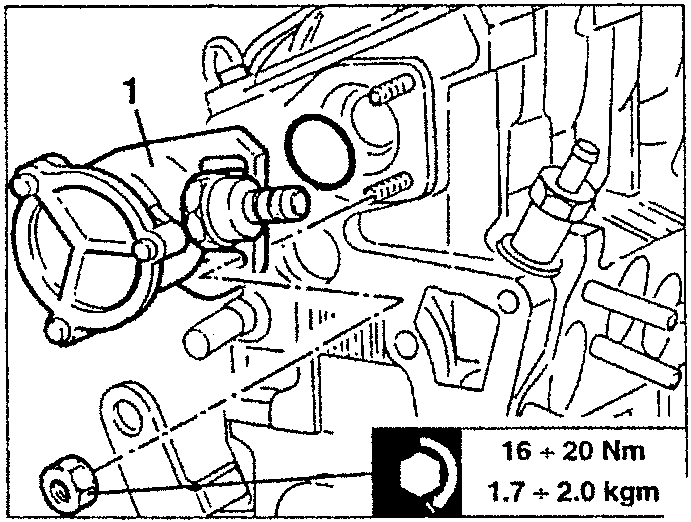

Diagram showing removal of servobrake vacuum pump with torque specification 16 + 20 Nm / 1.7 + 2.0 kgm

16 ÷ 20 Nm
1.7 ÷ 2.0 kgm

Removal of injection pump

  1. Using a 13 mm spanner as a counter rotation tool loosen the screw and remove the timing command pulley.

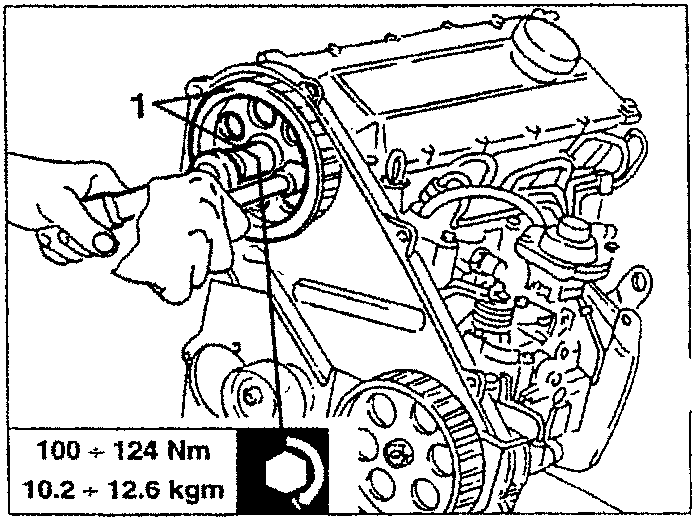

Diagram showing removal of timing command pulley with torque specification 100 + 124 Nm / 10.2 + 12.6 kgm

100 ÷ 124 Nm
10.2 ÷ 12.6 kgm

Removal of timing belt rear cover

  1. Remove the timing belt rear cover.

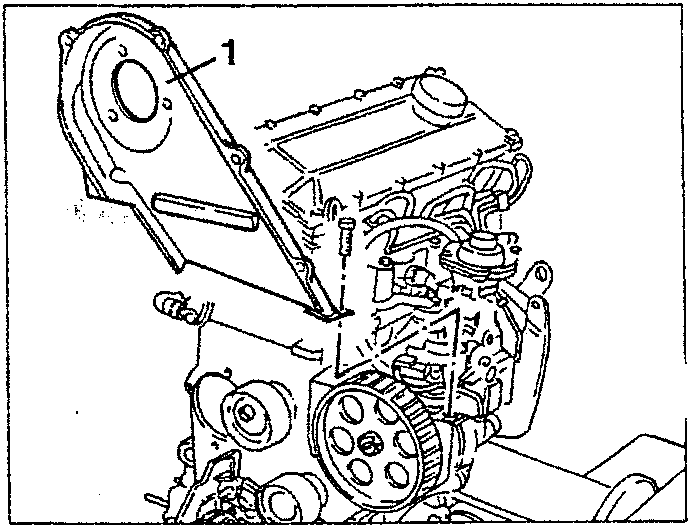

Diagram showing removal of timing belt rear cover
