Cylinder head removal

CYLINDER HEAD REMOVAL

NOTE: The following operations refer to the right-hand cylinder head. Proceed in the same way from the left-hand cylinder head.

PRELIMINARY OPERATIONS

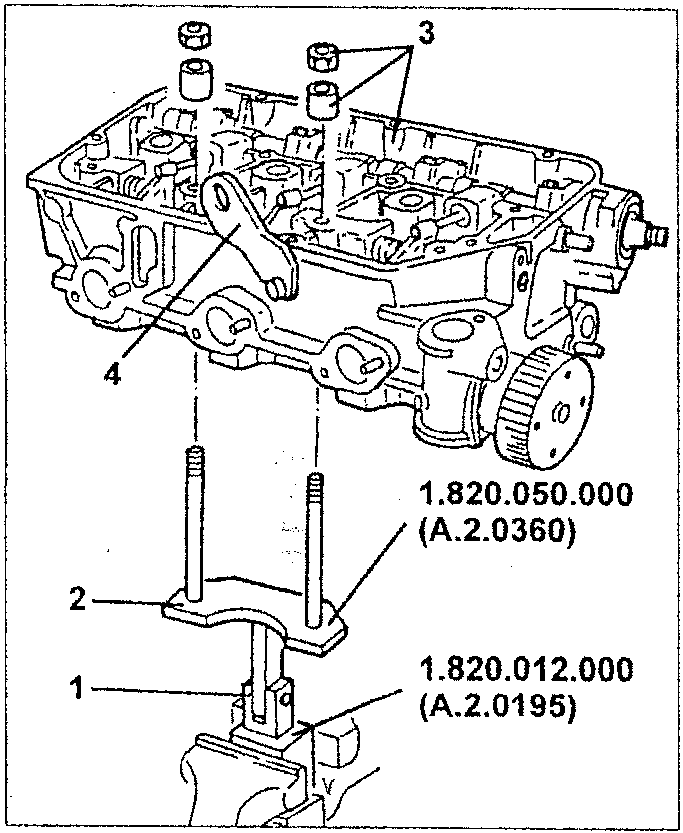

1. Fasten adjustable support no. 1.820.012.000 (A.2.0195) in a vice.
2. Fit fork no. 1.820.050.000 (A.2.0360) on the adjustable support.
3. Fit the cylinder head on the fork studs and lock it with two suitable shims and two nuts.
4. Loosen the fastening screw and remove the engine lifting rod.

OIL PUMP PULLEY REMOVAL

(Specific for right-hand cylinder head)

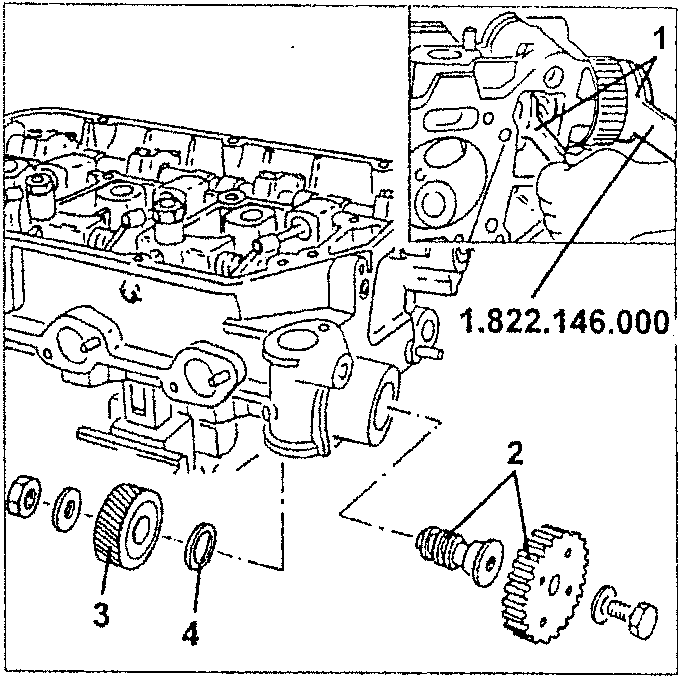

1. Use tool no. 1.822.148.000 to loosen the oil pump pulley fastening bolt.
2. Loosen the oil pump pulley and respective shaft.
3. Take the gear wheel.
4. Take the shim.
