Removing the thermostat unit

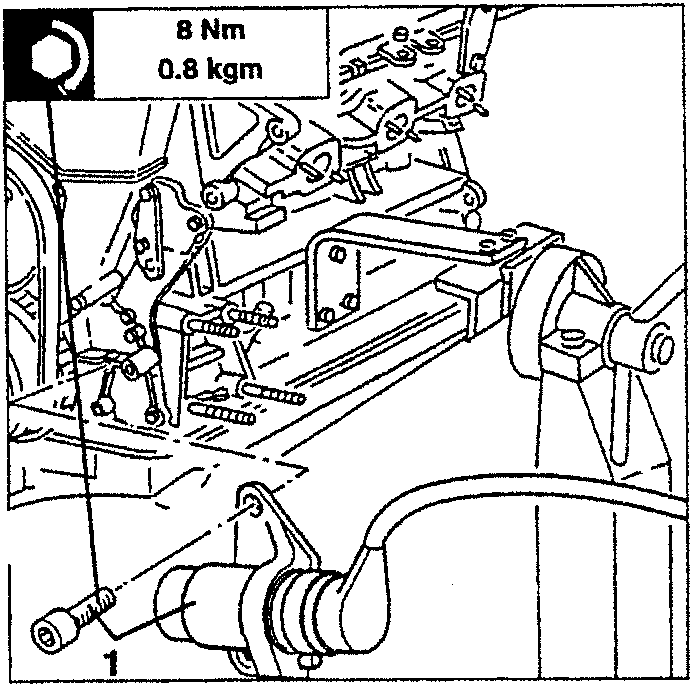

1. Slacken the fastening screws and remove the rpm and timing sensor complete with support bracket.

8 Nm
0.8 kgm

REMOVING THE THERMOSTAT UNIT

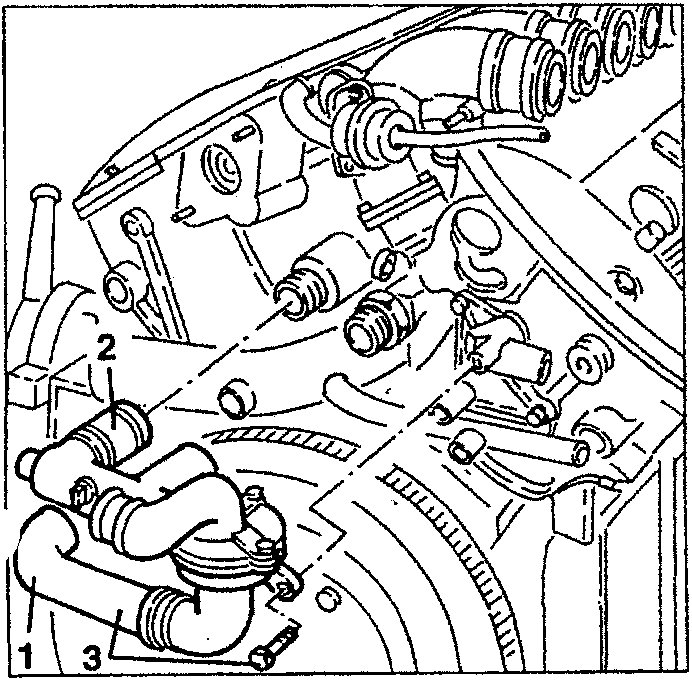

1. Disconnect the thermostatic cup fluid outlet sleeve from the coolant return manifold to the pump.
2. Slacken the clamp fastening the left-hand cylinder head coupling sleeve to the thermostat unit.
3. Slacken the two fastening screws and remove the complete thermostat unit.

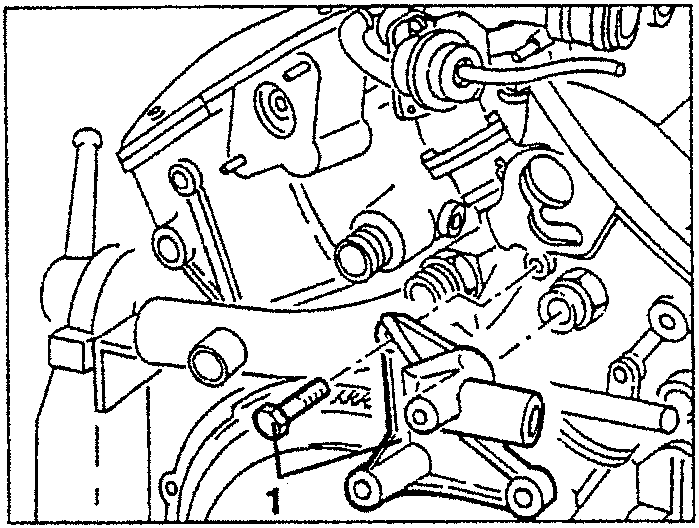

1. Slacken the fastening screws and remove the union for coolant delivery to the throttle body and to the heater of the climate control system.

REMOVING THE FUEL DISTRIBUTOR MANIFOLD

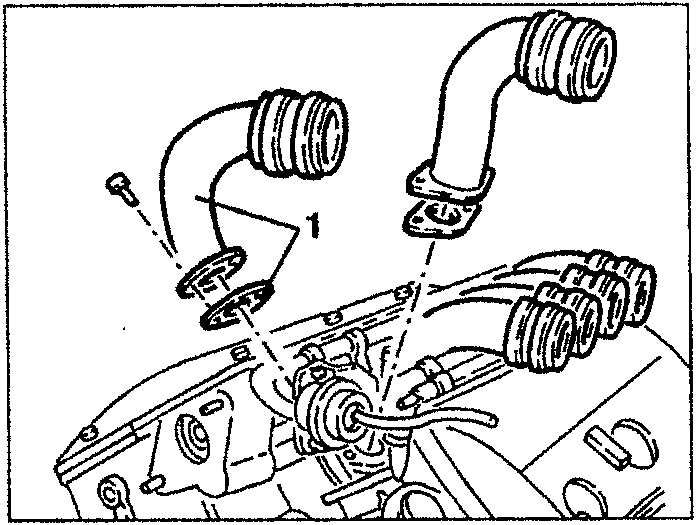

1. Slacken the fastening screws and remove the air intake ducts complete with seals.

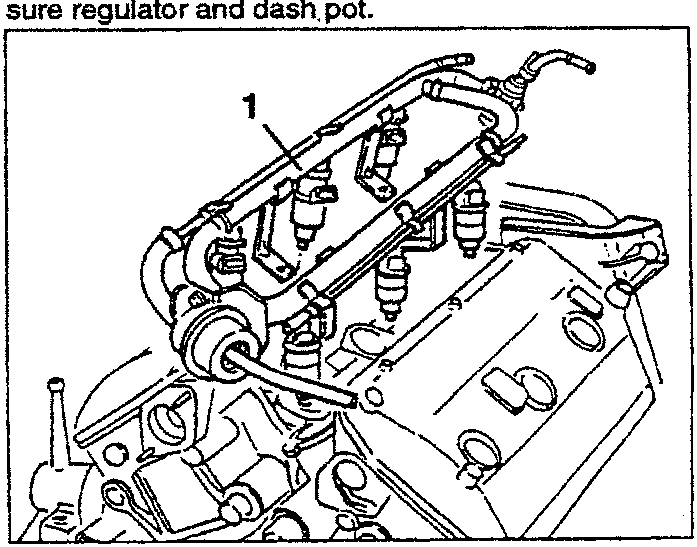

1. Slacken the fastening screws and remove the fuel distributor manifold complete with injectors, fuel pressure regulator and dash pot.
