Engine overhaul: 2.0 V6 Turbo (AR16202)Valve disassembly

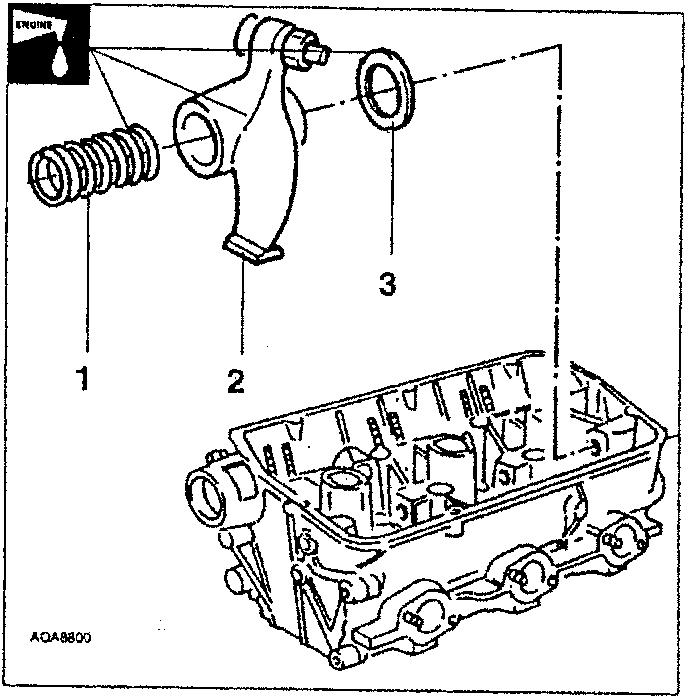

  1. Remove the springs
  2. Remove the rocker arms
  3. Remove the washers
Valve disassembly diagram showing springs, rocker arms, and washers

VALVE DISASSEMBLY

— Operate on one cylinder

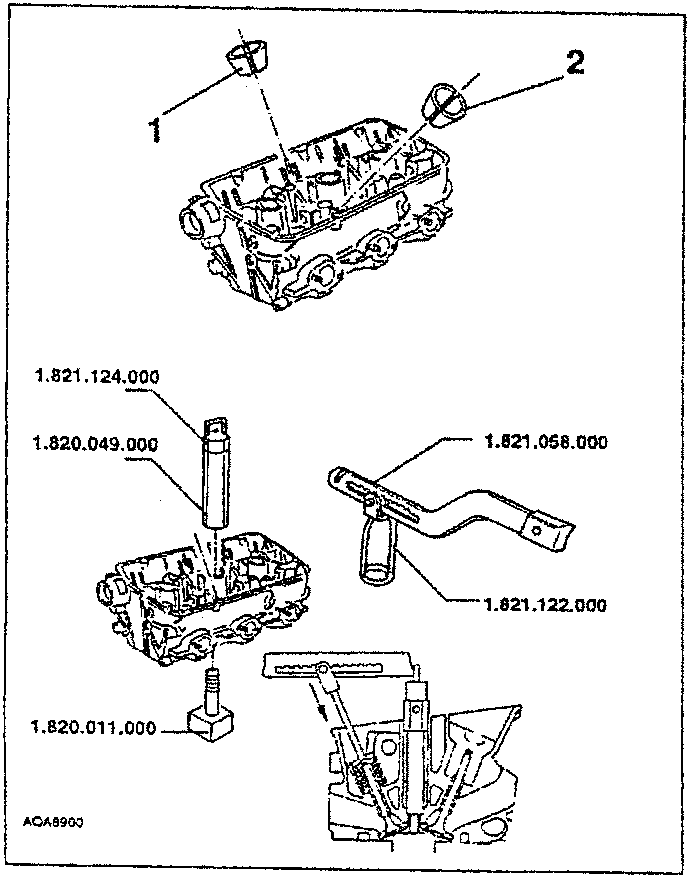

  1. By means of the equipment shown in the figure, remove the exhaust-side cotters
  2. Remove the intake-side cotters by acting in the same way
Valve disassembly tools and parts diagram

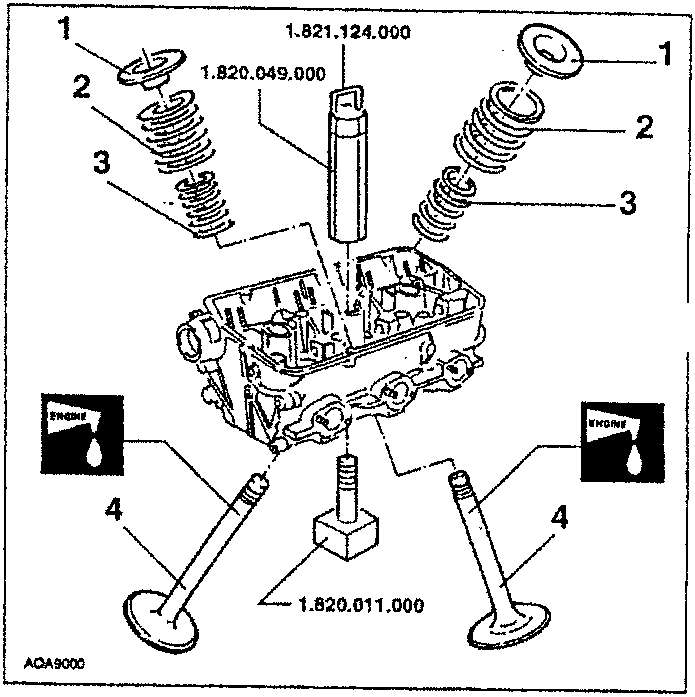

  1. Remove the upper caps
  2. Remove the outer springs
  3. Remove the inner springs

— Remove tools 1.820.049.000 by means of 1.821.124.000 and 1.820.011.000

  1. Withdraw the valve pair (intake and exhaust)

— By using the same tools and carrying out the same procedure, act on the other cylinders

Valve disassembly diagram showing upper caps, outer springs, inner springs, and valve pair

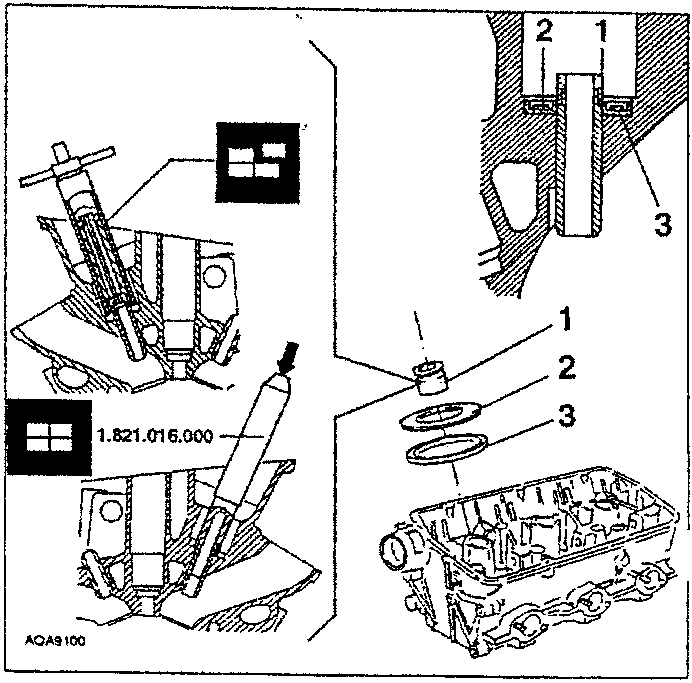

  1. By means of extractor 1.821.018.000, remove the grommets (On assembling, make use of inserter 1.821.016.000)
  2. Remove the stop rings
  3. Remove the lower caps
Lower cap removal diagram showing grommets, stop rings, and lower caps
