Engine overhaul: 2.0 V6 Turbo (AR16202)Removing the alternator
  1. Slacken the fastening nuts and remove the front engine support.

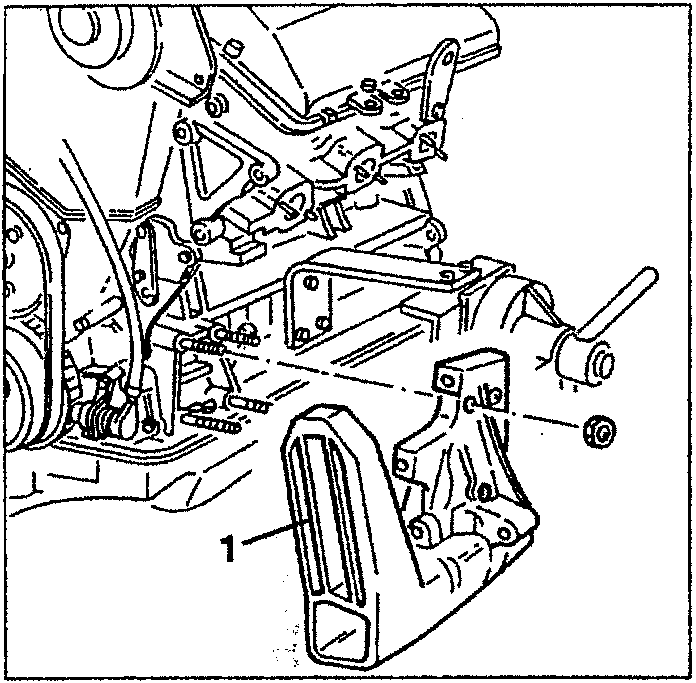

Front engine support removal

REMOVING THE ALTERNATOR

  1. Slacken the two bolts fastening the alternator to the support brackets.
  2. Slacken the locknut, slacken the screw of the micrometric tensioner, then prise and remove the alternator - water pump drive belt.
  3. Completely unscrew the two bolts slackened previously and remove the alternator.

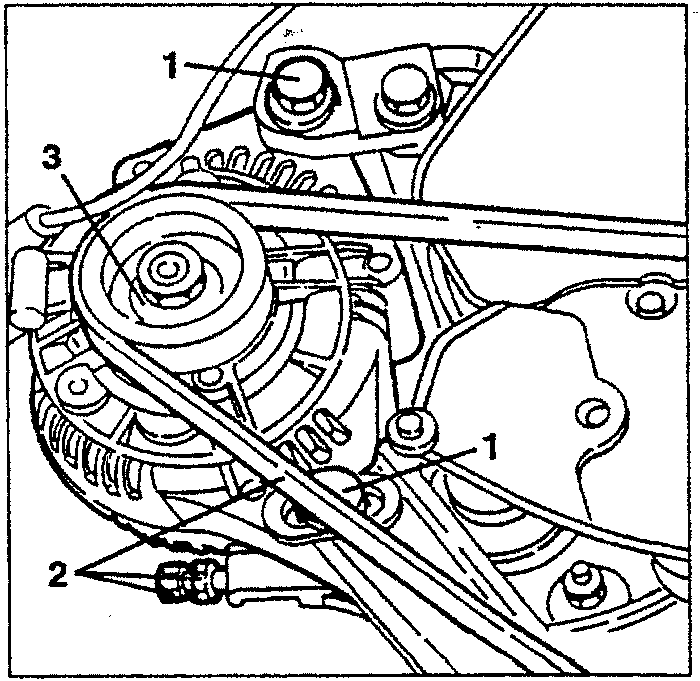

Alternator removal with belt
  1. Remove the upper alternator support bracket.
  2. Remove the O-Ring.

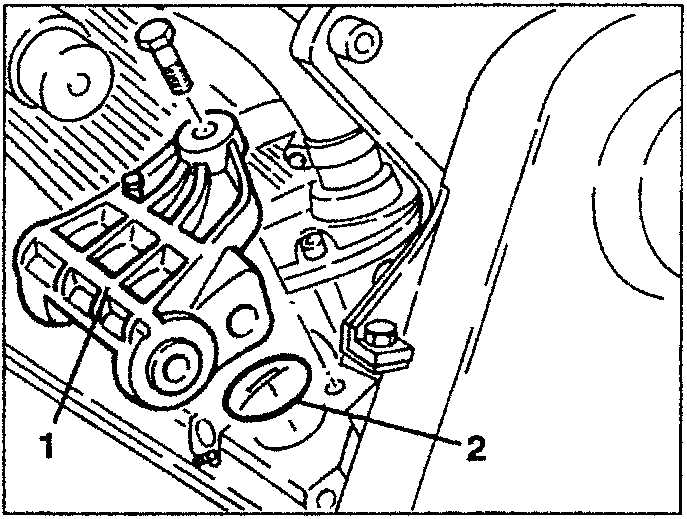

Rear alternator support bracket
  1. Slacken the fastening nuts and remove the lower rear alternator support bracket.

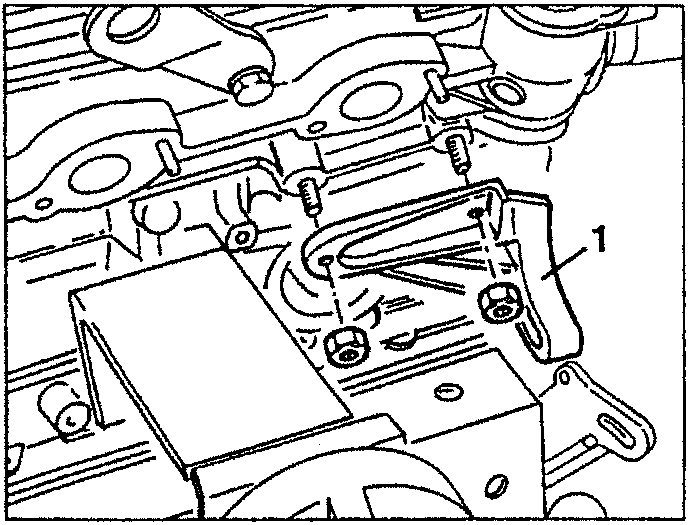

Lower front alternator support bracket
  1. Slacken the fastening screws and remove the lower front alternator support bracket.

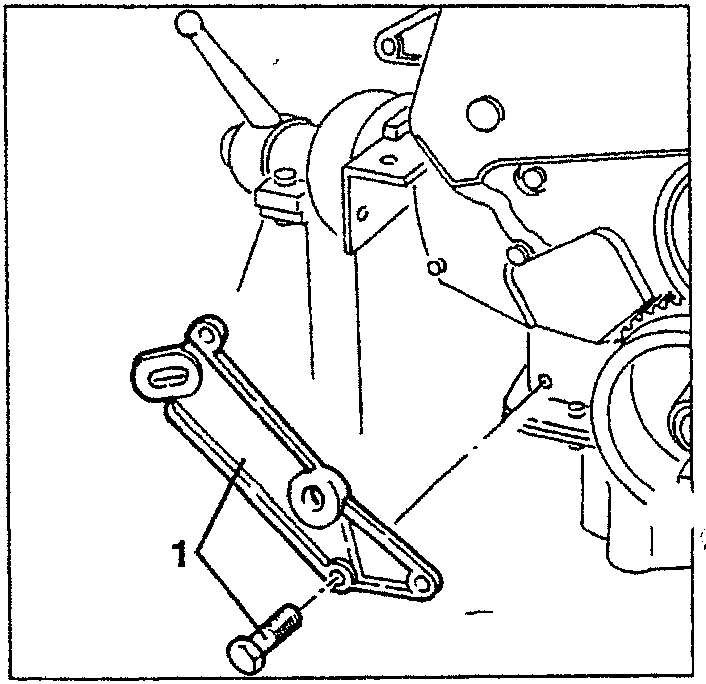

Lower front alternator support bracket
