Engine overhaul: 3.0 V6 24V (AR16102)Cylinder head removal · page 2 of 2

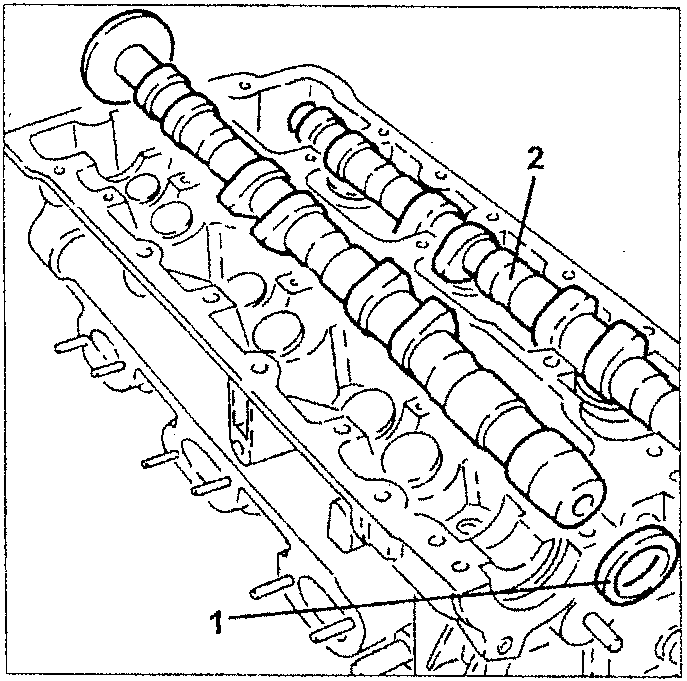

1. Remove the camshaft oil seals.
   2. Remove the camshafts.

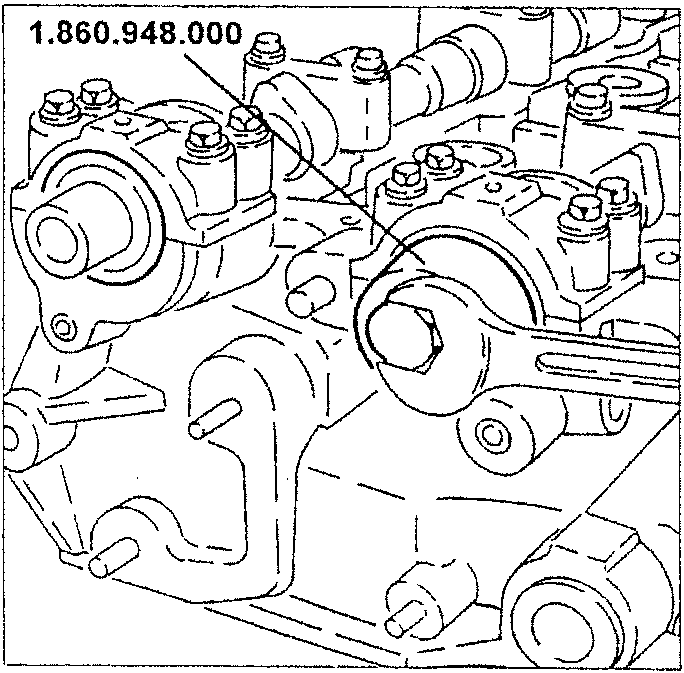

When refitting, insert new camshaft oil seals with tool no. 1.860.948.000.

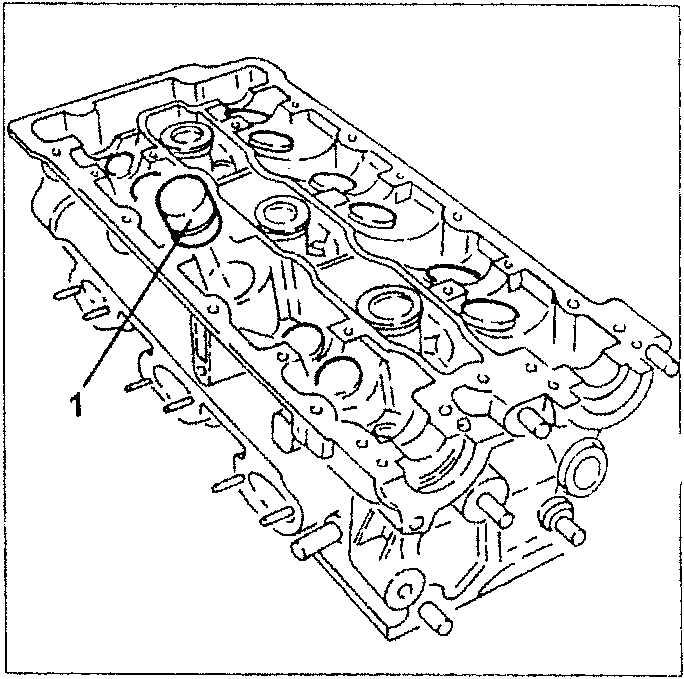

1. Remove the hydraulic tappets.
   IMPORTANT: Place the tappets in a suitable container according to the removal sequence if they will be refitted.

1. Remove the fastening screws and remove the air intake manifold.
   - Remove the respective seal.
