BodyworkBody shell painting cycle during production

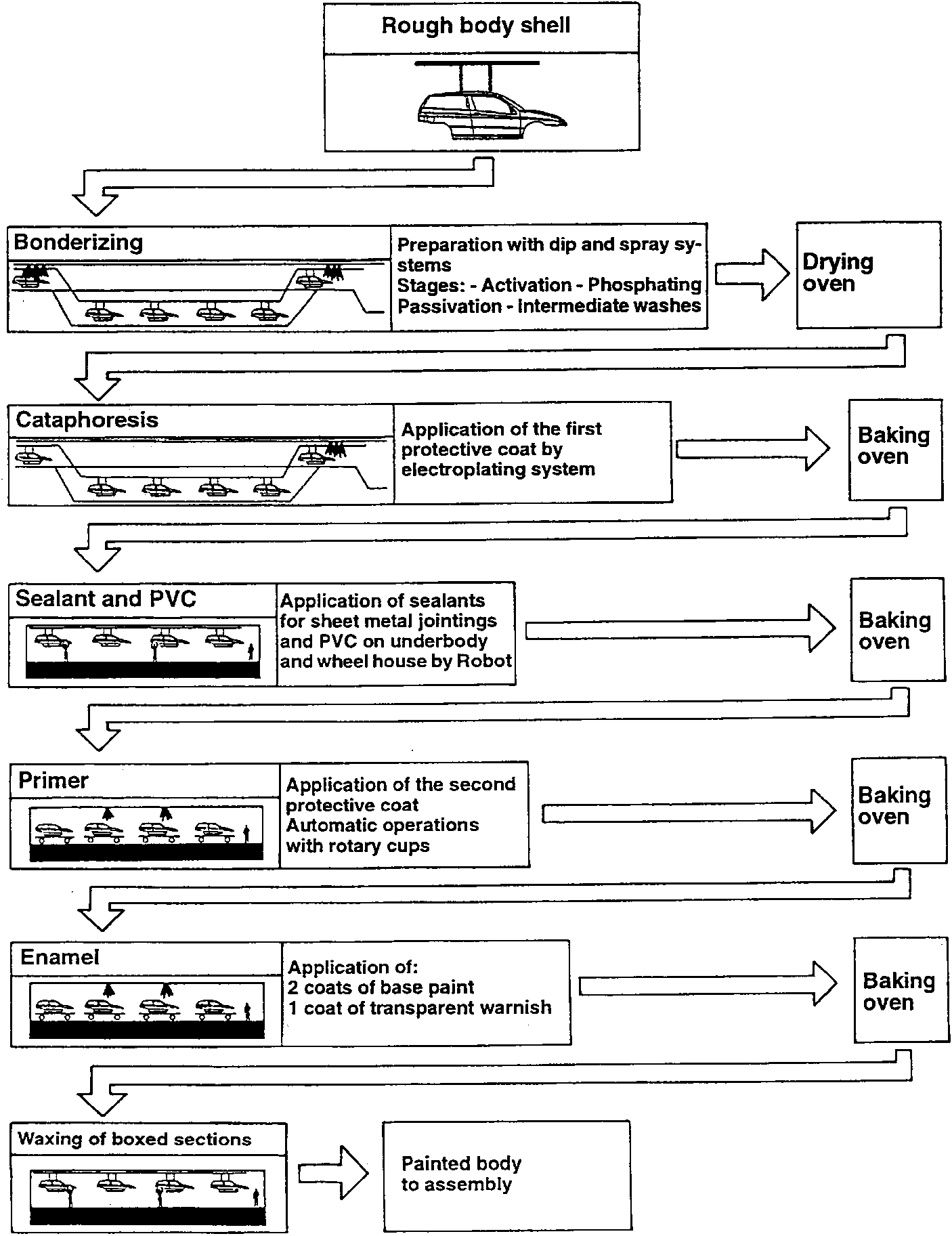

BODY SHELL PAINTING CYCLE DURING PRODUCTION
- Rough body shell
- Bonderizing - Preparation with dip and spray systems. Stages: - Activation - Phosphating - Passivation - Intermediate washes. Then: Drying oven
- Cataphoresis - Application of the first protective coat by electroplating system. Then: Baking oven
- Sealant and PVC - Application of sealants for sheet metal jointings and PVC on underbody and wheel house by Robot. Then: Baking oven
- Primer - Application of the second protective coat. Automatic operations with rotary cups. Then: Baking oven
- Enamel - Application of: 2 coats of base paint, 1 coat of transparent warnish. Then: Baking oven
- Waxing of boxed sections. Then: Painted body to assembly
