CHART SHOWING APPLICATION OF SOUND-PROOFING PANELS

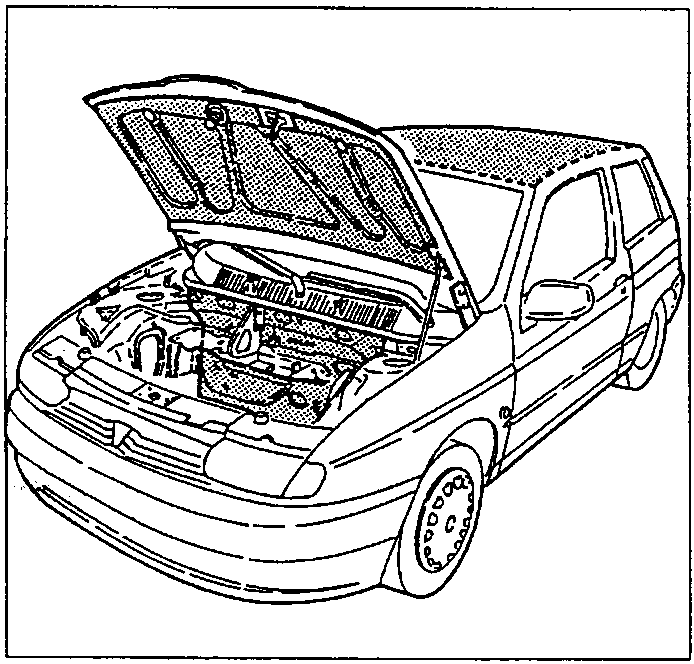

Front of the car with the bonnet open showing the sound-absorbing panels
Sound-absorbing

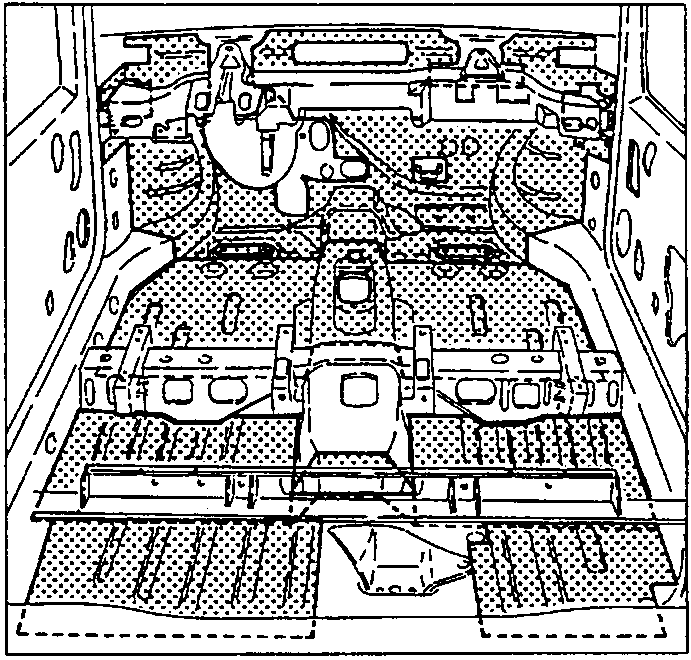

Floor of the body seen from above showing the sound-proofing panels
Sound-proofing

CHART SHOWING NATURE OF PLASTIC PARTS

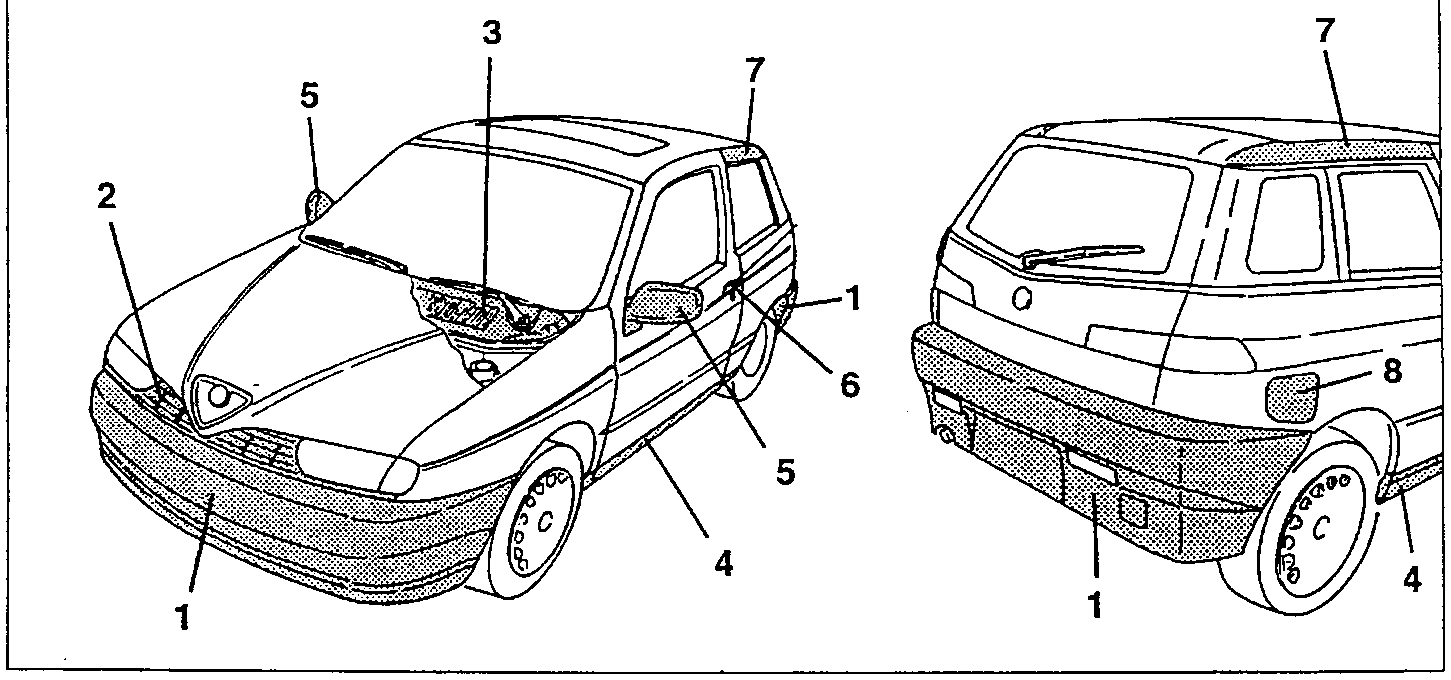

Front and rear views of the car with the plastic parts numbered 1 to 8
  1. Front and rear bumbers - polypropylene
  2. Radiator grille - thermohardened polyester
  3. Grille under windscreen (Noryl)
  4. Shaft cover - polypropylene
  5. Door mirror - polycarbonate - ABS
  6. Door handles - polyethylene - thermoplastic polyester
  7. Roof rail cover - thermohardened polyester
  8. Fuel flap - thermohardened polyester
