Removal of components

REMOVAL OF COMPONENTS

a. Ensure that all the damaged parts have been identified by measuring the main squaring values. See "Body Squaring".

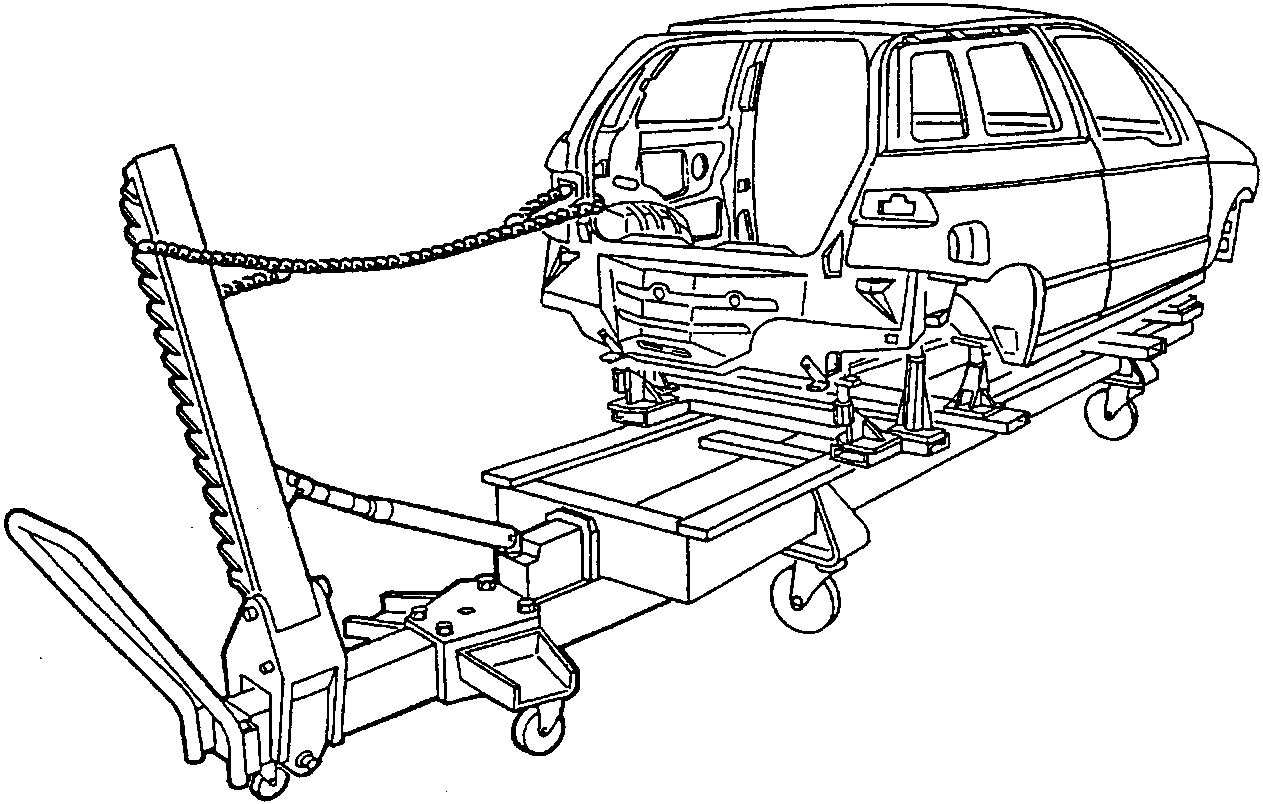

b. Pull the body using a tool which is suitable to the extent of the damage and apply traction in the direction opposite to the impact. Removed parts can be re-used providing they meet the requirements listed in "Body Squaring".

WARNING:
Pay special attention when securing tension chains to the body in order to avoid accidental release during the operations.

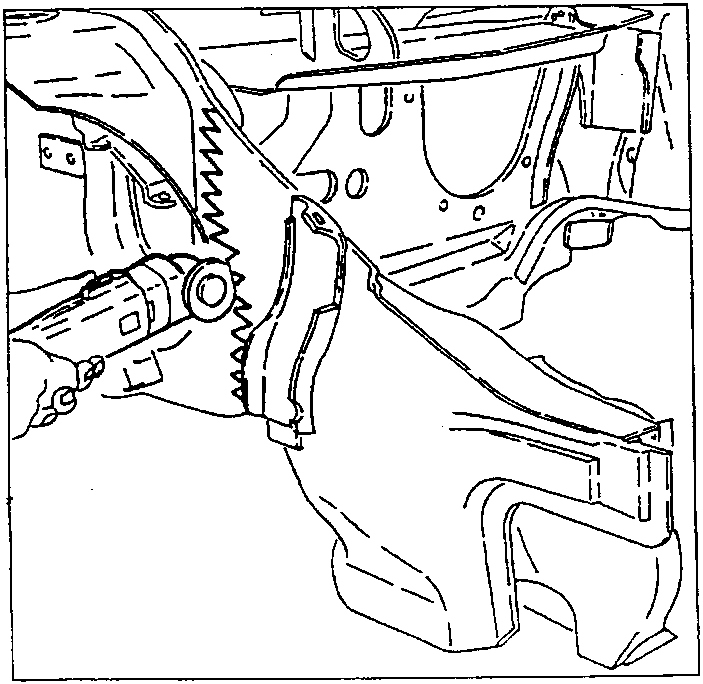

c. Cut away the damaged parts
Tools required:

• Pneumatic saw
• Pneumatic chisel

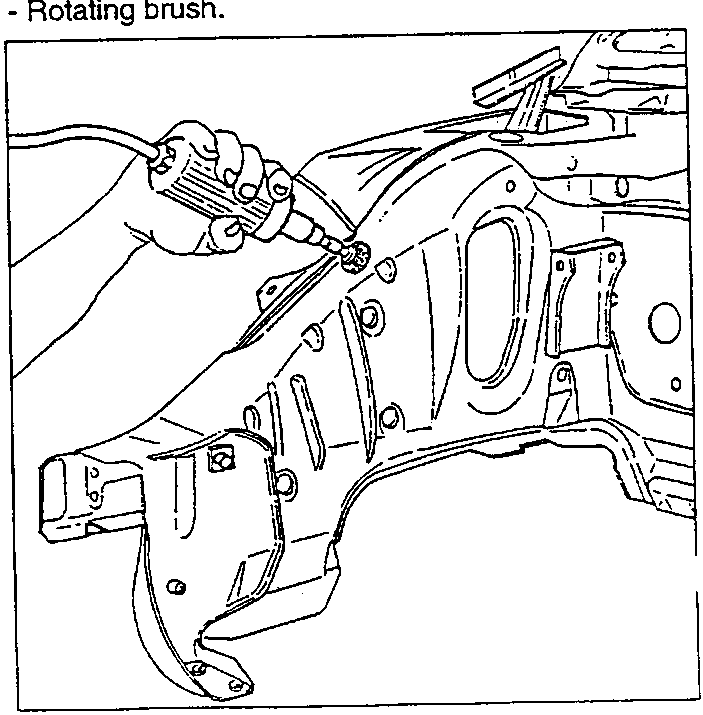

d. If the spot welds are not visible remove the paint with a wire brush.
Tools required:

• Rotating brush.
