R.R. FRONT WING

Operation 7210E18 · External parts

Removing

Check if any of the connected parts are deformed by checking body alignment dimensions. Use appropriate measurement tools (reference rigs, templates or gauges).

Straighten the body if necessary.

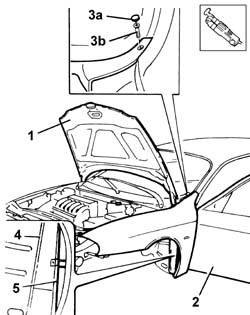

1. Lift the bonnet lid.

2. Open the front door.

3. Prise up the cover (3a), then unscrew bolt (3b).

4. Remove the PVC treatment between front pillar and wing using a vibrating cutter and appropriate blade.

5. Heat and then use an appropriate blade to cut the sealant between front pillar and wing.

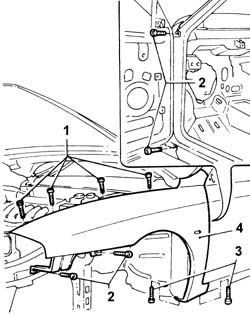

1. Unscrew the upper wing retaining bolts.

2. Unscrew the wing side retaining bolts.

3. Unscrew the lower wing retaining bolts.

4. Remove the wing from the car.

Refitting

1. Clean off residues of old sealant and PVC using a vibrating cutter and appropriate blade.

2. Position the wing (2a) on the car and secure provisionally using the retaining bolts (2b).

3. Lower the bonnet lid (3a) and close the front door (3b). Check the door is aligned and that the gap around the edge is even.

1. Paint the wing in accordance with the specified procedure.

1. Position the wing on the car and screw in the retaining bolts without tightening.

2. Align the wing and check the edges between wing and door (2a) and bonnet lid (2b).

3. Permitted wing adjustment movements are indicated by arrows.

4. Fully tighten the wing retaining bolts.

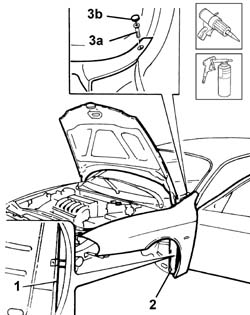

1. Apply sealant to the area indicated (use the specified cycle).

2. Reapply PVC treatment to the areas indicated (use the specified cycle).

3. Tighten the bolt (3a) and fasten lid (3b).
