Rear spoiler

Operation 7210G76 · Accessory parts

GTA

Removing

1. Using a cutter, cut the bead of sealant along the entire perimeter (1a) of the spoiler (1b), taking care not to nick the vehicle paintwork. Also cut the sealant sticking the supports (1c) to the rearscreen, taking care not to nick the surface of the actual rearscreen.

2. Keep the spoiler.

Refitting

Check that the spoiler is undamaged.

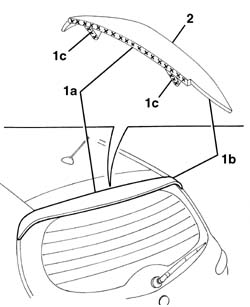

1. Clean the surfaces (1a) and (1b) of the vehicle affected by the sticking of the spoiler, removing any residues of adhesive; then degrease the surfaces using heptane. Apply activating product in the area (1b) of the rearscreen, then remove it immediately using a paper or suitable cloth; note that the immediate removal is vital to promote good adhesion.

2. Test fit the spoiler.

3. Have suitable equipment ready for fitting the spoiler on the vehicle after the sticking process described below.

1. Clean the surfaces (1a) and (1b) of the spoiler where the adhesive is to be applied and degrease with heptane. Apply primer to the surfaces (1a) and (1b) using the minimum possible thickness (20 to 50 micron mm is the recommended amount).

1. Wait for at least three minutes, but no longer than 24 hours (the recommended time is less than 1 hour), then apply the sealant bead (hot, following the instructions on the product packaging).

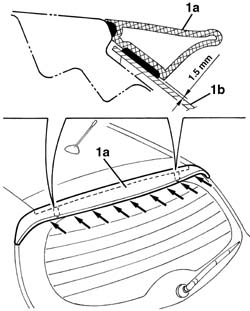

1. Place the spoiler (1a) in position and fit it using the equipment.

the recommended distance of 1.5 mm between the moulding (1a) and the rearscreen (1b) should be maintained.

If necessary, clean any residues of sealant from the trim and the bodywork.

Wait for at least 48 hours before moving the vehicle after the sticking.
