R.R. REAR BUMPER

Operation 7210E66 · External parts

Removing

- 5540A94 l/h or r/h number plate light (one) - r+r (left and right sides)

- 7055A30 l/h or r/h side rubbing strip (one) - r+r (left and right sides)

- 7055B43 REAR WHEEL ARCH liner (one), left or right - R.R. (left and right sides)

Open the tailgate.

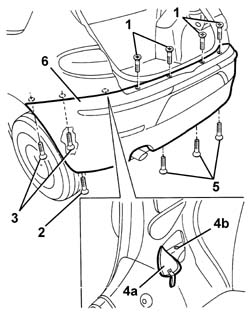

1. Undo the upper central bumper bolts.

Raise the car at the rear

2. Working from both sides of the car, undo the outer side bumper bolts.

3. Undo the top inner side bolts.

4. Open access flap (4a) and undo bolts (4b).

5. Undo the lower bolts fixing the bumper.

6. Remove the bumper.

1. Prise out the buffers if necessary.

Refitting

Check that the rear bumper is undamaged.

Refit the buffers if they were removed.

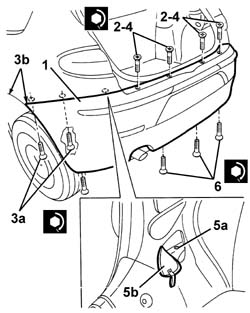

1. Fit the bumper.

2. Screw in the upper bumer bolts without tightening.

3. Tighten side bolts (3a), ensuring the bumpers are aligned with the wing at the side (3b).

4. Tighten the top central bumper retaining bolts.

5. Tighten the lower bolts fixing the bumper.

- 7055B43 REAR WHEEL ARCH liner (one), left or right - R.R. (left and right sides)

- 5540A94 l/h or r/h number plate light (one) - r+r (left and right sides)
